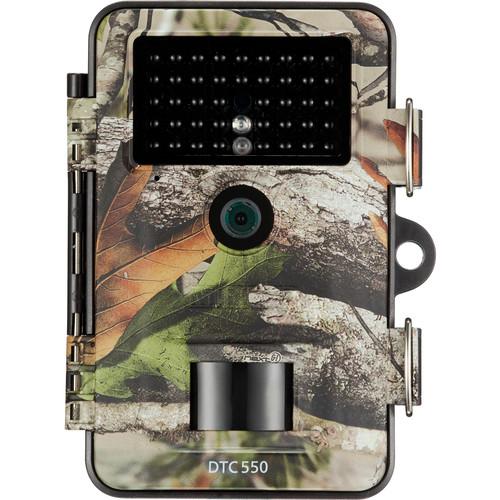

User Manual for Minox DTC 550 Camo Click to enlarge the picture
Contents of the user manual for the Minox DTC 550 Camo
- Product category: Trail/Wildlife Cameras Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Trail/Wildlife Cameras
 |
User manual for the Minox DTC 550 Camo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

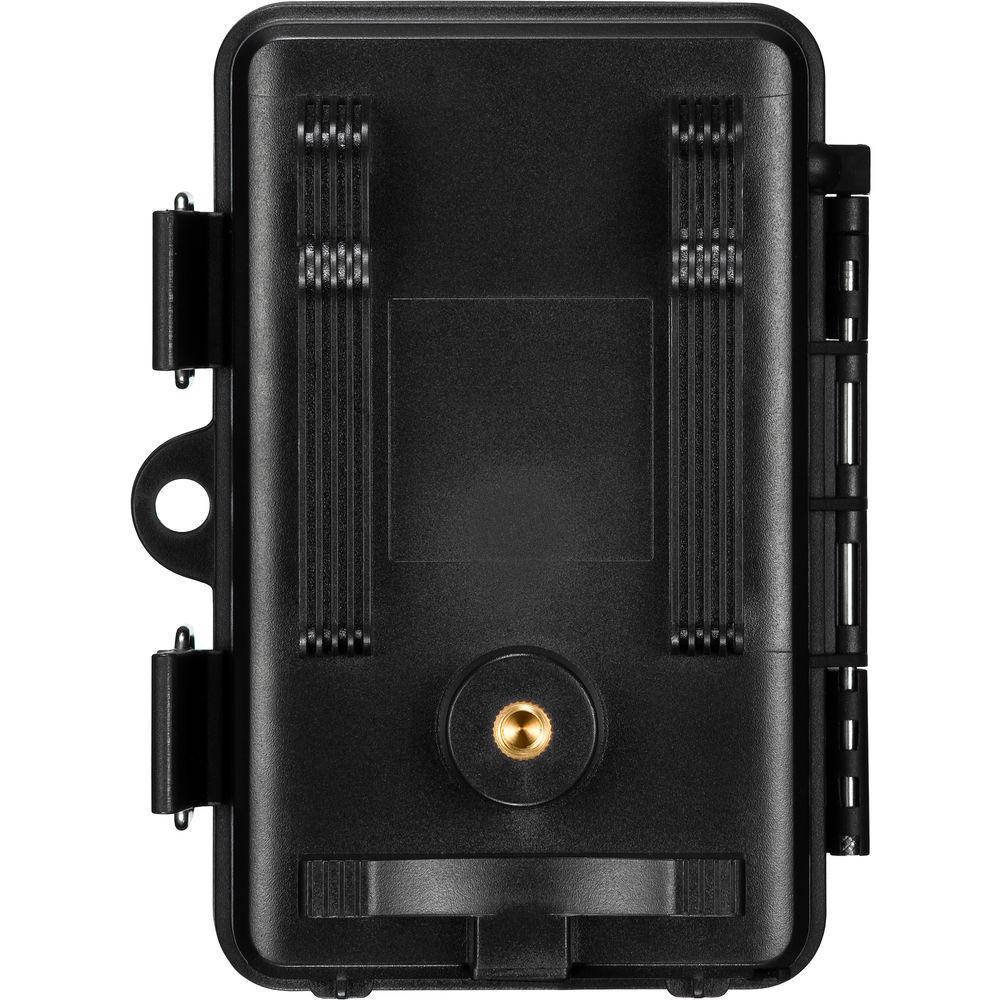

Product description See what (or who) is on the move in your favorite patch of woods with the DTC 550 Trail Camera from Minox, offered here in camo. Trigger time is fast, taking a picture only 0.4 second after the passive infrared (PIR) motion sensor is tripped. In addition to stills with a native resolution of 5MP (8MP and 12MP interpolated), this camera can take HD video in 720p or 1080p. A burst mode lets you capture up to nine images per triggering event to give your specimen's direction of travel. An invisible infrared flash with a range of 49' captures images at night — without spooking game. Images and video can be reviewed, and settings are easily adjusted using the 2.4" color screen. Each picture is stamped with the time, date, and moon phase information for patterning movements. The DTC 550 accepts SD/SDHC memory cards up to 32GB, which are available separately. A 1/4"-20 socket is built-in so you may use it with a tripod if no other suitable mounting options are available. Included in the package is a USB cable for connection to a computer, as well as an adjustable strap for mounting the camera to a tree. Water and weather-resistant construction ensures durability over extended periods of outdoor use. It runs on eight user-supplied AA batteries. - 5MP Resolution
- 5MP sensor for native images up to 5MP, interpolated resolutions up to 12MP
- Motion Sensor
- Passive infrared motion-activated sensor with rapid 0.4-second trigger speed ensures that shots are not missed. This sensor detects the changes in temperature that occur when subjects move, and captures images in response.
- Video Recording
- HD video recording in 1280 x 720p HD (30 fps), 1920 x 1080p (15fps), 848 x 480 (30fps), or 720 x 480 VGA (30fps); 10-180 second clips

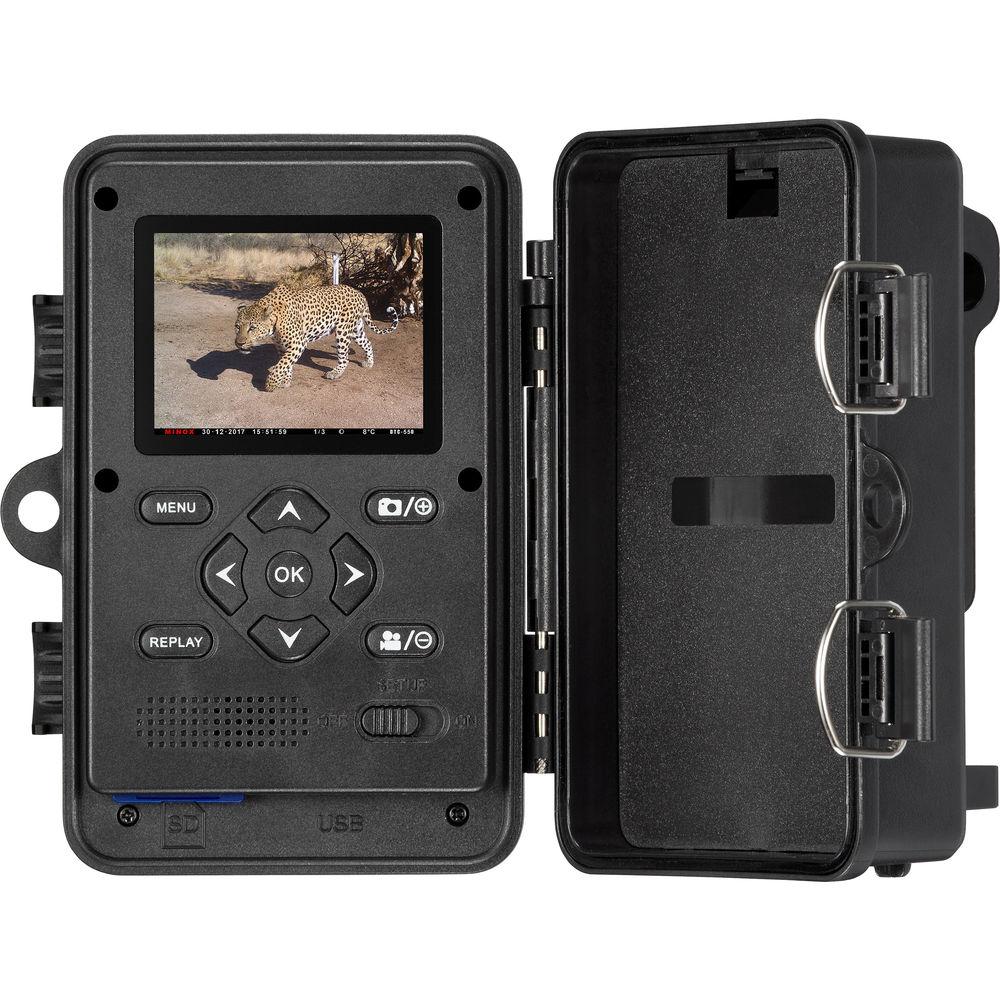

- Color Screen
- Equipped with a 2.4" TFT color monitor
- Flash
- Invisible infrared flash with a range of 49'
- Info Stamp
- Stamps each image with date, time, and moon phase to aid in patterning movements
- Memory
- Accepts SD/SDHC memory cards up to 32GB, which are available separately
- Power
- Runs on 8 AA batteries, which also must be purchased separately
- Durability
- Water / weather-resistant to withstand the elements over extended periods of outdoor use
In the Box Minox DTC 550 Camo Mounting Strap Wall Mount USB Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox DTC 550 Camo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox DTC 550 Specs | Camera Type | Trail/Wildlife | | | | Image Resolution | 5 MP | | Additional Resolutions | 2 MP x
0.5 MP x
12 MP x (Interpolated)
8 MP x (Interpolated) | | Focus Type | Auto | | Built-In Flash | IR LEDs | | Effective Flash Range | 49' / 14.9 m | | | | Sensor Type | Passive Infrared (PIR) | | Trigger Speed | 0.4 Seconds | | | | Burst Capability | 1 Image per Trigger (Min)
9 Images per Trigger (Max) | | Interval Recording | None | | Exposure Modes | Auto | | White Balance | Auto | | | | Audio Recording | No | | Video Recording | Yes | | Video Format | 1280 x 720p at 30 fps
1920 x 1080p at 15 fps
848 x 480p at 30 fps
720 x 480p at 30 fps | | Video Clip Length | 10 Seconds (Min)
180 Seconds (Max) | | | | Memory Card Type | SDHC (Up to 32 GB) | | Battery Type | 8 x AA | | External Power Source Capable | Yes, 12 VDC (Not Included) | | Display | Yes, 2.4" / 6.1 cm Color | | Dimensions | 5.4 x 4 x 3" / 13.5 x 10.1 x 7 cm | | Weight | 10.4 oz / 295.0 g | | | | Package Weight | 1.345 lb | | Box Dimensions (LxWxH) | 8.65 x 5.6 x 3.45" |
