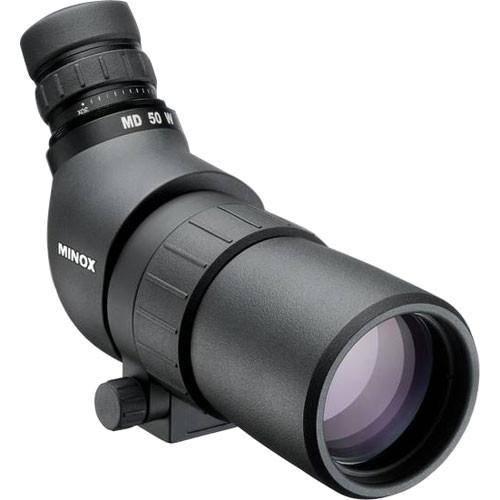

User Manual for Minox MD 50 W 16-30x50 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Minox MD 50 W 16-30x50 Spotting
- Product category: Spotting Scopes Minox
- Brand: Minox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Minox Spotting Scopes
 |
User manual for the Minox MD 50 W 16-30x50 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Minox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Minox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Minox product will considerably shorten its lifespan!
|

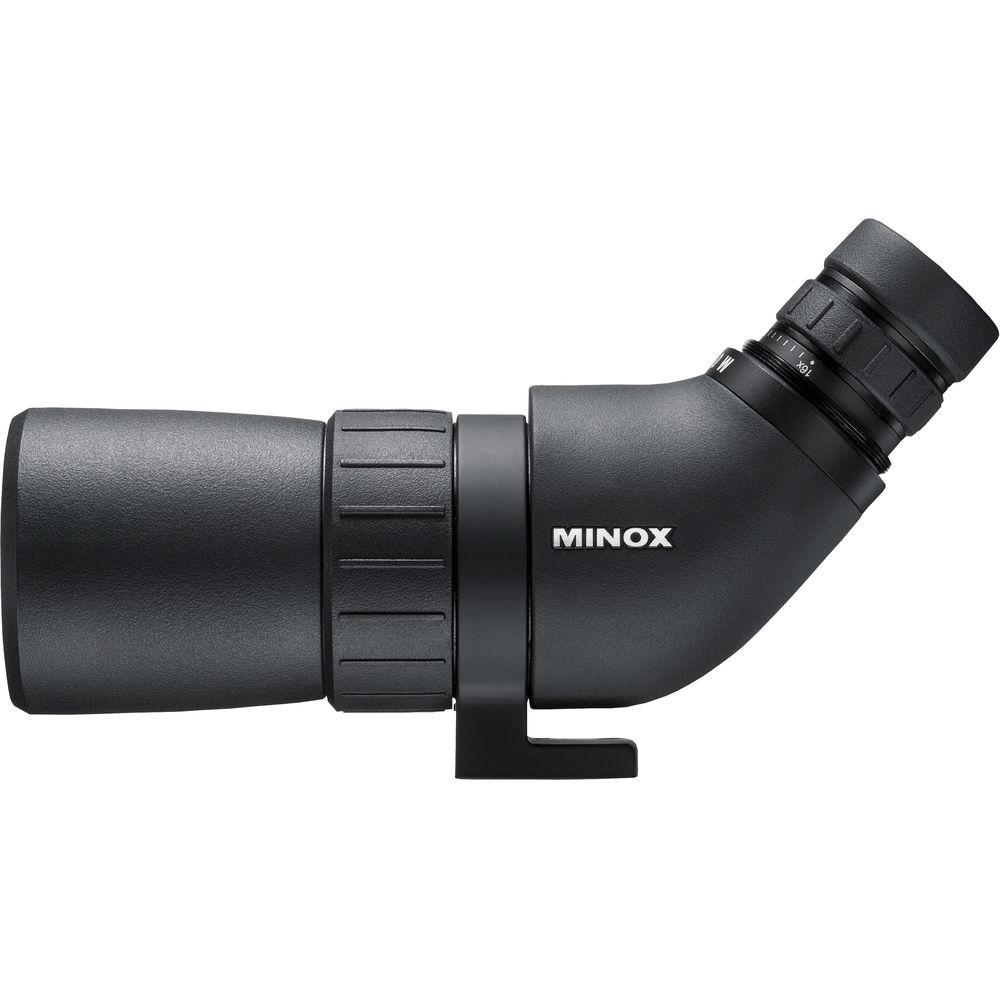

Product description A Guide to Birding with Spotting Scopes Read More The Minox MD 50 W 16-30x50 Spotting Scope is a travel-friendly, compact, yet high-quality spotting scope. Minox employs a certain set of company values—compact design, quality, and precision mechanics are consistently applied in every product.The MD 50 W is particularly ideal for the bird-watcher who prefers a spotting scope that is compact enough to carry along in luggage or a backpack when traveling. In this case, this spotting scope can, under certain conditions, be an excellent supplement to binoculars, in particular if a stronger magnification than available binoculars is required. With the 16x magnification of the variable eyepiece the compact MD 50 W can at times be handheld, although for optimum use a tripod is always recommended.A sturdy yet lightweight body protects the precision mechanics and optics against damage in normal use. Rubber armoring ensures a good grip and provides added protection as it is also dust and waterproof to a depth of 16 feet. - The angled design of the scope provides a more relaxed stance during viewing, and with a swivel tripod connection the telescope can be pivoted when on a tripod.
- Minox multi-layer M* coating results in high light transmission as well as brilliance, high contrast, and natural color rendition.
- Close-focus capability of 16.4 feet.
- Nitrogen filling prevents misting up of the optical system on the inside, even under extreme temperature fluctuations.
In the Box Minox MD 50 W 16-30x50 Spotting Scope (Angled Viewing) View Through Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Minox MD 50 W 16-30x50 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMinox MD 50 W Specs | | | Magnification | 16 to 30x | | Objective Lens Diameter | 50 mm | | Angle of View | 16x: 2.7° (Actual)
30x: 1.9° (Actual) | | Field of View | 16x: 142.0' @ 1000 yd / 47.0 m @ 1000 m
30x: 100.0' @ 1000 yd / 33.0 m @ 1000 m | | Minimum Focus Distance | 16.4' / 5.0 m | | Exit Pupil Diameter | 16x: 3.1 mm
30x: 1.6 mm | | Eye Relief | 15.0 to 11.0 mm | | | | Water Resistance | Waterproof | | | | Dimensions | L: 8.4 x H: 4.8 x W: 2.5" / L: 21.3 x H: 12.3 x W: 6.3 cm | | Weight | 1.3 lb / 615.0 g | | | | Package Weight | 2.09 lb | | Box Dimensions (LxWxH) | 10.55 x 5.95 x 3.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
