Minrray UV510A Series 2MP 20x Video Conference Camera Minrray UV510A Series 2MP 20x Video Conference Camera
User manual for the Minrray UV510A Series 2MP 20x Video contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Minrray product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Minrray user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Minrray product will considerably shorten its lifespan!

Product description

The UV510A Series 2MP 20x Video Conference Camera from Minrray features a 1/2.8" CMOS sensor and 5.5-110mm varifocal lens with 20x zoom to capture videos at a maximum resolution of 1920 x 1080. It comes with HDMI, SDI, Ethernet, RS-232, RS-485, and audio-in connectivity. The camera uses a step drive motor mechanism and motor drive controller for smooth and noiseless PTZ operation. In addition, it supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats.
  • 1/2.8" CMOS sensor offers a maximum resolution of 1920 x 1080
  • 5.5-110mm varifocal lens offers 20x optical zoom and viewing angle range from 3.3 to 54.7°
  • Auto focus for quick and accurate focusing
  • 2D/3D noise reduction
  • SDI supports transmission distances up to 328'
  • Supports 8, 16, 32, 44,1, 48 kHz sampling frequencies
  • AAC, MP3, and PCM audio coding
  • Supports ONVIF, GB/T28181, RTSP, and RTMP protocols
  • Supports RTMP push mode for linking streaming media server (Wowza, FMS), RTP multicast mode, and network full command VISCA control protocol
  • RS-485 and RS-232 ports for supporting cascade function
  • Supports VISCA, PELCO-D, PELCO-P, and Automatic Identification protocols
  • Low-power sleep/wake function reduce power consumption to 400mW
  • Support 255 preset positions (remote controller is set to 10 preset positions)
  • Compatible with both IR remote controller and wireless remote controller
  • Suitable for tele-education, lecture capture, webcasting, videoconferencing, tele-training, tele-medicine applications and interrogation and emergency command systems
In the Box Minrray UV510A Series 2MP 20x Video Conference Camera
  • 12 VDC, 1.5A Power Supply
  • RS-232 Control Line Cable
  • Remote Controller
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the Minrray UV510A Series 2MP 20x Video Conference Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    Minrray UV510A Specs

    Sensor 1/2.8" HD CMOS
    Effective Pixels 2.07 MP, 16:9
    Video Formats 1080p 60/50/30/25/59.94/29.97 Hz
    1080i 60/50/59.94 Hz
    720p 60/50/30/25/59.94/29.97 Hz
    Focal Length 5.5-110mm
    Optical Zoom 20x
    Field of View 3.3° (tele) to 54.7° (wide)
    Aperture F/1.6-3.5, auto
    Digital Zoom 10x
    Minimum Illumination 0.5 lux (f/1.8, AGC ON)
    DNR 2D and 3D DNR
    White Balance Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    Focus Auto/Manual/A key focus
    Electronic Shutter Manual
    WDR Mode OFF/ Dynamic level adjustment
    Video Adjustment Brightness, color, saturation, contrast, sharpness, B&W mode, gamma curve
    SNR >55 dB

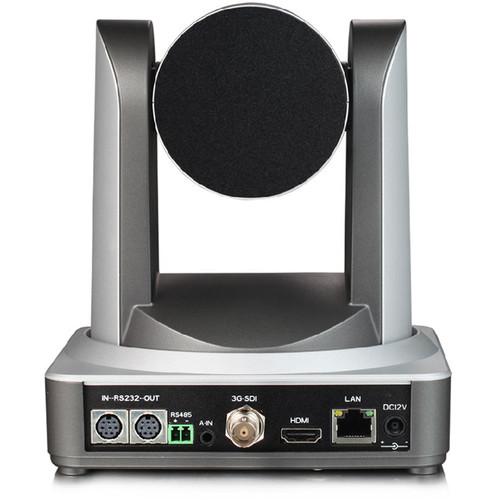

    Video Interfaces HDMI, SDI, LAN, RS-232 (Ring through RS-232 output), RS-485, A-IN
    Video Output HDMI, SDI, LAN, USB 3.0, USB 2.0
    Stream Type Double stream output
    Video Compression Format H.264, H.265
    Control Protocol VISCA/Pelco-D/Pelco-P
    Baud Rate: 115200/9600/4800/2400 bps
    Audio Input A-IN:Double track 3.5 mm linear input
    Audio Compression Format AAC/MP3/G.711A
    Network Interface 100M IP port (100Base-TX)
    Network Protocols RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol
    Supports remote upgrade, reboot, and reset
    Power Outlets HEC3800 outlet (12 VDC)
    Power Adapter Input: 110 to 220 VAC
    Output: 12 VDC, 1.5 A
    Input Voltage 12 VDC


    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 34 owners. Add your rating and experience with the product.


    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Minrray UV510A Series 2MP 20x Video Conference Camera

    Subject: uv510A stuck in far zoom
    Date: 25.03.2023 02:50:02Name: rhonda hagan
    Good afternoon, we have a uv 510a and it is stuck in the max zoom position. We try to default reset it but it will not work. any help will be appreciated. Thank you
