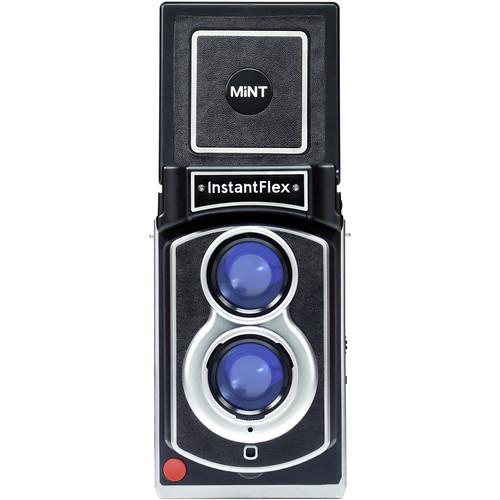

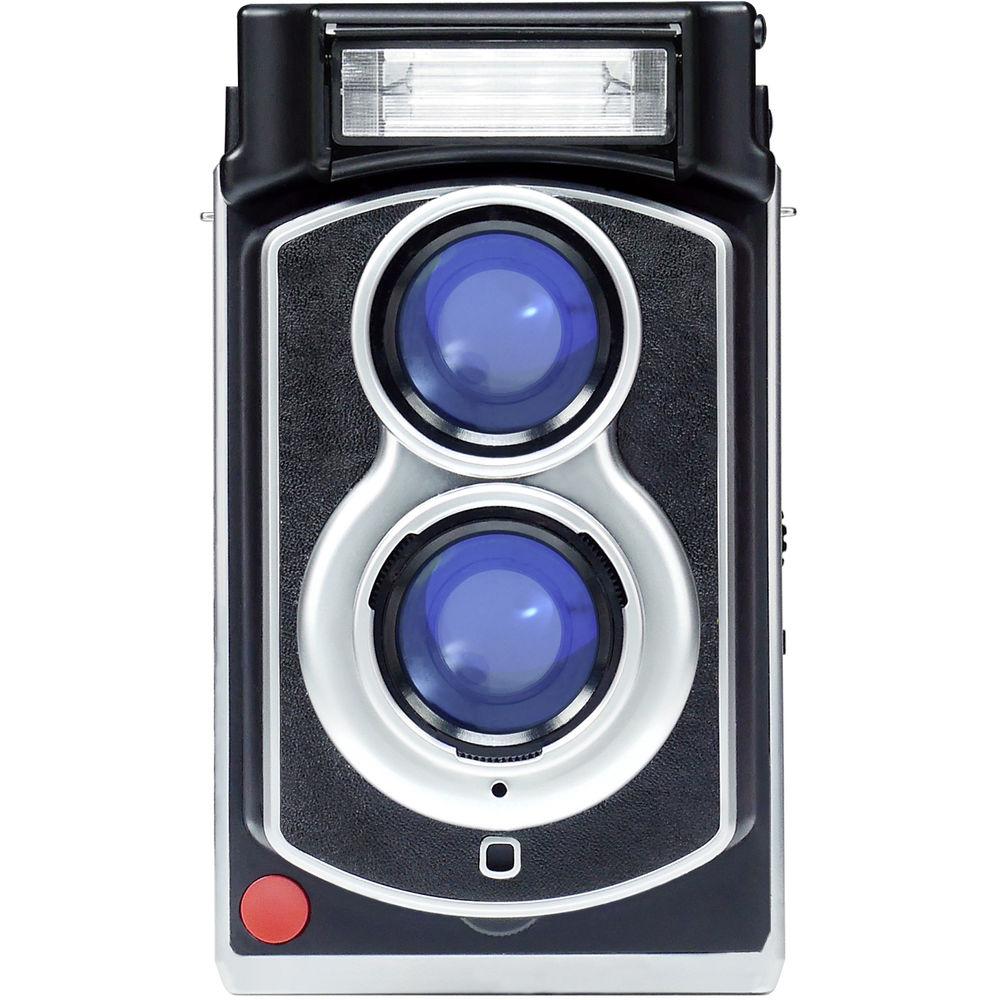

User Manual for Mint Camera InstantFlex TL70 2.0 Instant Film Camera Click to enlarge the picture
Contents of the user manual for the Mint Camera InstantFlex TL70 2.0 Instant
- Product category: Instant Film Cameras Mint Camera
- Brand: Mint Camera
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mint Camera Instant Film Cameras
 |
User manual for the Mint Camera InstantFlex TL70 2.0 Instant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mint Camera product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mint Camera user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mint Camera product will considerably shorten its lifespan!
|

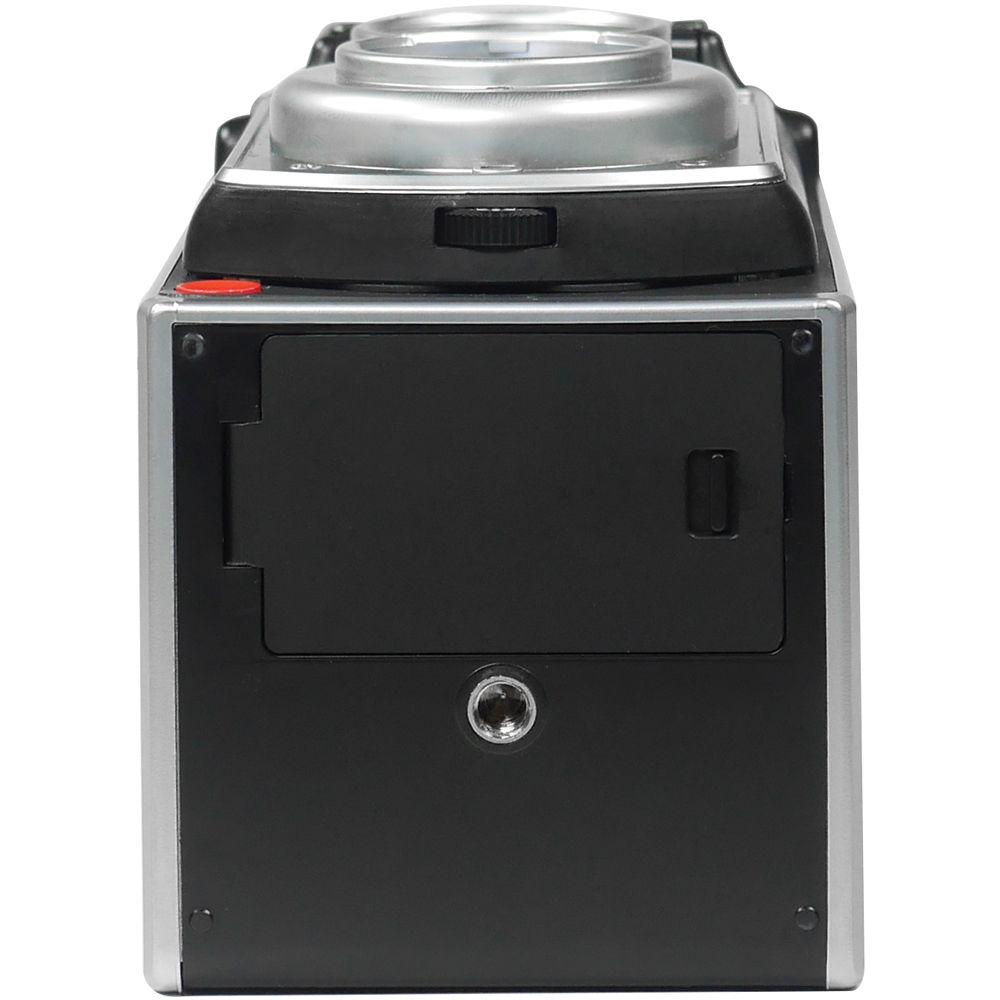

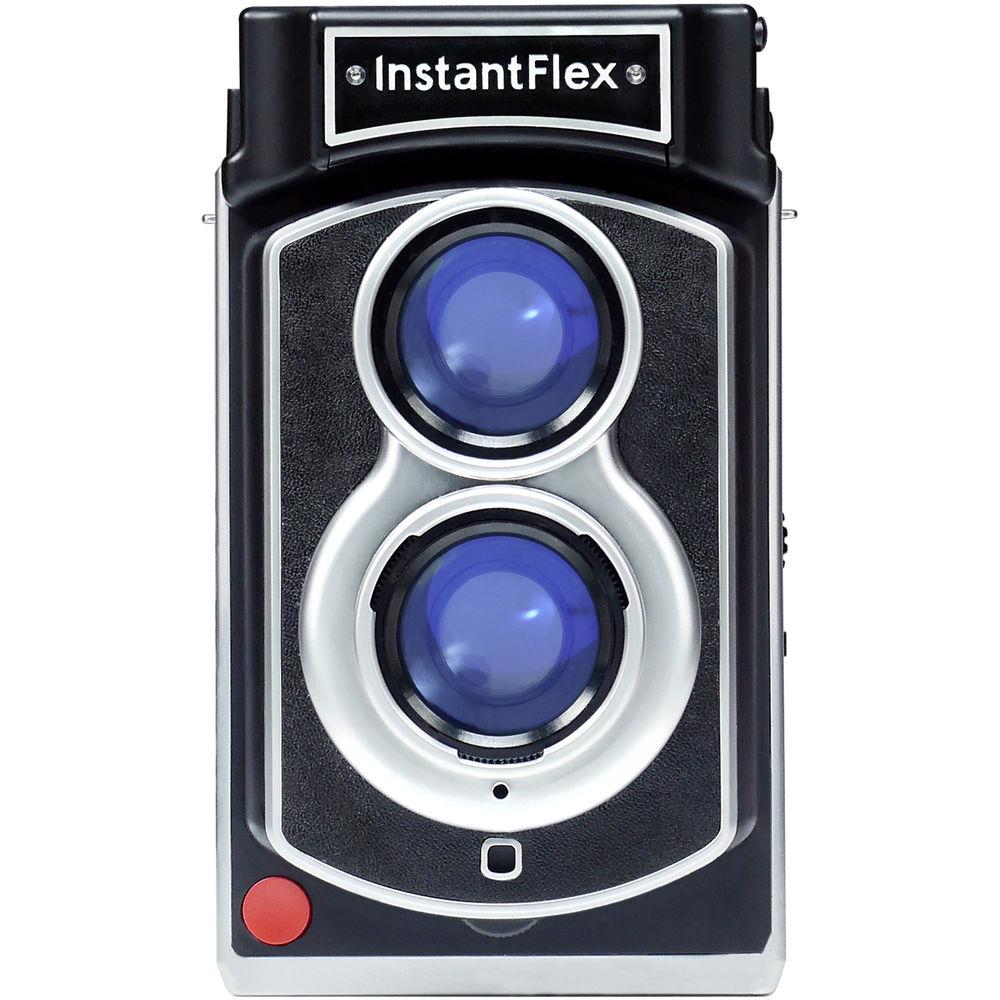

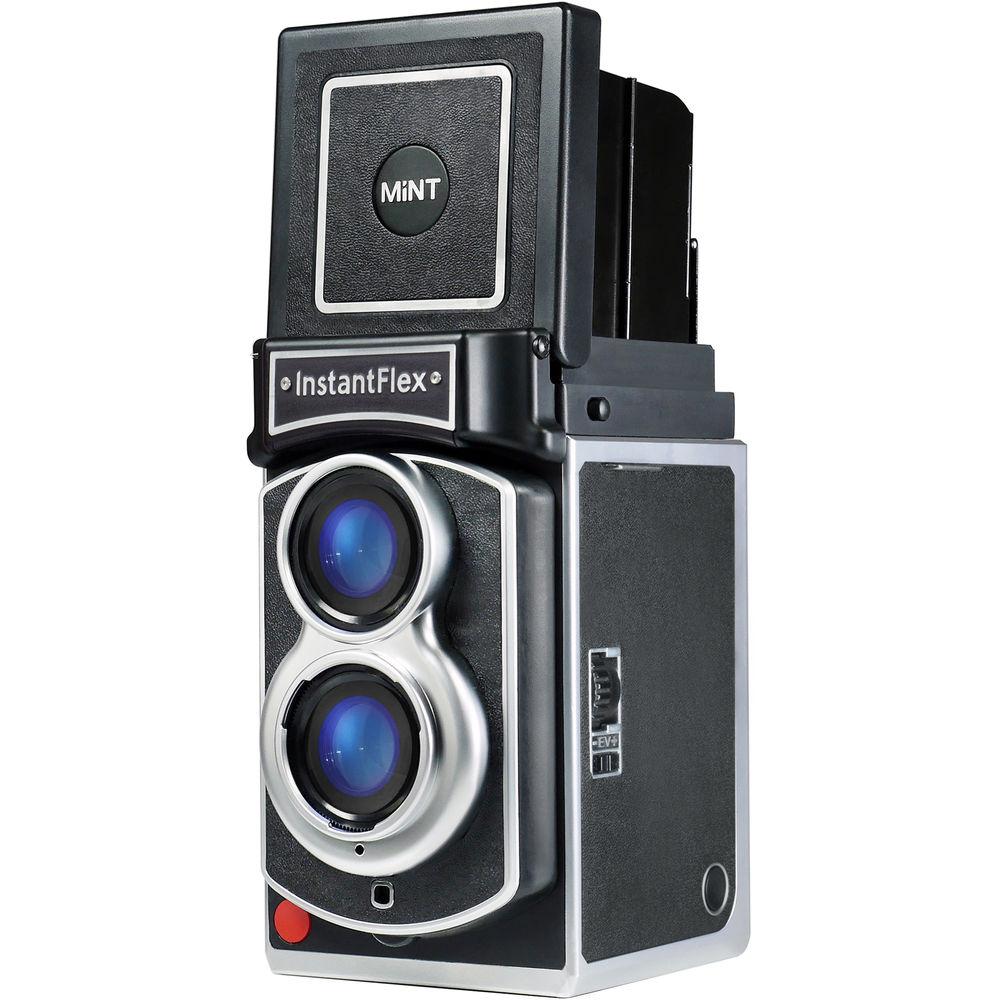

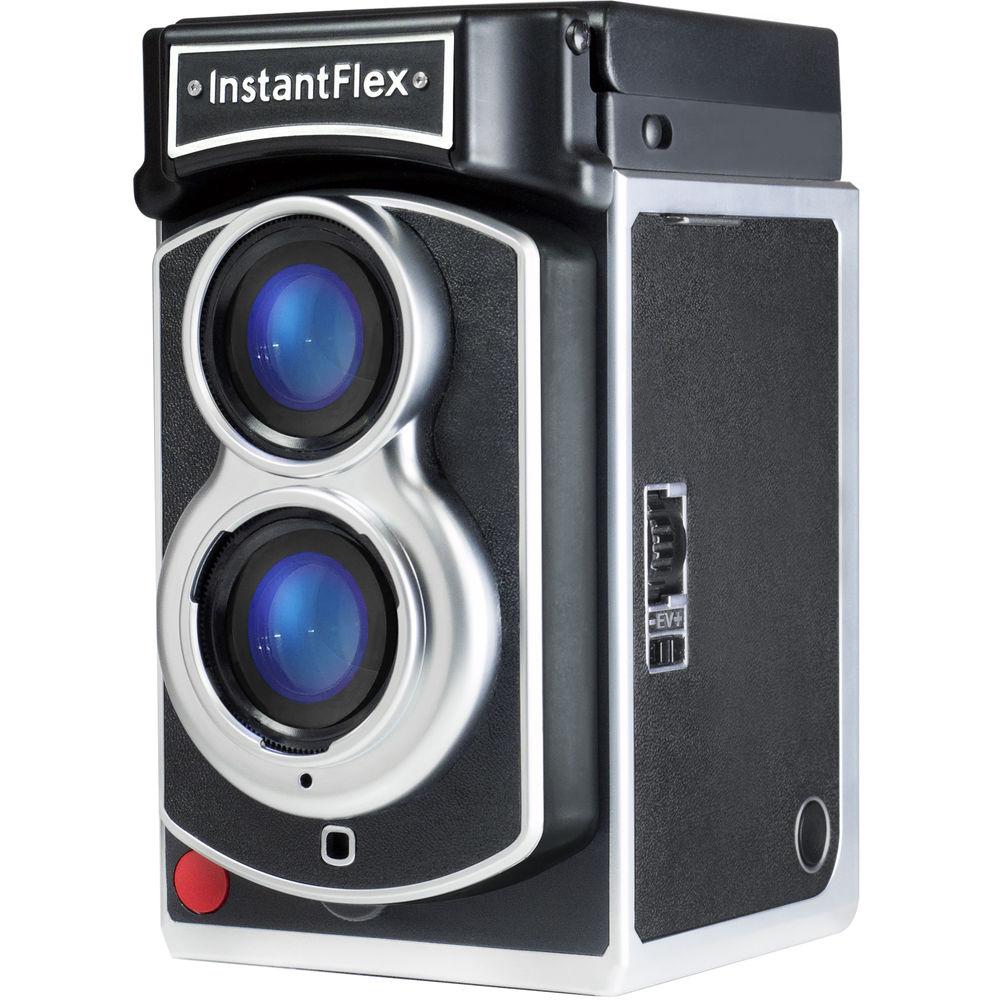

Product description Updated with a brighter, clearer viewfinder, along with an enhanced exposure control-set, the InstantFlex TL70 2.0 is the second iteration of the TL70 from MiNT, which pairs the classic form and function of a TLR yet has the unique distinction of using instax mini instant film. Featuring a completely manual set of exposure controls, along with a 61mm f/5.6 triplet lens, this camera affords a broad range of creative control during shooting, including timed shutter speeds from 1 to 1/500 sec, bulb shooting for up to 10 seconds, and a choice of aperture settings from f/5.6 to f/22. A creatively-shaped f/bokeh setting can also be used to produce distinctly-shaped out-of-focus highlights when using selective focus techniques, and manual focus control lets you photograph subjects as close as 1.6' away. The twin lens reflex design avails a waist-level optical viewfinder for composing and focusing, and both a bottom tripod mount and neck strap holders are integrated for additional shooting stability. The viewfinder has been updated for this version 2.0 edition, and now incorporates a Fresnel Super Viewfinder, that is rated to be five times brighter, along with a 32% larger magnifier for more focusing precision. Also unique to TLR designs, an electronic flash is featured above the viewing lens to provide additional illumination to a scene. Pairing the celebrated TLR design with a fun and contemporary film format, the InstantFlex TL70 2.0 is a unique shooting option that allows you to also mix creativity and control. - Version 2.0 features a five-times-brighter Fresnel Super Viewfinder for increased clarity when composing imagery. This finder also incorporates a 32% larger magnifier for more precise, critical focusing control.
- Improved shutter and aperture mechanisms lend easier, more intuitive control and reliable exposure results.
- Accepts instax mini instant film to produce credit card-sized prints.
- Triplet 61mm f/5.6 lens features aspherical elements to reduce spherical aberrations for sharper, clearer imagery and a magnesium fluoride coating has also been applied to reduce flare and ghosting for increased contrast.
- Manual focus control is available from 1.6' to infinity.

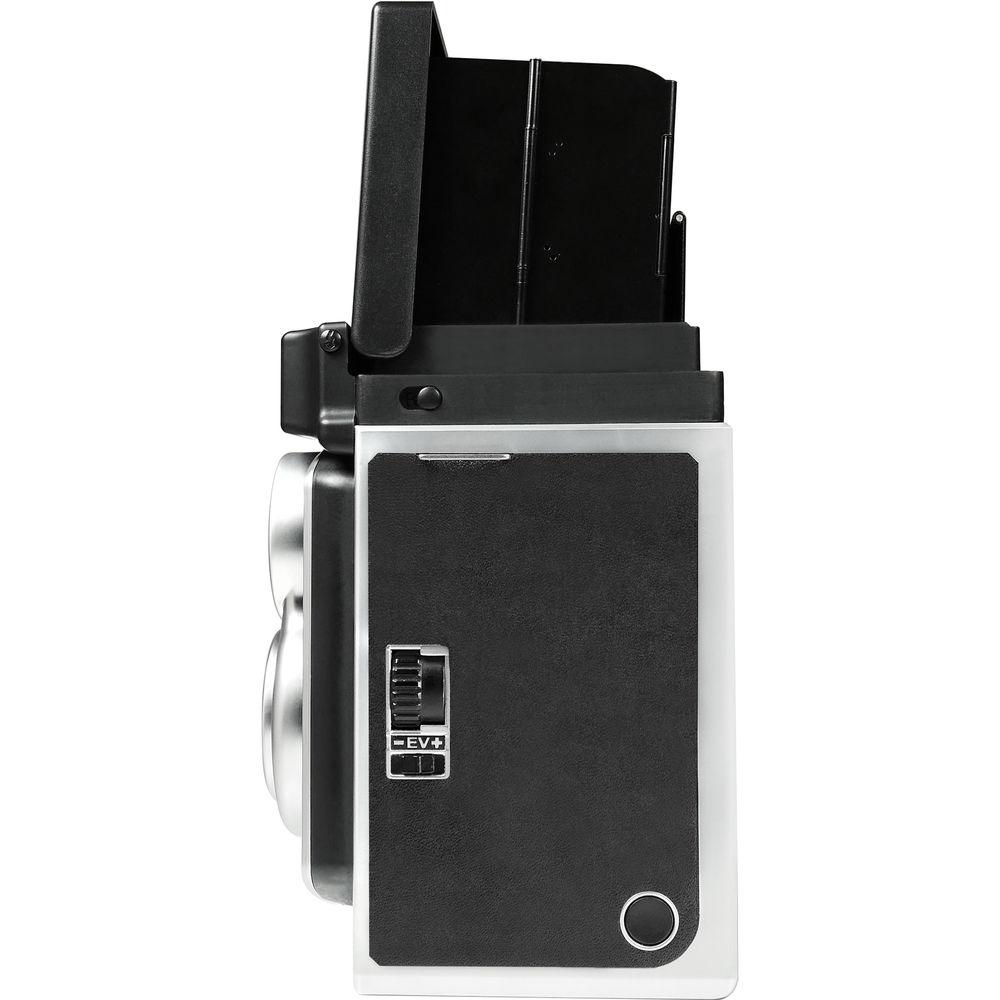

- Manual exposure control is possible, with shutter speed adjustment from 1-1/500 sec, or up to 10 seconds in Bulb mode, and aperture settings are available from f/5.6 to f/22. Additionally, a +/- 1 EV exposure compensation setting can also be used for creatively over- or under-exposing imagery.
- A unique non-circular f/bokeh setting is available to produce creatively-shaped out-of-focus highlights.
- A built-in ambient light meter is used to ensure consistent and accurate exposure results.

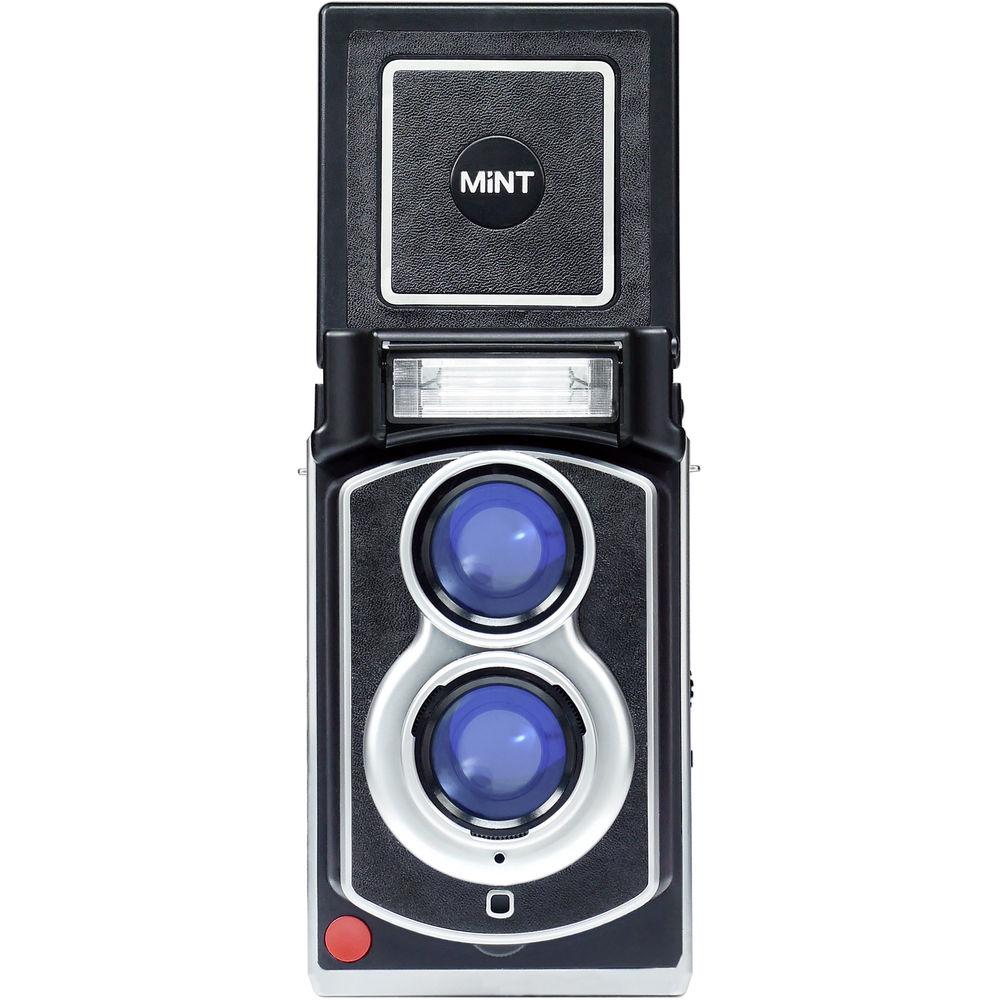

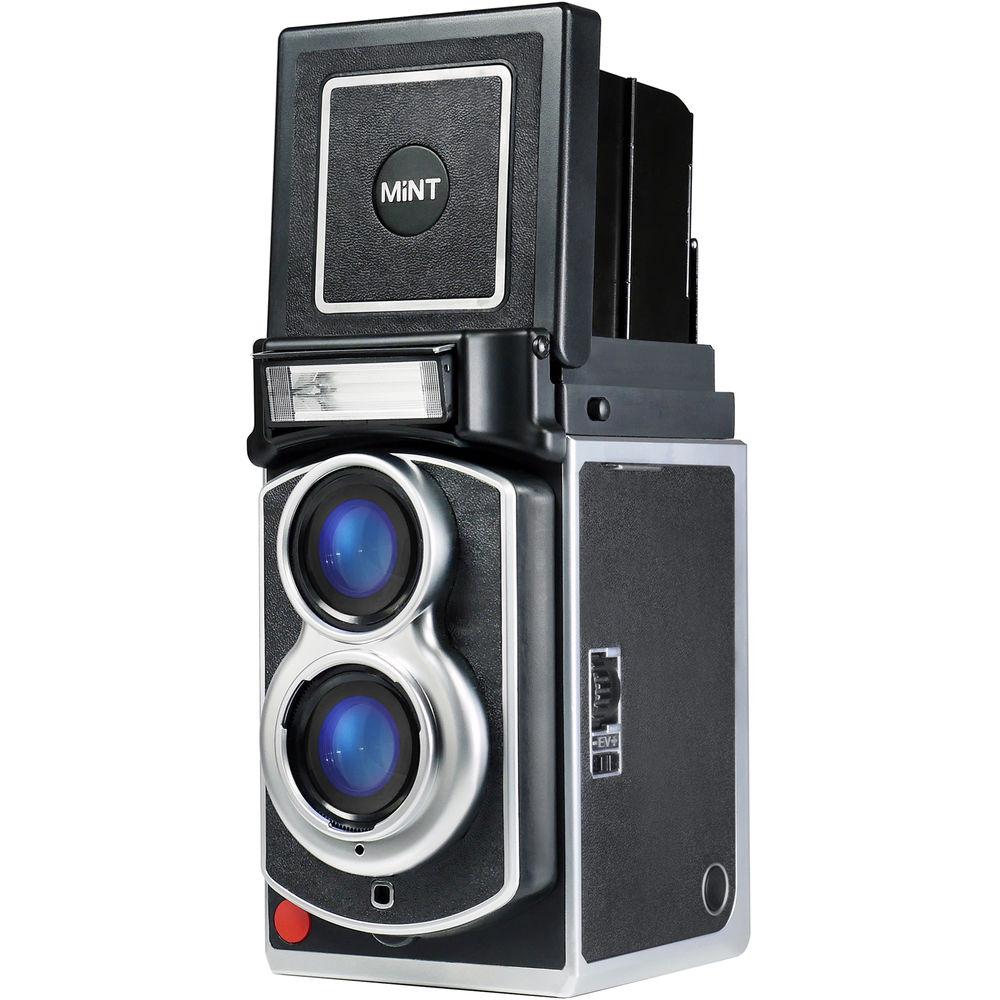

- An electronic flash is incorporated into the front of the camera to provide additional illumination when working in difficult lighting conditions.
- In addition to resembling a classic TLR, the camera is also finished with an appealing matte black textured housing, brushed chromium metallic frame, and soft leatherette wrap.
In the Box Mint Camera InstantFlex TL70 2.0 Instant Film Camera Lens Cap Protection Box The World of InstantFlex 3 x AA Batteries Protection Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mint Camera InstantFlex TL70 2.0 Instant Film Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMint Camera TL70 2.0 Specs | | | Focal Length | 61mm | | Aperture | f/5.6 to 55 | | Focus Type | Manual Focus | | Minimum Focus Distance | 1.6' / 0.5 m | | | | Shutter Speed | 1 to 1/500 Sec, Bulb Mode | | Exposure Compensation | -1 to 1 EV | | | | Battery Type | 3 x AA | | Dimensions (W x H x D) | 4.0 x 5.6 x 3.2" / 10.2 x 14.2 x 8.1 cm | | Weight | 1.2 lb / 0.5 kg | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 6.6 x 5.3 x 4.1" |
