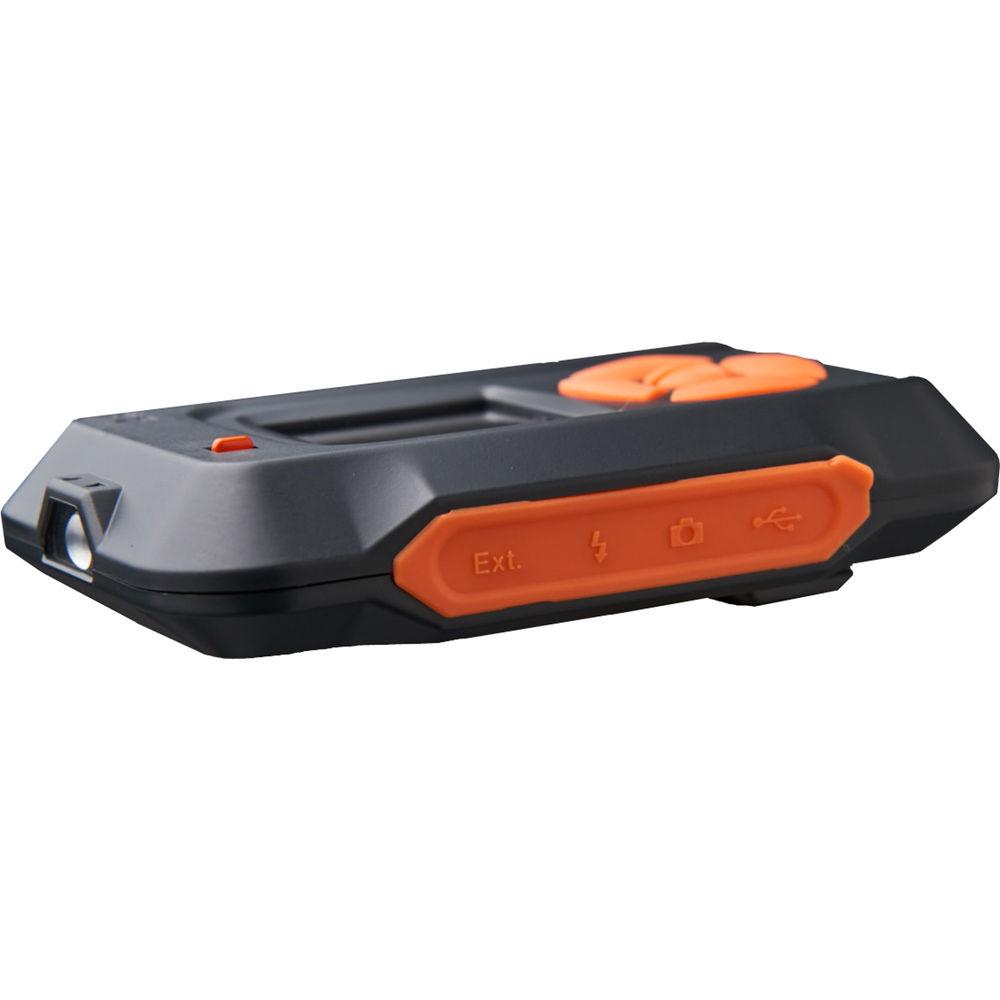

User Manual for Miops Camera Trigger Click to enlarge the picture
Contents of the user manual for the Miops Camera Trigger
- Product category: Camera Trigger Systems Miops
- Brand: Miops
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miops Camera Trigger Systems
 |
User manual for the Miops Camera Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miops product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miops user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miops product will considerably shorten its lifespan!
|

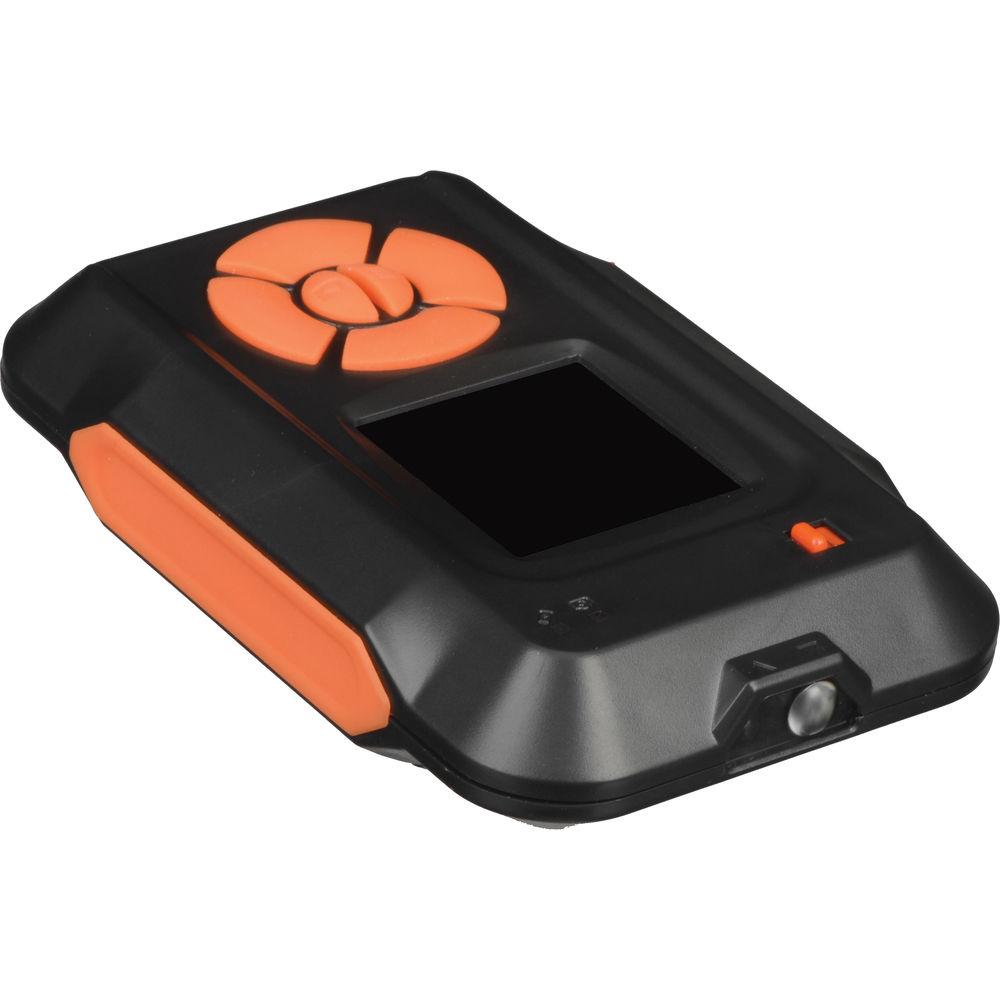

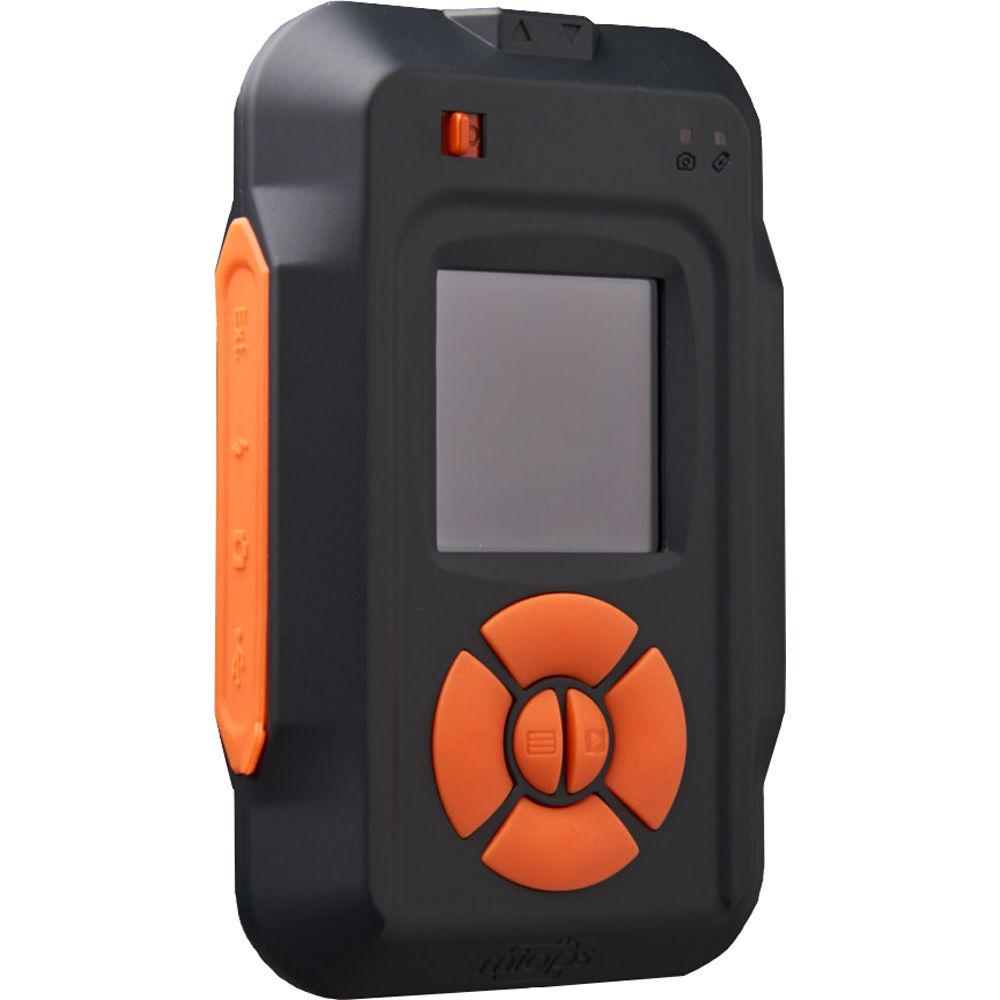

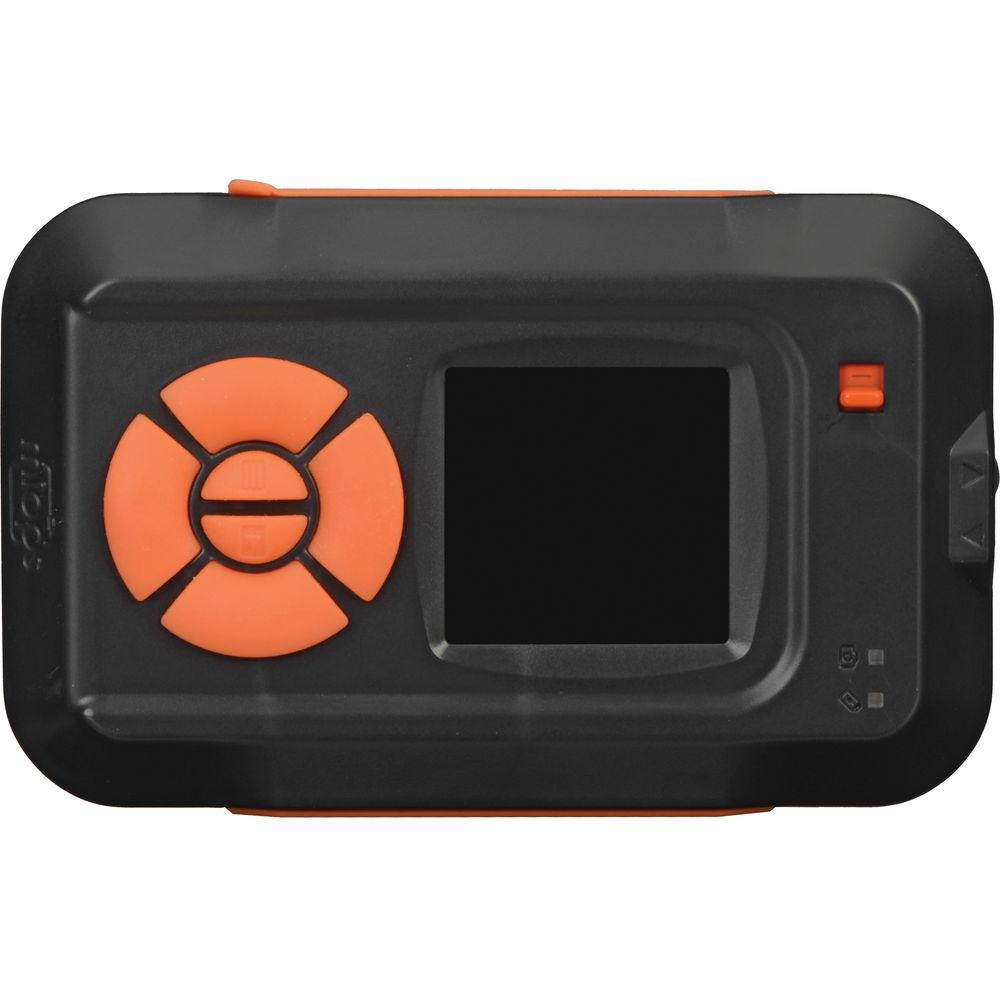

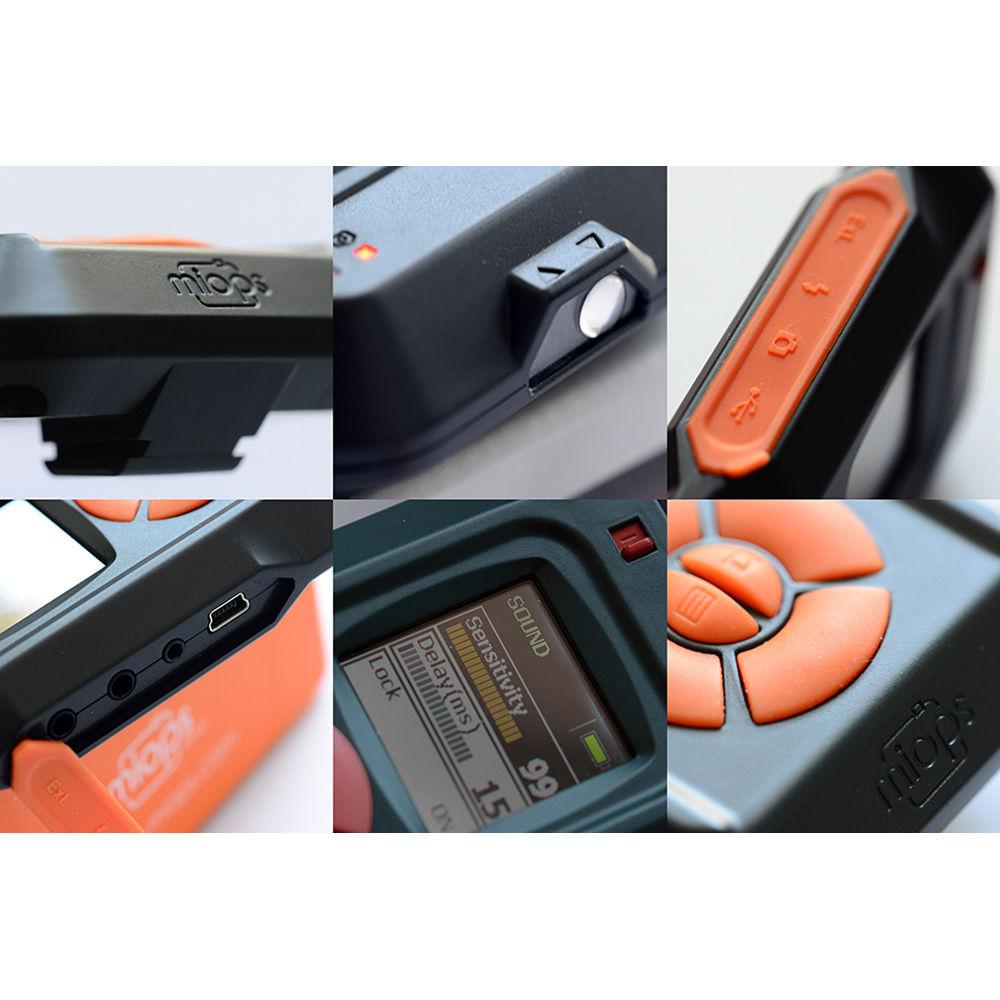

Product description The MIOPS Camera Trigger is a versatile way to capture images using lightning, sound, or laser to trigger your camera or flash. It features six different modes of operation with adjustable sensitivity depending on your given shooting situation.
In addition to the lightning, sound, laser, timelapse, and HDR modes enable additional creative output. An external port can connect to various sensors to trigger your camera based on variables such as temperature, pressure, or humidity. An app for either iOS or Android allows you to control the MIOPS from your smartphone using Bluetooth connectivity. When not using a smartphone, all functions can be controlled by a color LCD screen on the unit. - Lightning Mode

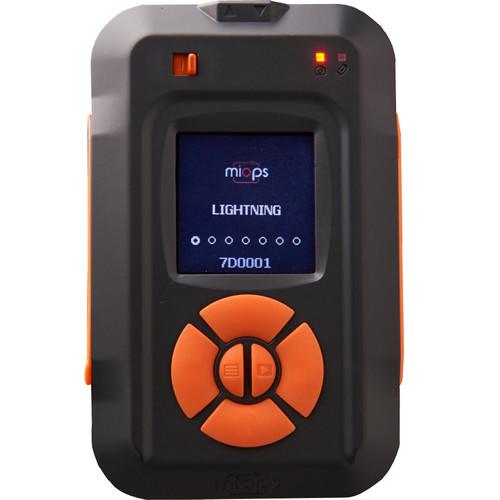

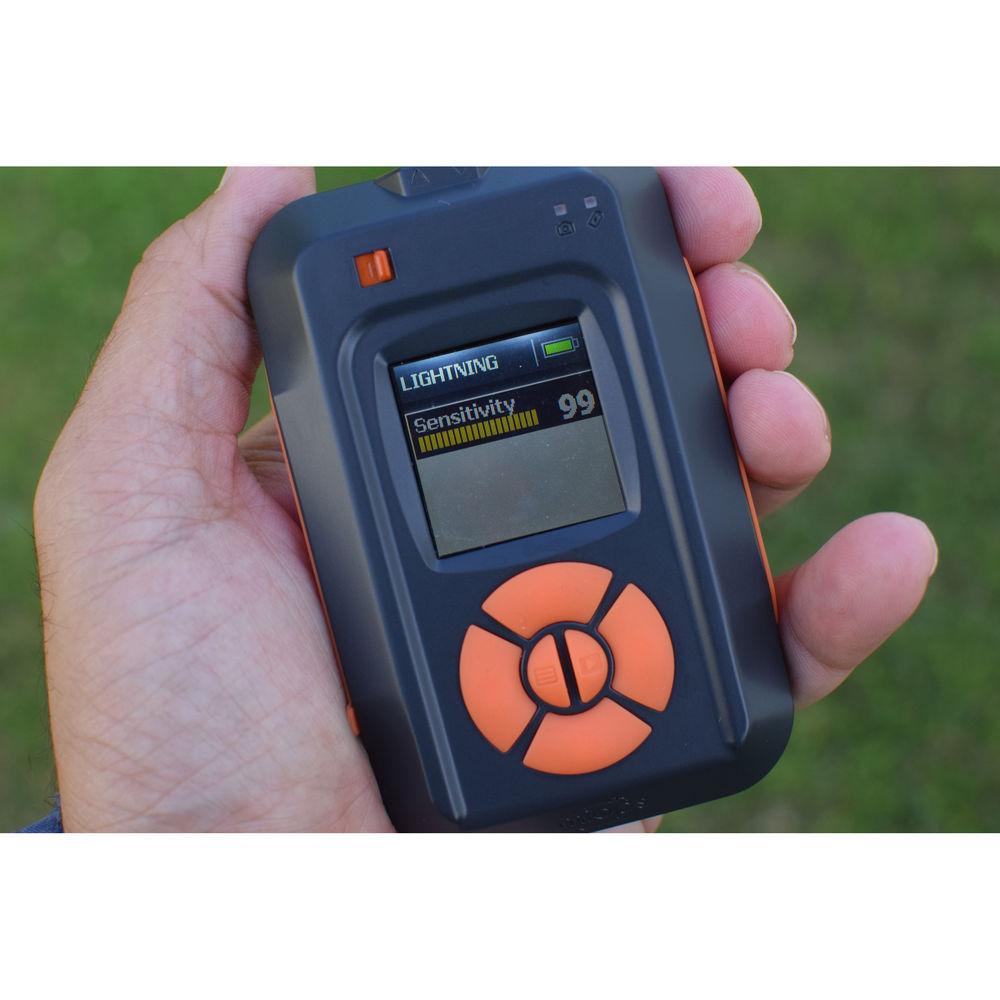

- A built-in light sensor detects changes in light and triggers your camera's shutter in just a few nanoseconds. You can capture only bright lightning strikes, or the smallest strikes, simply by adjusting the sensitivity. This mode can also be used to capture fireworks, or other events where you need to capture images based on changes in light.
- Laser Mode
- The MIOPS has a built-in sensor to detect when a laser beam is broken, thereby triggering your camera's shutter. This is useful for detecting subjects such as water drops, animals, or intruders when conducting surveillance.
- Sound Mode
- MIOPS's built-in microphone can detect sound, triggering your camera or flash to capture things like breaking glass, or a popping balloon. You can adjust the delay of the trigger as well as the sensitivity of amount of sound needed to trigger the shutter.
- Timelapse Mode
- This mode lets you specify the interval time anywhere between one second and one hour, as well as how many photos to take. The LCD screen will turn off to save energy, allowing you to take a timelapse photo for days, or even months if you use an external power source.
- HDR Mode
- Even if your camera doesn't have a bracketing feature, MIOPS allows you to set a center exposure, as well as the over and under exposures needed in order to make an HDR image.
- External Port
- A port on the MIOPS can accept any external trigger that has an output signal between 0V and 3V, such as a temperature, pressure, or humidity sensor.
- Combining Sensors
- You can combine sensors with MIOPS's Scenario feature by creating a custom scenarios with up to five different steps. For example, you can set the MIOPS to start taking timelapse photos only after it detects lightning.

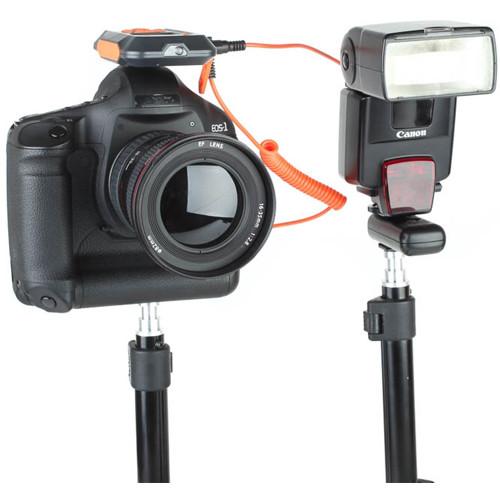

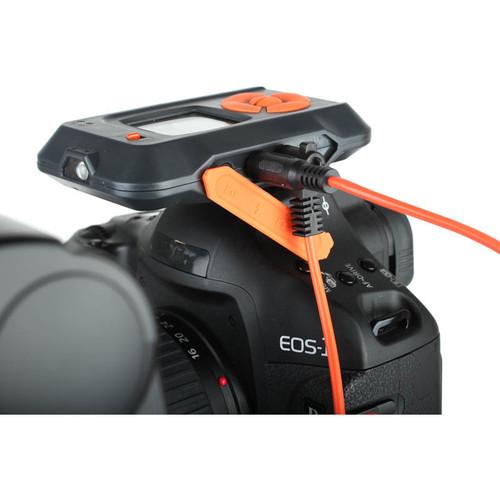

- Triggering Your Camera and Flash
- MIOPS has two dedicated outputs, one for a flash, and another for a camera. They are electrically isolated from each other, reducing risk of a short circuit. The MIOPS trigger can be used with multiple cameras (not simultaneously) by simply changing the camera connection cable.
- Mini-USB Port
- The mini-USB port allows you to charge your Li-ion battery, as well as update the MIOPS's firmware.
- Compatibility
- MIOPS can be used with any cameras which have a remote shutter trigger port or an IR port, and any and flash units with a PC sync jack.
UPC: 791154017609 In the Box Miops Camera Trigger PC Sync Cable For Flash Units ydayaytfbtxb BL-C5 Rechargeable Li-Ion Battery USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Miops Camera Trigger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiops MIOPS Specs | Connectivity | Bluetooth 4.0
Two 2.5 mm jacks
Mini-USB | | Battery | Rechargeable Li-ion | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.3 x 4.1 x 2.0" |
