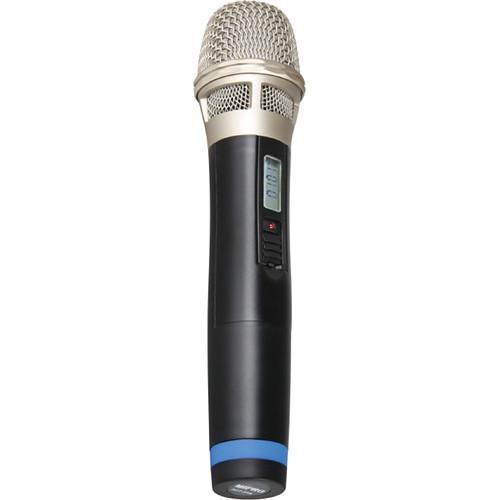

User Manual for MIPRO ACT-32H Cardioid Condenser Handheld Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the MIPRO ACT-32H Cardioid Condenser Handheld Microphone
- Product category: Wireless Transmitters MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Wireless Transmitters
|
User manual for the MIPRO ACT-32H Cardioid Condenser Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description The ACT-32H Cardioid Condenser Mic from Mipro is a handheld microphone transmitter that uniformly captures sound. The condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound-image characteristics, transparent sound quality, and withstands maximum SPL. The mic features a reversible end-cap that enables the power on/off switch to be locked to avoid accidental power-off during performance. Additionally, the mic features a multi-layered metal grille which protects the capsule against impact, rolling, and pop noise. - Impact-resistant battery compartment holds two AA batteries
- Backlit LCD displays various parameters and status
- Stable PLL circuits – Automatically synchronized with the receiver's frequency via Mipro's proprietary ACT function
- Interchangeable colored rings for microphone channel identification on stage
- High-efficiency circuitry design provides more than 16 hours of operation from two AA batteries (depending on the battery quality)
In the Box MIPRO ACT-32H Cardioid Condenser Handheld Microphone Transmitter (5NC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO ACT-32H Cardioid Condenser Handheld Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO ACT-32H (5NC) Specs | Frequency Range | Supports 480 to 934 MHz; operates at 542 to 566 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | Group, Channel, Battery status, and Error codes | | Maximum SPL | 140 dB | | Battery Type | 2 x AA alkaline | | Current Consumption | Approximately 92 mA | | Dimensions (Ø x L) | 2.0 x 9.2" (5.0 x 23.3 cm) | | Weight | Approximately 8.68 oz (246 g) excluding batteries | | | | Package Weight | 1.02 lb | | Box Dimensions (LxWxH) | 11.3 x 7.05 x 3.8" |
