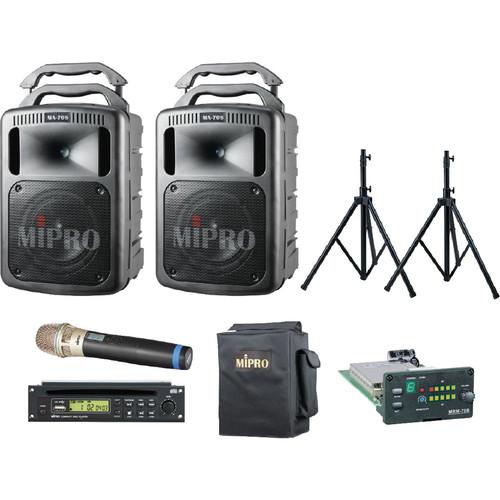

User Manual for MIPRO FieldMaster Bluetooth Portable PA System with Dual Interlinked MA-708PAB Speakers and Wireless Handheld Microphone & Speaker Stands Click to enlarge the picture
Contents of the user manual for the MIPRO FieldMaster Bluetooth Portable PA System
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO FieldMaster Bluetooth Portable PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MIPRO FieldMaster is a portable Bluetooth PA system with two black MA-708PAB speakers (a master speaker and a slave speaker) and an MTM-92 interlinking transmitter module, which enables you to wirelessly connect the two speakers and increase the range of your sound coverage for music streaming and voice reinforcement applications in schools, places of worship, meetings, trade shows, and more. The FieldMaster also includes four rechargeable lithium-ion batteries (two for each speaker) and an ACT-32H5A handheld microphone transmitter. The master speaker houses a CDM-2A CD player module with remote control, the MT-92 interlinking transmitter, and an MRM-70B5A single-channel diversity receiver to receive the signal from the microphone. The slave speaker is equipped with an MRM-70B5NC single-channel diversity receiver to receive the signal from the master speaker via the interlinking transmitter. The MA-708PAB features a 190W Class-D amplifier, an 8" speaker, and a 1" compression driver, capable of delivering a clear and powerful sound for a crowd up to 1000. The single-channel wireless microphone system operates on 16 auto-scannable frequencies with true diversity reception to prevent signal interference. The ACT function provides precise and rapid frequency sync between the transmitters and receiver. Designed for accurate sound reproduction, the MU-80 supercardioid, condenser microphone capsule produces a sound with a wide frequency and rapid transient response. The MA-708PAB is equipped with an XLR mic input, a second 1/4" mic input, RCA aux I/O, and a built-in Bluetooth receiver for streaming your music wirelessly from Bluetooth-enabled devices such as smartphones, tablets, or computers. The unit offers three power modes—AC, DC, and rechargeable batteries—and provides up to 7 hours of operation on a full charge. Housed in a rugged enclosure, the MA-708PAB features a built-in storage compartment for two handheld or bodypack transmitters, a retractable handle, and sturdy wheels for easy transport. The FieldMaster package ships with two MS-70 tripod speaker stands and two SC-75 protective speaker covers. - MA-708PAB System with MB-70 Rechargeable Batteries
-
- Class-D amplifier that produces 190W audio output
- Master volume with Memory and Standard modes
- Memory mode saves and recalls last volume level during next 'power on' whereas standard mode resets the volume level to zero
- Supports up to 4 optional diversity receiver modules with 16 auto-scannable frequencies
- One-touch Scan & ACT sync button for fast and easy channel setup
- Built-in Bluetooth music player for wireless audio streaming
- Built-in storage compartment for 2 handheld or bodypack transmitters
- Voice priority feature that mutes the music when a wireless microphone is used
- Three power modes: AC, rechargeable battery, and DC jack
- 4-segment battery indicator for battery and charging status
- Built-in AC-switching power supply for universal usage and fast battery charge
- Replaceable lithium-ion rechargeable battery 2-pack
- Retractable handle and sturdy wheels for easy transport
- Suitable for tripod, floor, or desk-mount use
- CDM-2A CD Player Module
-
- Plays standard audio CDs
- Selection and Search functions
- Programmable tracks
- Random and repeat playback
- Wireless remote control included
- MTM-92 Interlinking Transmitter Module
-
- 16 selectable channels
- Numeric LED display
- Modular design allows for easy installation and replacement
- 5NC: 542 to 566 MHz frequency range
- MRM-70B Single-Channel Diversity Receiver Module
-
- Advanced diversity technology for optimum reception quality
- Presets with 16 auto-scannable frequencies
- One-touch Scan for clear, interference-free reception
- One-touch ACT function syncs the transmitter and receiver frequency automatically
- Easy-to-read LED channel display
- Interference-warning indicator
- Sensitivity can be adjusted to minimize interference
- Dual PiloTone & NoiseLock circuits minimize interference
- 5-segment RF and audio meters
- Modular design allows easy installation and replacement
- MRM-70B5A receiver module in the master speaker to receive the signal from the wireless handheld microphone (5A: 506 to 530 MHz)
- MRM-70B5NC receiver module in the slave speaker to receive the signal from the Interlink transmitter (5NC: 542 to 566 MHz)
- ACT-32H Handheld Microphone Transmitter
-
- Interchangeable capsule module for easy and fast changeovers—comes with an MU-80 supercardioid, condenser capsule
- Ergonomically designed metal housing
- Multi-layered metal grille protects the capsule against impact, rolling, and pop noise, for sound clarity
- Upper grille is easy to detach for cleaning and hygiene practice
- Proprietary capsule suspension design virtually eliminates vibration and handling noise
- Built-in, high-efficiency antenna
- Backlit LCD display shows all operational parameter information
- ACT function provides precise and rapid frequency sync to the receiver
- Frequency range: 506 to 530 MHz (5A)
In the Box MIPRO FieldMaster Bluetooth Portable PA System with Dual Interlinked MA-708PAB Speakers and Wireless Handheld Microphone & Speaker Stands (5A: 506 to 530 MHz & 5NC: 542 to 566 MHz, Black) 2 x MA-708PAB Portable 190W PA Bluetooth System (Black) 4 x MB-70 Rechargeable Batteries UHF 16-Channel Wireless Interlinking Transmitter (5NC Frequency Band) Single-Channel Diversity Receiver Module for Select Transmitters (Frequency 5A) Single-Channel Diversity Receiver Module for Select Transmitters (Frequency 5NC) ACT-32H Cardioid Condenser Handheld Microphone Transmitter (5A) CDM-2A CD Player Module with Remote Control 2 x MS-70 Tripod Speaker Stands 2 x SC-75 Storage Cover Bag for MA-708 Wireless PA System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO FieldMaster Bluetooth Portable PA System with Dual Interlinked MA-708PAB Speakers and Wireless Handheld Microphone & Speaker Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO Fieldmaster Complete Specs | | | Maximum Power Output | 190 W | | Amplifier | Class-D | | Sensitivity | Typical: 89 dB
Maximum: 108 dB | | THD | < 1% | | Frequency Response | 50 Hz to 18 kHz | | Speaker | Tweeter: 1.0" (2.5 cm) compression driver
Bass: 8.0" (20.3 cm) woofer | | Coverage | H x V: 80° x 60° | | Audio Inputs | Wired: 1 x XLR; 1 x 1/4" / 6.3 mm
Wireless: Up to 4 wireless microphones
Audio Player: CDM-2A
Line-In: Unbalanced RCA jack | | Bluetooth | Supported | | Audio Output | Unbalanced line RCA jack | | Extension Speaker | Via 1/4" / 6.3 mm phone jack | | Volume Control | Manual or wireless via ACT-32HR | | Controls | Tone, voice priority & echo on wireless mics | | Storage | Space for up to two handheld or bodypack transmitters | | Charge Time | Up to 8 hours (automatic charging management) | | Standby Time | Up to 7 hours | | Battery Indicator | 4-level indicator | | Power Supply | AC:
Built-in 100 to 240 VAC switching power supply (maximum power consumption: 220 W)
DC & Battery:
24 to 32 VDC, 12 V, 4.5 AH rechargeable gel cell battery (2 x MB-70) or optional 2 x MB-80 | | Dimensions | 13.2 x 21.5 x 12.8" / 33.6 x 54.5 x 32.5 cm | | Weight | Approximately 36.0 lb / 16.3 kg with MB-70 batteries included | | | | Formats Supported | Standard audio CD | | | | Type | Analog, narrow-band | | Channel | Single | | Frequency Range | 5A: 506 to 530 MHz for Receiver in Master speaker
5NC: 542 to 566 MHz for receiver in Slave speaker | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan and ACT sync | | Display Status | Channel
RF and audio meters
Interference warning indicator | | Receiving Mode | CPU-controlled diversity receiving | | Oscillation Mode | PLL synthesized
Frequency Stability:
