User Manual for MIPRO MA-100SB Personal Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-100SB Personal Wireless PA System
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-100SB Personal Wireless PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|

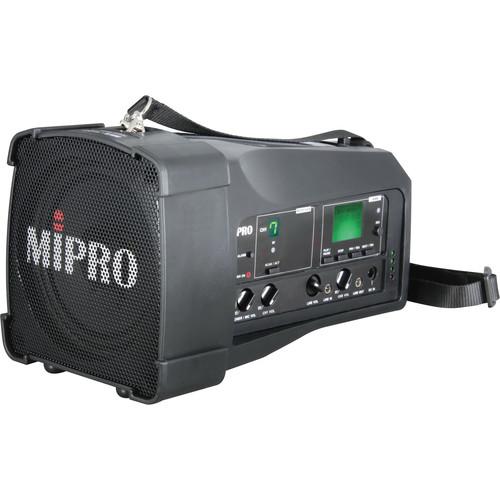

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MA-100SB Personal Wireless PA System from Mipro is a lightweight, robust, and battery-operated PA system. It can be powered by internal batteries and comes housed in a rugged enclosure. With the built-in rechargeable batteries, you can use the speaker for up to 12 hours. Alternatively, the MA-100SB can be plugged into AC for continuous use. It can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. The MA-100SB is an appropriate PA for small crowds.The included ACT-32H Cardioid Condenser Mic is a handheld microphone transmitter that uniformly captures sound. The condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound-image characteristics, transparent sound quality, and withstands high SPL without distorting. PA System - High-efficiency class-D amplifier
- Lightweight, contoured, and ultra-portable design
- Up to 12 hours of standby time per 4-hour charge
- Built-in one wireless receiver with 16 auto-scannable frequencies
- Built-in USB music player & recorder with LCD screen
- Built-in one-button alarm/siren for warning of threats
- User-friendly control panel for easy operation
- Switching power supply efficiently provides a regulated output voltage
- AC and lithium rechargeable battery operation
Wireless Handheld Microphone - Impact-resistant battery compartment holds two AA batteries
- Backlit LCD displays various parameters and status
- Built-in transmitter automatically syncs with the receiver's frequency via Mipro's proprietary ACT function
- High-efficiency circuitry design provides more than 12 hours of operation from two AA batteries (depending on the battery quality)
- Interchangeable colored rings for microphone channel identification on stage
UPC: 680652973664 In the Box MIPRO MA-100SB Personal Wireless PA System ACT-32H Cardioid Condenser Handheld Microphone Transmitter (5A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-100SB Personal Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA-100BSUH (5A) Specs | | | Maximum Power Output | 50 W | | Amplifier | Class-D | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Loudspeaker | 5.0" / 12.7 cm (full-range, high efficiency) | | Audio Inputs | Wired: 1/4" / 6.3 mm
Line-In: 1/8" / 3.5 mm | | Audio Output | 1/8" / 3.5 mm | | Alarm | Siren sound with fade-in mode | | Installation | Microphone stand, table-mounted, shoulder belt | | Power Supply | AC:
External 100 to 240 VAC switching power supply
DC & Battery:
14.8 V; 2.6 AH rechargeable lithium battery (1 x MB-10) | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 12 hours | | Battery Indicator | 4-level indicator | | Dimensions | 5.3 × 5.5 × 9.4 " / 13.5 × 14.0 × 24.0 cm | | Weight | Approximately 3.9 lb / 1.8 kg (with battery) | | | | Receiver Channel | Single | | Frequency Range | UHF 480 to 934 MHz (country dependent) | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan & ACT sync | | Antenna | Built-in | | | | Type | Audio | | USB Port | Built-in USB 2.0 port | | Function | Play & record | | Operation | On-board controls, USB remote control included | | | | Frequency Range | Supports 480 to 934 MHz, operates at 506 to 530 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (country dependent) | | Spurious Emissions | <-55 dBc | | LCD Display | Group, Channel, Battery status, and Error codes | | Maximum SPL | 140 dB | | Battery Type | 2 x AA alkaline | | Dimensions (Ø x L) | 2.0 x 9.2" / 5.0 x 23.3 cm | | Weight | Approximately 8.7 oz / 246 g (excluding batteries) | | | | Package Weight | 7.635 lb | | Box Dimensions (LxWxH) | 13.9 x 11.7 x 8.7" |
