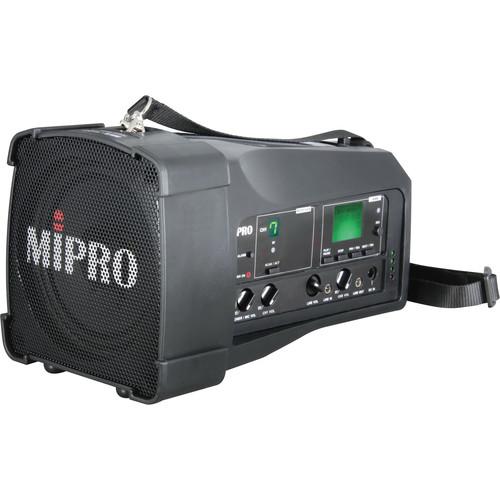

User Manual for MIPRO MA-100SB Personal Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-100SB Personal Wireless PA System
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-100SB Personal Wireless PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MA-100SB Personal Wireless PA System from Mipro is a lightweight, robust and battery operated PA system. It can be powered by internal batteries and comes housed in a rugged enclosure. With the built-in rechargeable batteries, you can use the speaker for up to 12 hours. Alternatively, the MA-100SB can be plugged into AC for continuous use. It can be easily carried via the padded shoulder strap or built-in handle, or can be mounted on a microphone stand. The MA100 is a perfect PA for small crowds.The included Miniature Body Pack Wireless Transmitter is lightweight and compact and housed in a sturdy plastic chassis. On the top, the transmitter features a mute switch, a mini-XLR connector, and an antenna. It also features a backlit LCD display that shows various parameters. The adjustable belt clip allows the user to wear the transmitter in an up or down position.The black MU-53HN Unidirectional Cardioid Headworn Microphone is used to capture audio when paired with the wireless transmitter. It is designed for applications such as speech, theater, TV, broadcasting, and live performance. It features a unidirectional capsule module in a visually unobtrusive, flexible, and durable frame with soft ear hooks that require no adjustment for optimum comfort. The MU-53HN capsule module and cable can be easily detached from the frame, and worn on the left or right side of the frame to suit personal preferences. The capsule shaft mount is fully rotatable. It allows for adjustments in length, direction and angle for precise positioning in relation to the speaker's mouth. This headset comes standard with Mipro's TA4F mini-XLR plug. PA System - High efficiency class-D amplifier
- Lightweight, contoured, and ultra-portable design
- Up to 12 hours of standby time per 4-hour charge
- Single built-in wireless receiver with 16 auto-scannable frequencies
- Built-in USB music player & recorder with LCD screen
- Built-in one-button alarm/siren for warning of threats
- User-friendly control panel for easy operation
- Switching power supply efficiently provides a regulated output voltage
- AC and lithium rechargeable battery operation
Bodypack Transmitter - High-efficiency circuitry design provides 12 to 14 hours of operation from two AA batteries
- Automatically synchronizes with the receiver's frequency using Mipro's patented ACT function
- Battery cover designed to allow easy control access while preventing accidental operations
- Mute button with remote-control jack for easy activation of mute function
- Mini-XLR input with secure screw lock connector for lavalier/headset mics and guitar
- Can directly match to high-low input impedance for microphone or guitar without switching
Headworn Mic - Capsule module and cable can be easily detached from the frame and worn on the left or right side of the frame to suit personal preferences
- Included MU-53M unidirectional capsule module can be replaced with optional MU-55M subminiature waterproof omnidirectional capsule module
- Smooth, warm, natural sound
- Features a high dynamic range and is able to withstand high SPL without distortion
- Fold-flat design for easy storage
In the Box MIPRO MA-100SB Personal Wireless PA System (Headworn Mic and Bodypack Transmitter) Miniature Bodypack Wireless Transmitter (5A Band: 506 to 530 MHz) aqyrwcyvv MU-53HN Unidirectional Cardioid Headworn Microphone (Black, TA4F) Remote Control for USB Media Player Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-100SB Personal Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA-100BSUT (5A) Specs | | | Maximum Power Output | 50 W | | Amplifier | Class D | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Loudspeaker | 5.0" / 12.7 cm; full-range, high efficiency | | Audio Inputs | Wired Mic In: 1/4" / 6.4 mm
Line In: 1/8" / 3.5 mm | | Audio Output | 1/8" / 3.5 mm | | Power Supply | AC:
External 100 to 240 VAC switching power supply
DC & Battery:
14.8 V; 2.6 AH rechargeable lithium battery (1 x MB-10) | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 12 hours | | Battery Indicator | 4-level indicator | | Dimensions | 5.3 × 5.5 × 9.4 " / 13.5 × 14.0 × 24.0 cm | | Weight | Approximately 3.9 lb / 1.8 kg with battery | | | | Receiver Channel | Single | | Frequency Range | UHF 480 to 934 MHz (country dependent) | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan & ACT sync | | Antenna | Built-in | | | | Type | Audio | | USB Port | Built-in USB 2.0 port | | Function | Play & record | | Operation | On-board controls; USB remote control included | | | | Frequency Range | 480 to 934 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | To display group, channel, frequency, AF gain, frequency band, RF power, mute mode, lock status, battery status, and error codes | | Maximum Input Level | 0 dBV | | Connector | Mute Connector: Optional MJ-70 remote mute switch | | Battery Type | 2 x AA alkaline | | Current Consumption | High Power:
Approximately 161 mA
Low Power:
Approximately 120 mA | | Dimensions | 2.5 x 3.2 x 0.9" (6.3 x 8.2 x 2.2 cm) | | Weight | Approximately 3 oz (81 g) excluding batteries | | | | Type | 10mm miniature condenser headworn microphone | | Color | Black | | Polar Pattern | Unidirectional | | Frequency Response | 50 Hz to 18 kHz ±3 dB | | Impedance | Capsule: 200 ohms | | Sensitivity | -46 dBV ±3 dBV/Pa (0 dB=1 V/Pa) | | Maximum SPL | 125 dB (typical, 1% THD) | | Capsule | Shaft Holder: Dual - left and right side | | Plug | TA4F mini-XLR 4-pin plug | | Dimensions | Cable Length: 59.1" / 150 cm
Capsule Module Diameter: 3.9" / 9.9 cm | | Weight | 1.1 oz / 31 g |
