User Manual for MIPRO MA-100SB Single-Channel Personal Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-100SB Single-Channel Personal Wireless PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
 |
User manual for the MIPRO MA-100SB Single-Channel Personal Wireless PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|

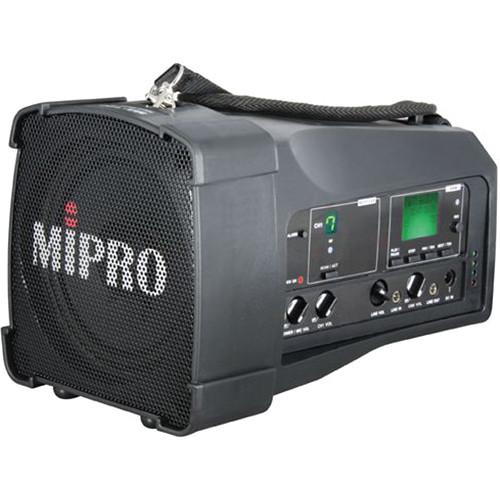

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The black MA-100SB Single-Channel Personal Wireless PA System from MIPRO offers a vast array of features in an easy-to-use package. This lightweight yet powerful unit can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. The system supports a frequency band of 480 to 934 MHz and operates on 644 to 668 MHz. It is ideal for use in school classrooms, places of worship, presentations, seminars and meetings, day-care activities, playground duty, indoor/outdoor gatherings, tour guides & paging, fire fighters, law enforcement, search & rescue squads, street performers, and factory & company tours. -
- Rugged yet lightweight one-piece molded cabinet
- Supports a frequency band of 480 to 934 MHz and operates on 644 to 668 MHz
- Built-in 1 wireless receiver with 16 auto-scannable frequencies
- Built-in USB music player & recorder with LCD screen
- Built-in one-button alarm/siren for warning of threats

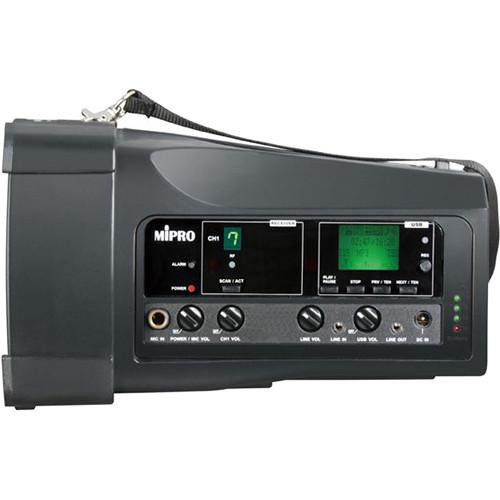

- User-friendly control panel provides intuitive easy operation
- High efficiency class-D amplifier drives a full-range speaker
- AC and lithium rechargeable battery operation
- Switching power supply efficiently provides a regulated output voltage
- Black color
In the Box MIPRO MA-100SB Single-Channel Personal Wireless PA System (6B, Black) Microphone Stand Shoulder Belt USB Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-100SB Single-Channel Personal Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA100SB6B Specs | | | Maximum Power Output | 50 W | | Amplifier | Class D | | Sensitivity | Typical: 90 dB
Maximum: 102 dB | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Loudspeaker | 5" full-range high efficiency | | Audio Inputs | Wired: 1/4" (6.3 mm)
Line-In: 1/8" (3.5 mm) | | Audio Output | 1/8" (3.5 mm) | | Alarm | Siren sound with fade-in mode | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 12 hours | | Battery Indicator | 4-level indicator (25/50/75/100%) | | Power Supply | External: 100 to 240 VAC switching power supply
Maximum Power Consumption: 60 W
Battery: 14.8 VDC/2.6 Ah rechargeable lithium battery (MB-10x1) | | Dimensions | 5.3 x 5.6 x 9.4" (14 × 14 x 24 cm) | | Weight | Approximately 3.9 lb (1.8 kg) (MB-10 battery included) | | | | Receiver Channel | Single | | Frequency Band | Supports 480 to 934 MHz (country dependent)
Operates in 644 to 668 MHz | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan & ACT sync | | Antenna | Built-in | | | | Type | Audio | | Operation | On-board, Play & Record |
