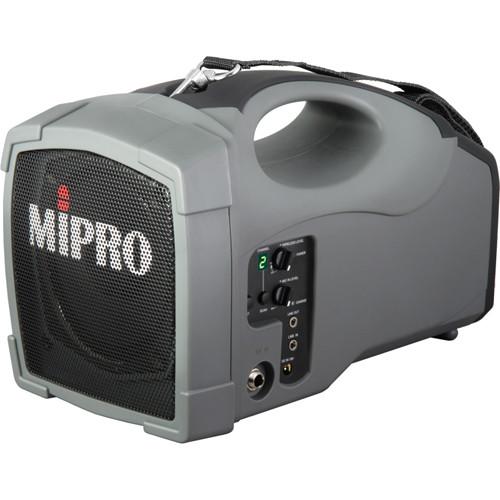

User Manual for MIPRO MA-101B Personal Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-101B Personal Wireless PA System
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-101B Personal Wireless PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MA-101B Personal Wireless PA System from Mipro is a lightweight, robust, and battery operated PA system. It can be powered by the internal battery and comes housed in a rugged enclosure. With the built-in rechargeable battery, you can use the speaker for up to 10 hours. Alternatively, the MA-101B can be plugged into AC for continuous use. It can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand. The ultra-portable MA101B is designed to be an ideal PA system for small crowds.The included ACT-32H Cardioid Condenser Mic from Mipro is a handheld transmitter microphone that uniformly captures sound. The condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality, and can withstand very high SPL without distorting. The mic features a reversible end-cap that allows the power on/off switch from being locked to avoid accidental power-off during performance. Additionally, the mic also features a multi-layered metal grille which protects the capsule against impact, rolling, and plosives. PA System - Lightweight, contoured, and ultra-portable design
- Up to 10 hours of standby time per 4-hour charge
- Built-in wireless receiver with 16 auto-scannable frequencies
- Allows you to connect external MP3, iPod, and CD player via 3.5mm line input
- AC and built-in lithium rechargeable battery operation
Handheld Transmitter - Impact-resistant battery compartment for holding two AA batteries
- Backlit LCD display for displaying various parameters
- Automatically synchronizes with the receiver's frequency using Mipro's patented ACT function
- Interchangeable colored rings for microphone channel identification on stage
- High-efficiency circuitry design provides more than 16 hours of operation from two AA batteries (depending on the battery quality)
In the Box MIPRO MA-101B Personal Wireless PA System ACT-32H Cardioid Condenser Handheld Microphone Transmitter (5A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-101B Personal Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA-101BPAH (5A) Specs | | | Maximum Power Output | 45 W | | Amplifier | Class AB | | THD | <1% | | Frequency Response | 60 Hz to 15 kHz | | Loudspeaker | 5.0" / 12.7 cm full-range, high efficiency | | Audio Inputs | Wired: 1/4" / 6.3 mm
Line-In: 1/8" / 3.5 mm | | Audio Output | 1/8" / 3.5 mm | | Installation | Microphone stand, table mounted, shoulder belt | | Power Supply | AC:
100 to 240 VAC switching power supply
DC & Battery:
14.8 V; 2.6 AH rechargeable lithium battery (MB-25) | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 10 hours | | Battery Indicator | Single LED indicator | | Dimensions (W × H × D) | 6.3 × 7 × 11.2" / 16.0 × 17.8 × 28.5 cm | | Weight | Approximately 4.8 lb / 2.2 kg (with battery) | | | | Frequency Range | Supports 480 to 934 MHz; operates on 506 to 530 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | To display group, channel, battery status, and error codes | | Maximum SPL | 140 dB | | Battery Type | 2 x AA alkaline | | Current Consumption | Approximately 92 mA | | Dimensions | 2.0 × 9.2" / 5.0 x 23.3 cm | | Weight | Approximately 9 oz / 246 g (excluding batteries) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
