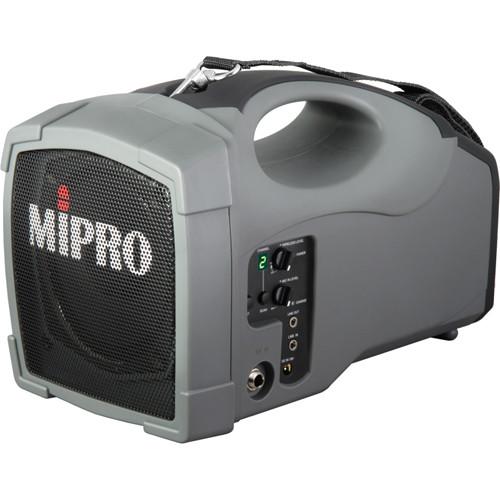

User Manual for MIPRO MA-101B Personal Wireless PA System with Headset Mic Click to enlarge the picture
Contents of the user manual for the MIPRO MA-101B Personal Wireless PA System
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-101B Personal Wireless PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MA-101B Personal Wireless PA System from Mipro is a lightweight, robust, and battery operated PA system. It can be powered by an internal battery and comes housed in a rugged enclosure. With the built-in rechargeable battery, you can use the speaker for up to 10 hours. Alternatively, the MA-101B can be plugged into AC for continuous use. It can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand. The ultra-portable MA101 is designed to be the perfect PA for small crowds.The Miniature Body Pack Wireless Transmitter is a lightweight and compact transmitter that is housed in a sturdy plastic chassis. On the top, the transmitter features a mute switch, a mini-XLR connector, and an antenna. It also features a backlit LCD display that shows various parameters. The adjustable belt clip allows wearing the transmitter in an up or down position.The MU-53HN Unidirectional Cardioid Headworn Microphone is used to capture audio when paired with the included wireless transmitter. It is designed for applications such as speech, theater, TV, broadcasting, and live performance. It features a unidirectional capsule module in a visually unobtrusive, flexible, and durable frame with soft ear hooks that require no adjustment for optimum comfort. The MU-53HN capsule module and cable are easily detached from the frame and can be worn on the left or right side of the frame to suit personal preferences. The capsule shaft mount is fully rotatable. It allows for adjustments in length, direction, and angle for precise positioning in relation to the speaker's mouth. This headset comes standard with Mipro's TA4F mini-XLR plug. PA System - Lightweight, contoured, and ultra-portable design
- Up to 10 hours of standby time per 4-hour charge
- Built-in wireless receiver with 16 auto-scannable frequencies
- Allows you to connect external MP3, iPod, or CD player via 3.5mm line input
- AC and lithium rechargeable battery operation
Headworn Microphone - Capsule module and cable can be easily detached from the frame and can be worn on the left or right side of the frame to suit personal preferences
- Interchangeable MU-53M unidirectional capsule module and optional MU-55M subminiature waterproof omnidirectional capsule module
- Swiveling earhook design allows for inward rotation, facilitating easy storage and transport
- Smooth, warm, natural sound
- Features a high dynamic range and is able to withstand high SPL without distortion
- Fold-flat design for easy storage
Bodypack Transmitter - Battery cover is designed in such a way that it allows easy access to the buttons but also prevents accidental operations
- Mute button with remote-control jack for easy activation of mute function
- Automatically synchronizes with the receiver's frequency using Mipro's patented ACT function
- Can directly match to high-low input impedance for microphone or guitar without switching
- Mini-XLR input with secure screw lock connector for lavalier/headworn mics or guitar
- High-efficiency circuitry design provides 12 to 14 hours of operation from two AA batteries (depending on the battery quality)
In the Box MIPRO MA-101B Personal Wireless PA System with Headset Mic Miniature Bodypack Wireless Transmitter (5A Band: 506 to 530 MHz) dcfrdzzrzrzdvzrfyuctvv MU-53HN Unidirectional Cardioid Headworn Microphone (Black, TA4F) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-101B Personal Wireless PA System with Headset Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA-101BPAT (5A) Specs | | | Maximum Power Output | 45 W | | Amplifier | Class AB | | THD | <1% | | Frequency Response | 60 Hz to 15 kHz | | Loudspeaker | 5.0" / 12.7 cm full-range, high efficiency | | Audio Inputs | Wired: 1/4" / 6.3 mm
Line-In: 1/8" / 3.5 mm | | Audio Output | 1/8" / 3.5 mm | | Installation | Microphone stand, table mounted, shoulder belt | | Power Supply | AC:
100 to 240 VAC switching power supply
DC & Battery:
14.8 V; 2.6 AH rechargeable lithium battery (MB-25) | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 10 hours | | Battery Indicator | Single LED indicator | | Dimensions | 6.3 × 7 × 11.2" / 16.0 × 17.8 × 28.5 cm | | Weight | Approximately 4.8 lb / 2.2 kg (with battery) | | | | Receiver Channel | Single | | Frequency Range | UHF 480 to 934 MHz (country dependent) | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan & ACT sync | | Antenna | Built-in | | | | Frequency Range | Supports 480 to 934 MHz; operates on 506 to 530 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | To display group, channel, frequency, AF gain, frequency band, RF power, mute mode, lock status, battery status, and error codes | | Maximum Input Level | 0 dBV | | Connector | Mute Connector: Optional MJ-70 remote mute switch | | Battery Type | 2 x AA alkaline | | Current Consumption | High Power:
Approximately 161 mA
Low Power:
Approximately 120 mA | | Dimensions | 2.5 x 3.2 x 0.9" / 6.3 x 8.2 x 2.2 cm | | Weight | Approximately 3 oz / 81 g (excluding batteries) | | | | Type | Cardioid headworn | | Polar Pattern | Unidirectional | | Frequency Response | 50 Hz to 18 kHz ±3 dB | | Impedance | Capsule: 200 Ohms | | Sensitivity | -46 dBV ±3 dBV/Pa (0 dB = 1 V/Pa) | | Maximum SPL | 125 dB (typical, 1% THD) | | Capsule | Shaft Holder: Dual - left and right side | | Plug | Mipro's TA4F mini-XLR 4-pin plug | | Dimensions | Cable Length: 59" / 150 cm
Capsule Module Diameter: 3.9" / 1.0 cm | | Weight | 1 oz / 30 g | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 13.9 x 11.8 x 8.6" |
