User Manual for MIPRO MA-101B Single-Channel Personal Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-101B Single-Channel Personal Wireless PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
 |
User manual for the MIPRO MA-101B Single-Channel Personal Wireless PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|

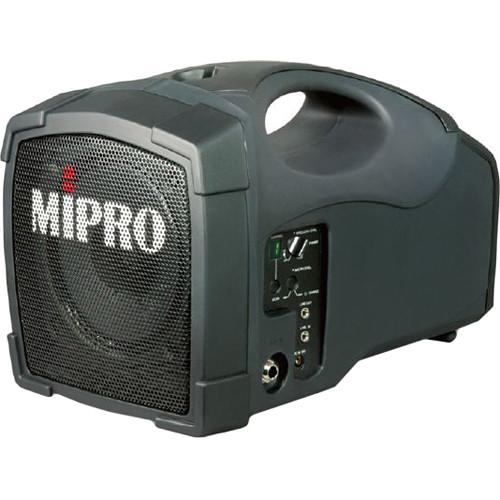

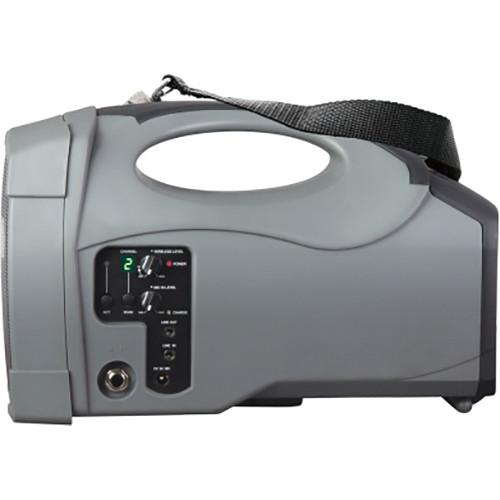

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More fssuwdxqtybxyefavdfxwsdwudafdr The grayish black MA-101B Single-Channel Personal Wireless PA System from MIPRO is lightweight and battery-operated and can be easily carried via the built-in handle, shoulder strap, or mounted on a microphone stand. Equipped with a long-life rechargeable lithium battery with long life, this system supports a frequency band of 480 to 934 MHz and operates on 644 to 668 MHz. It is ideal for use in school classrooms, places of worship, presentations, seminars & meetings, day-care activities, playground duty, indoor/outdoor gatherings, tour guides & paging, fire fighters, law enforcement, search & rescue, street performers, and factory or company tours. -
- Lightweight, contoured, and portable design
- Microphone supports a frequency band of 480 to 934 MHz and operates on 644 to 668 MHz
- Up to 10 hours of standby time per 4-hour charge
- Built-in 1 wireless receiver with 16 auto-scannable frequencies
- 3.5mm line input accepts external MP3, iPod, and CD player
- AC and lithium rechargeable battery operation
- Powerful and clear sound projection, thanks to high-efficiency amplifier drives a full-range speaker
In the Box MIPRO MA-101B Single-Channel Personal Wireless PA System (6B, Grayish Black) Microphone Stand Shoulder Belt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-101B Single-Channel Personal Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA101B6B Specs | | | Maximum Power Output | 45 W | | Amplifier | Class AB | | Sensitivity | Typical: 95 dB
Maximum: 107 dB | | THD | <1% | | Frequency Response | 60 Hz to 15 kHz | | Loudspeaker | 5" full-range, high efficiency | | Audio Inputs | Wired: 1/4" (6.3 mm)
Line-In: 1/8" (3.5 mm) | | Audio Output | 1/8" (3.5 mm) | | Alarm | Siren sound with fade-in mode | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 10 hours | | Battery Indicator | Single LED indicator | | Power Supply | External 100 to 240 VAC switching power supply
Maximum Power Consumption: 60 W
Battery: 14.8 VDC / 2.6 Ah rechargeable lithium battery (MB-25) | | Dimensions | 6.3 x 7.0 x 11" (16 x 18 x 29 cm) | | Weight | Approximately 4.8 lb (2.2 kg) battery included | | | | Receiver Channel | Single | | Frequency Band | Supports 480 to 934 MHz (country dependent)
Operates in 644 to 668 MHz | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan & ACT sync | | Antenna | Built-in |
