User Manual for MIPRO MA-303DB Dual-Channel Portable Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-303DB Dual-Channel Portable Wireless PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
 |
User manual for the MIPRO MA-303DB Dual-Channel Portable Wireless PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|

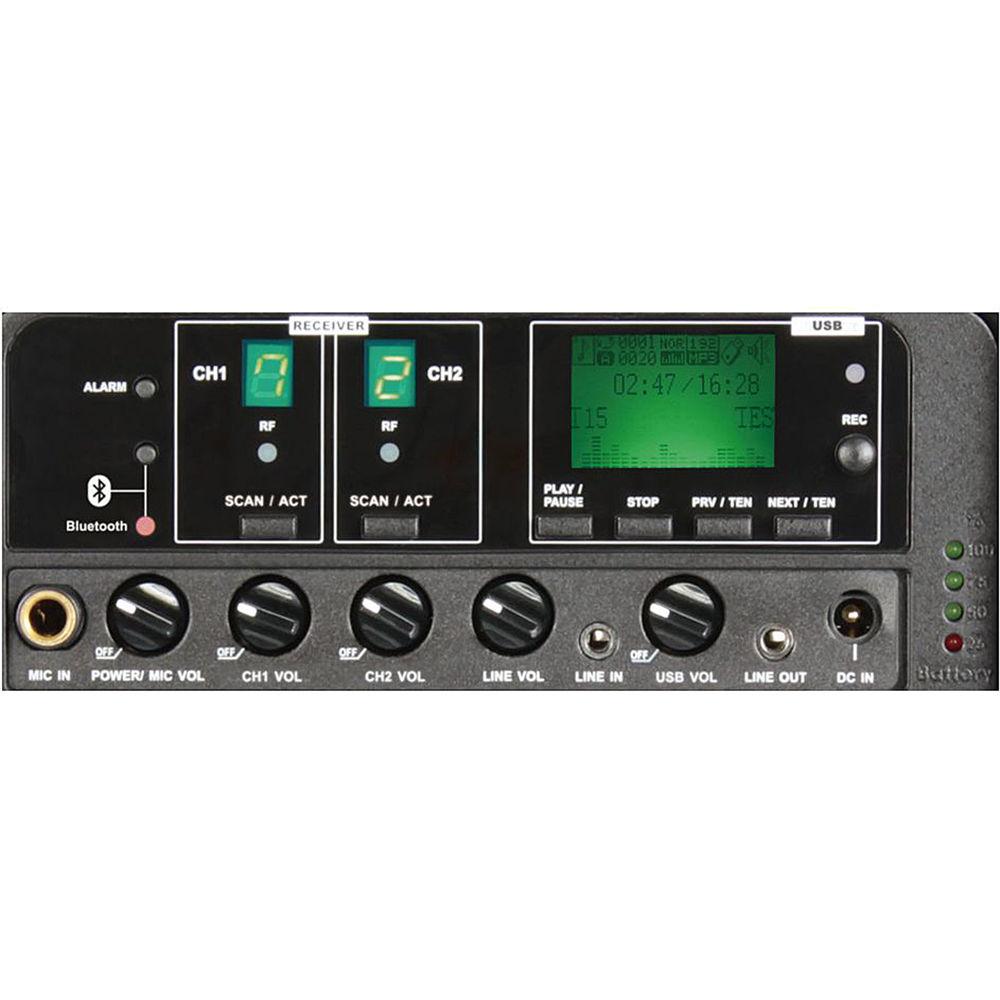

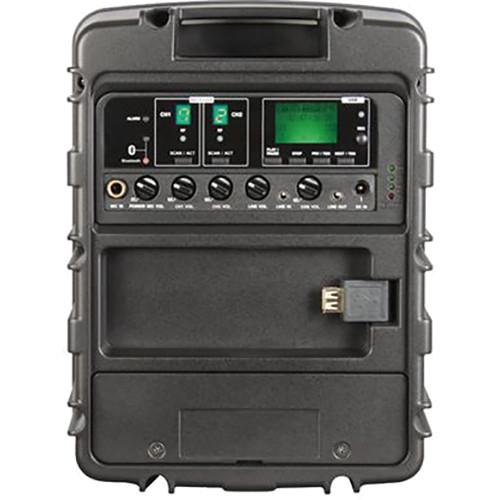

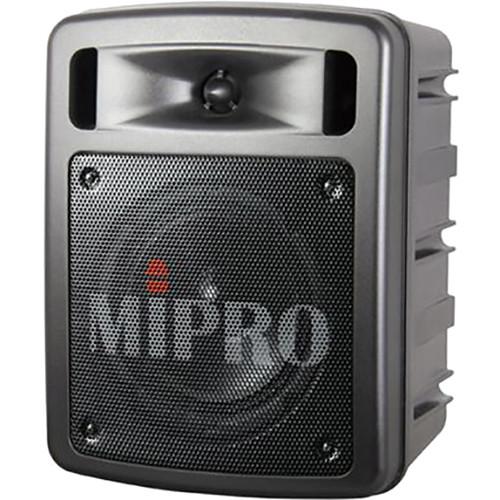

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The black MIPRO MA-303DB Dual-Channel Portable Wireless PA System is a compact PA system and can be easily carried using the built-in handle or mounted on a microphone stand. It features a built-in Bluetooth receiver for wireless audio streaming and an USB music player and recorder with a LCD screen. It is powered by a high-efficiency class-D amplifier with a level limiter. - Powerful and crystal-clear sound projection
- Wireless receiver with 16 auto-scannable frequencies
- One-touch Scan and ACT sync button for fast and easy channel set-up
- Built-in Bluetooth receiver for wireless audio streaming
- Built-in USB music player and recorder with LCD screen
- Built-in alarm siren provides emergency warnings
- AC and lithium rechargeable battery operation
- Up to 9 hours of stand-by time per 4-hour full charge
- 4-segment battery meter for accurate battery reading and charging status
- Suitable for applications such as school classrooms & halls, places of worship, presentations, seminars and meetings, day-care activities, playground duty, indoor/outdoor gatherings, paging, shopping center & trade show presentations and promotions, street performers, aerobic and fitness centers, and recreational and social activities
In the Box MIPRO MA-303DB Dual-Channel Portable Wireless PA System (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-303DB Dual-Channel Portable Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA303DB Specs | | | Maximum Power Output | 60 W | | Amplifier | Class D | | Sensitivity | Typical: 92 dB
Maximum: 102 dB | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Speaker | 1" (25.4 mm) Tweeter
5" (127 mm) Woofer | | Coverage | 120 × 70° (H x V) | | Audio Inputs | Wired: 6.3 mm (1/4")
Line-In: 3.5 mm (1/8") | | Bluetooth | Yes | | Audio Output | 3.5 mm (1/8") | | Alarm | Siren sound with fade-in mode | | Installation | Microphone stand, table mounted. | | Power Supply | AC: External 100 to 240 VAC switching power supply (Maximum Power Consumption: 60 W)
DC & Battery: 14.8 V / 2.6 Ah rechargeable lithium battery (MB-10×1) | | Charge Time | Up to 4 hours (automatic charging management) | | Standby time | Up to 9 hours | | Battery Indicator | 4-level indicator (25/50/75/100%) | | Dimensions (W x H x D) | 8.3 x 11 x 6.5" (210 x 276 x 165 mm) | | Weight | Approximately 6 lb (2.7 kg) | | | | Receiver Channel | Dual | | Frequency Range | 480 to 934 MHz (country dependent) | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan and ACT sync | | Antenna | Built-in | | | | USB Port | USB 2.0 | | Recording | LCD displays track name, number, time, recording status |
