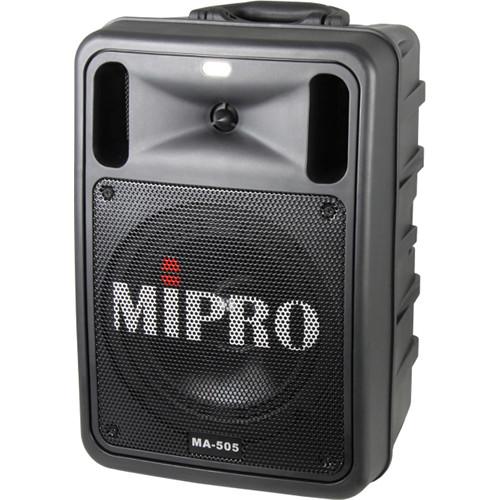

User Manual for MIPRO MA-505PAB Portable Bluetooth-Enabled Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-505PAB Portable Bluetooth-Enabled Wireless PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
 |
User manual for the MIPRO MA-505PAB Portable Bluetooth-Enabled Wireless PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MA-505PAB Portable Bluetooth-Enabled Wireless PA System from Mipro is a compact, fully featured wireless PA system for music playback and voice reinforcement. The MA-505PAB Wireless Portable System can be powered by an internal battery and is housed in a rugged enclosure. The basic system is comprised of a 145W amplifier, a control panel, and a rechargeable battery power supply with a battery-level indicator. With the built-in rechargeable battery, you can use the speaker for up to 8 hours. Alternatively, the MA-505PAB can be plugged into AC for continuous use. For wireless audio streaming, the MA-505PAB PA System comes with a built-in Bluetooth music player. PA System - Highly efficient 145W Class-D amplifier
- 1" titanium compression driver and 8" woofer
- Built-in or detachable receiver-module option
- Wireless receiver with 16 auto-scannable frequencies
- One-touch Scan & ACT sync button for fast and easy channel setup
- Built-in Bluetooth music player for wireless audio streaming
- Rugged one-piece molded enclosure house
- Voice priority feature that mutes the music when wireless microphone is used
- Built-in one-button alarm/siren for warning of threats
- Built-in AC-switching power supply for universal usage and fast battery charge
- 4-segment battery meter for accurate battery reading and charging status
- MT-91 wireless interlinking-transmitter option to interlink multiple MA-505 portables wirelessly to extend transmission range and expand coverage
- Built-in cable-storage compartment
- AC and lithium rechargeable battery operation
- Up to 8 hours of standby time per 4-hour full charge
Audio Player and Recorder - Records from line input into SD card or USB
- Can repeat specified period for language-learning function
- Single track can be deleted during playback
- Song management by music folders
- Equalizer modifies bass, treble and other parameters
- Repeat, fast forward/reverse search
- Numeric selection and random playback
- Remote control can be operated on-board or detached from the panel
In the Box MIPRO MA-505PAB Portable Bluetooth-Enabled Wireless PA System (5A, Black) DPM-3 Digital Player & Recorder Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-505PAB Portable Bluetooth-Enabled Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA-505PAB (5A) Specs | | | Maximum Power Output | 100 W RMS; 145 W maximum | | Amplifier | Class-D | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Speaker | Tweeter: 1.0" (2.5 cm) compression driver
Bass: 8.0" (20.3 cm) woofer | | Coverage | H x V: 130 x 90° | | Audio Inputs | Wired: 1 x XLR; 1 x 1/4"
Wireless: Up to 4 wireless microphones
Audio Player: CDM-2A; CDM-2; CDM-2B; CDM-3A; DPM-3
Line-In: 3.5 mm mini-jack | | Bluetooth | Supported | | Audio Output | 3.5 mm mini-jack | | Extension Speaker | Via unbalanced 6.3 mm jack | | Volume Control | Individual volume control | | Functions | VOP, tone control or optional echo control | | Alarm | Siren sound with fade-in mode | | Storage | For AC power cable | | Charge Time | Up to 4 hours (automatic charging management) | | Standby Time | Up to 8 hours | | Battery Indicator | 4-level indicator | | Power Supply | AC:
Built-in 100 to 240 VAC switching power supply (maximum power consumption: 165 W)
DC & Battery:
External DC connector; built-in 22.2 V/4.5 AH rechargeable lithium (1 x MB-35) | | Dimensions | 11.2 × 15.7 × 8.9" (28.5 × 40.0 × 22.5 cm) | | Weight | Approximately 18.7 lb (8.5 kg) with MB-35 battery included | | | | Type | Audio | | Remote Control | Detachable or on-board |
