User Manual for MIPRO MA-707 Portable 100W Wireless PA System Click to enlarge the picture
Contents of the user manual for the MIPRO MA-707 Portable 100W Wireless PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
 |
User manual for the MIPRO MA-707 Portable 100W Wireless PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|

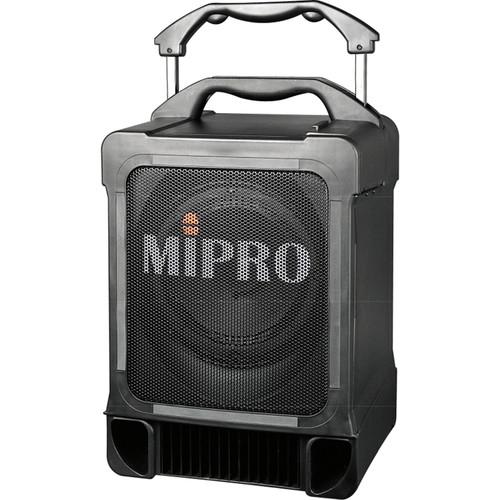

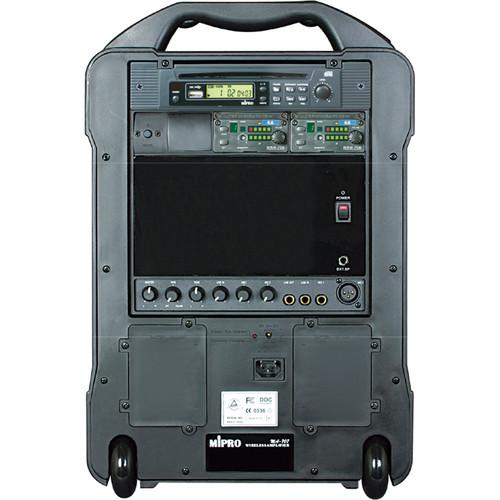

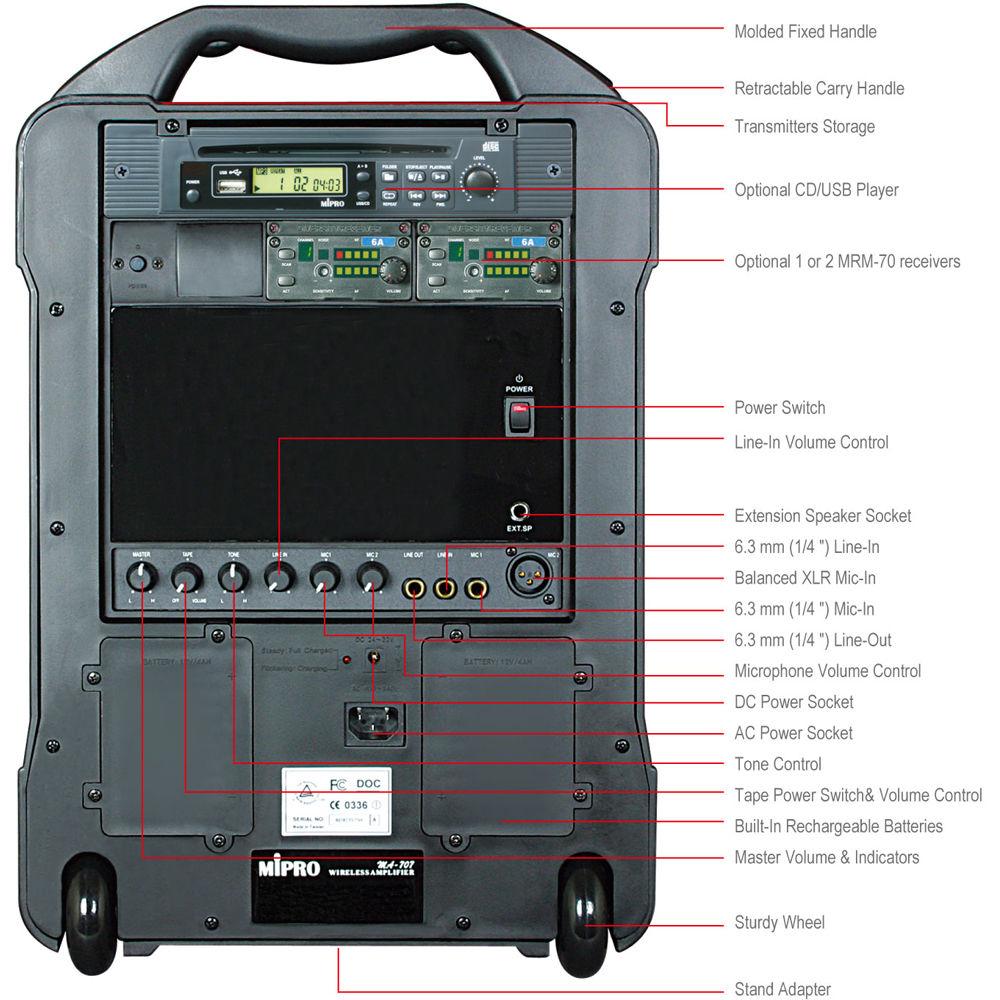

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MA-707 Portable 100W Wireless PA System from MIPRO is a modular, compact, and portable PA system that features a 100W amplifier and an 8" speaker. The unit is powered by two MB-70 lead-acid 12V rechargeable batteries (included) or via the built-in AC-switching power supply. This PA system is designed for use in medium-to-large crowds, and in applications for schools, places of worship, seminars, meetings, indoor/outdoor gatherings, and shopping center presentations and promotions. The base of the unit features a tripod-mating socket to accommodate a tripod speaker stand. It also features a retractable handle and sturdy wheels for easy portability, allowing you to use this PA system in floor as well as desk applications. - Delivers 100W of audio output for indoor/outdoor music and speech
- Full-range 8" loudspeaker
- Supports up to two receiver modules (not included) with 16 auto-selectable frequencies
- One-touch SCAN for a clear, interference-free frequency set
- One-touch ACT syncs the transmitter and receiver frequency automatically
- Interference warning indicator
- XLR and 1/4" inputs for microphones
- Line input for external iPod/MP3/CD player, output for external recordings
- Can accommodate a modular CD/USB player with remote control (available separately)
- Two built-in MB-70 sealed lead-acid rechargeable batteries provide up to 8 hours of continuous use per charge
- Built-in storage compartment for up to two handheld microphones or bodypack transmitters (not included)
- Robust, heavy-duty housing
- Built-in 100 to 240 VAC auto-switching power supply
- Three power modes: AC, rechargeable battery, and external DC jack
- Retractable handle and sturdy wheels for easy portability
- Suitable for tripod mounting, floor, or desk use
- Applications include:
Schools and places of worship
Aerobic and fitness centers
Shopping centers and trade show presentations, seminars, and meetings
Parades and fetes
Park and recreational facilities
Street performers
Emergency interventions
Weddings and funeral services
Public auctions In the Box MIPRO MA-707 Portable 100W Wireless PA System AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-707 Portable 100W Wireless PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA707PA Specs | Amplifier | Class AB; 100 W maximum output | | Speaker Type | 8" (20 cm) full-range | | Sensitivity | Typical: 98 dB
Maximum: 111 dB | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Audio Inputs | Wired: 1 x XLR, 1 x 1/4"
Wireless: Supports up to 2 wireless microphones
Line-In: Unbalanced 1/4" jack | | Audio Outputs | Unbalanced line 1/4" jack | | Extension Speaker | Via 1/4" phone jack | | Controls | Master and other individual volume controls
Tone control for wireless microphones | | Storage | 2 x handheld or bodypack transmitters (not included) | | Charge Time | Up to 8 hours (automatic charging management) | | Standby Time | Up to 8 hours | | Battery Indicator | 1 x LED indicator | | Installation | Speaker stand, flat surface, or retractable handle and wheels | | Power Supply | AC: Built-in 100 to 240 VAC auto-switching power supply
DC: 24 to 32 VDC
Battery: 2 x Built-in MB-70 12V, 4.5 Ah rechargeable gel cell battery or 2 x MB-80 (available separately) | | Dimensions | 12.2 x 17.5 x 9.4" (310 x 445 x 240 mm) | | Weight | Approximately 32.5 lb (14.8 kg) including batteries |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to MIPRO MA-707 Portable 100W Wireless PA System
| Subject: lot of static in sound wich is not continueous but intermittent | | Date: 12.04.2023 08:23:05 | Name: ALAN TAYLOR | | the unit is a few years old | | Post reply |
| Subject: Mipro MA 707 wont work | | Date: 22.01.2023 09:56:08 | Name: alan kash | | According to red light indicator its fully charged but switched on wont wok tried microphone, nothing could it be dead batteries? Bpought on marketplace without cables. alan 0499188020 | | Post reply |
| Subject: How do I remove the battery to change it please | | Date: 31.01.2022 06:47:27 | Name: Jennifer Hensby | | Hi I have bought two batteries to change the old ones in mipro 707 , can you tell me how to remove them ? Thank you | | Post reply |
