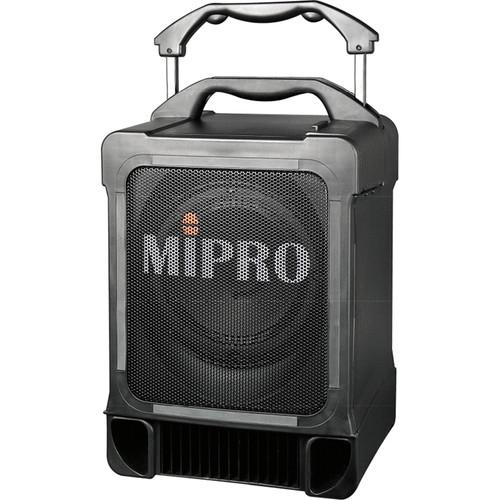

User Manual for MIPRO MA-707PADM Portable Wireless PA System with CD MP3 Player and Wireless Microphone Receiver Modules Click to enlarge the picture
Contents of the user manual for the MIPRO MA-707PADM Portable Wireless PA System
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-707PADM Portable Wireless PA System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The black MA-707PADM Portable Wireless PA System from MIPRO is a modular, compact, and portable PA system which features a 100W amplifier and an 8" speaker. It includes an MRM-70 wireless receiver module, a CDM-2P CD player module with remote control, and an ACT32H5A Wireless handheld microphone.The MRM-70 single-channel diversity-receiver module provides 16 preset UHF frequencies. You need to press the "scan" button once to autoscan for an interference-free receiver frequency. The built-in "noise" indicator detects the presence of interference. In case the indicator is lit during operation, you simply need to press the "scan" button again to autoscan for another interference-free frequency.The CDM-2P CD/USB player module can play standard 5" audio CDs, as well as USB flash disks via its USB 2.0 port. It features selection and search functions, and has random and repeat playback options. The player module includes a remote control. Headworn, lavalier, and handheld microphones with a transmitter are available to complement the system (sold separately).The ACT-32H Cardioid Condenser Mic is a handheld transmitter microphone that uniformly captures sound. It features a multi-layered metal grille which protects the capsule against impact, rolling and pop noise. The reversible end-cap prevents the power on/off switch from being locked to avoid an accidental power-off during performance.MA-707PADM is housed in a rugged enclosure and is powered by two built-in MB-70 lead-acid 12V rechargeable batteries or via the built-in AC-switching power supply. It is designed for use in medium-to-large crowds, and in applications for schools, seminars, meetings, indoor/outdoor gatherings, and shopping center presentations and promotions. The base of the MA-707PADM features a tripod-mating socket to accommodate a tripod speaker stand. This allows you to use this PA in floor or desk applications as well. - 100W for indoor/outdoor music and speech
- Full-range 8" loudspeaker
- Retractable handle and sturdy wheels for easy portability
- Suitable for tripod, floor, or desk mounting
- Built-in rechargeable batteries provide up to 8 hours of continuous use per charge
- Built-in storage compartment for transmitters/microphones
- Includes an MRM-70 receiver module
- Includes CD/USB player with a remote control
- XLR and 1/" inputs for microphones
- Line input for external iPod/MP3/CD player, output for external recordings
In the Box MIPRO MA-707PADM Portable Wireless PA System with CD/MP3 Player and Wireless Microphone Receiver Modules (Black, 506 to 530MHz) MRM-70 Receiver Module CDM-2P Audio Player Module with Remote Control ACT32H5A Wireless Handheld Microphone Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-707PADM Portable Wireless PA System with CD MP3 Player and Wireless Microphone Receiver Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA-707PADM (5AH) Specs | | | Amplifier | Class AB; 100 W maximum | | Speaker Type | 8" Full Range | | Sensitivity | Typical: 98 dB
Maximum: 111 dB | | Total Harmonic Distortion (THD) | < 1% | | Frequency Response | 50 Hz to 18 kHz | | UHF | 506 to 530 MHz | | Audio Inputs | Wired:
1 x XLR; 1 x 1/4"
Wireless:
Up to 2 wireless mics
CD Player:
CD; USB port
Line-In:
Unbalanced line 1/4" jack | | Audio Outputs | Unbalanced line 1/4" jack | | Extension Speaker | Via 1/4" jack | | Controls | Volume: Master and other individual controls
Tone control for wireless mic | | Storage | For two handheld or bodypack transmitters | | Charge Time | Up to 8 hours (automatic charging management) | | Standby Time | Up to 8 hours | | Indicators | Single LED indicator | | Power Supply | AC:
Built-in 100 to 240 VAC switching power supply
DC and Battery:
24 to 32 VDC, 12 V/4.5 aH, rechargeable gel cell battery | | Dimensions (W x H x D) | 12.2 x 17.5 x 9.4" (31.0 x 44.5 x 24.0 cm) | | Weight | Approximately 32.5 lb (14.8 kg) | | | | Model | MRM-70 | | Installation | Plug-in module The PA system can accommodate up to 2 MRM-70 modules. One is included. | | Antenna | Built-in | | | | Model | CDM-2 | | Compatibility | 5" (12 cm) audio CD and USB flash disk on MIPRO MA-707 portable PA | | Ports | 1 x USB, type A
1 x Disk loading slot | | Installation | Plug-in module |
