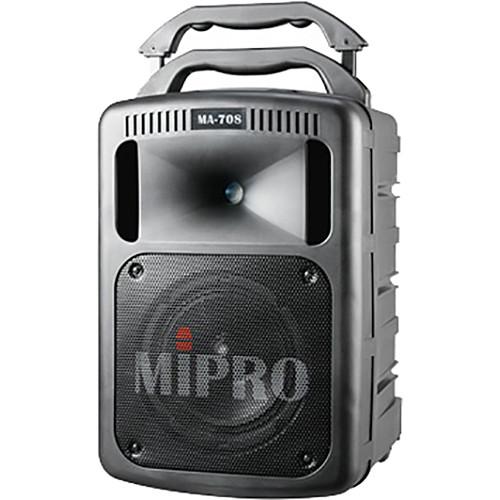

User Manual for MIPRO MA-708PADBH-5NC 190W Bluetooth Portable PA System with CD Player and Wireless Handheld Mic Click to enlarge the picture
Contents of the user manual for the MIPRO MA-708PADBH-5NC 190W Bluetooth Portable PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-708PADBH-5NC 190W Bluetooth Portable PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MIPRO MA-708PADBH-5NC includes an MA-708PAB portable PA system prepackaged with a CDM-2A CD player module with remote control, an MRM-70 single-channel wireless receiver module, and an ACT-32H handheld microphone transmitter. The MA-708PAB features a 190W Class-D amplifier, an 8" speaker, and a 1" compression driver, ideal for music playback and voice reinforcement for medium-to-large crowds, schools, places of worship, meetings, trade show presentations, and more. The single-channel wireless microphone system operates on 16 auto-scannable frequencies with true diversity reception to prevent signal interference. The ACT function provides precise and rapid frequency sync between the transmitters and receiver. Designed for clear and accurate sound reproduction, the MU-80 supercardioid, condenser microphone capsule delivers a wide frequency response with rapid transient response. The MA-708PAB is equipped with an XLR mic input, a second 1/4" mic input, RCA aux I/O, and a built-in Bluetooth receiver for streaming your music wirelessly from Bluetooth-enabled devices such as smartphones, tablets, or computers. The unit offers three power modes—AC, DC, and rechargeable batteries—and provides up to 7 hours of operation on a full charge. Housed in a rugged enclosure, the MA-708PAB features a built-in storage compartment for two handheld or bodypack transmitters, a retractable handle, and sturdy wheels for easy transport. - MA-708PAB System
-
- Class-D amplifier that produces 190W audio output
- Master volume with Memory and Standard modes
- Memory mode saves and recalls last volume level during next 'power on' whereas standard mode resets the volume level to zero
- Supports up to 4 optional diversity receiver modules with 16 auto-scannable frequencies
- One-touch Scan & ACT sync button for fast and easy channel setup
- Built-in Bluetooth music player for wireless audio streaming
- Built-in storage compartment for 2 handheld or bodypack transmitters
- Voice priority feature that mutes the music when a wireless microphone is used
- Three power modes; AC, rechargeable battery, and DC jack
- 4-segment battery indicator for battery and charging status
- Built-in AC-switching power supply for universal usage and fast battery charge
- Replaceable lithium-ion rechargeable battery pack
- Retractable handle and sturdy wheels for easy transport
- Suitable for tripod, floor, or desk-mount use
- CDM-2A CD Player Module
-
- Plays standard audio CDs
- Selection and Search functions
- Programmable tracks
- Random and repeat playback
- Wireless remote control included
- MRM-70B Single-Channel Diversity Receiver Module
-
- Advanced diversity technology for optimum reception quality
- Presets with 16 auto-scannable frequencies
- One-touch Scan for clear, interference-free reception
- One-touch ACT function syncs the transmitter and receiver frequency automatically
- Easy-to-read LED channel display
- Interference-warning indicator
- Sensitivity can be adjusted to minimize interference
- Dual PiloTone & NoiseLock circuits minimize interference
- 5-segment RF and audio meters
- Modular design allows easy installation and replacement
- Frequency range: 542 to 566 MHz (5NC)
- ACT-32H Handheld Microphone Transmitter
-
- Interchangeable capsule module for easy and fast changeovers—comes with an MU-80 supercardioid, condenser capsule
- Ergonomically designed metal housing
- Multi-layered metal grille protects the capsule against impact, rolling, and pop noise, for sound clarity
- Upper grille is easy to detach for cleaning and hygiene practice
- Proprietary capsule suspension design virtually eliminates vibration and handling noise
- Built-in, high-efficiency antenna
- Backlit LCD display shows all operational parameter information
- ACT function provides precise and rapid frequency sync to the receiver
- Frequency range: 542 to 566 MHz (5NC)
In the Box MIPRO MA-708PADBH-5NC 190W Bluetooth Portable PA System with CD Player and Wireless Handheld Mic (5NC: 542 to 566 MHz) MA-708PAB Portable 190W PA Bluetooth System (Black) CDM-2A CD Player Module with Remote Control MRM-70B (5NC) Single-Channel Receiver Module ACT-32H (5NC) Handheld Microphone Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-708PADBH-5NC 190W Bluetooth Portable PA System with CD Player and Wireless Handheld Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA708PADBH5NC Specs | | | Maximum Power Output | 190 W | | Amplifier | Class-D | | Sensitivity | Typical: 89 dB
Maximum: 108 dB | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Speaker | Tweeter: 1.0" (2.5 cm) compression driver
Bass: 8.0" (20.3 cm) woofer | | Coverage | H x V: 80° x 60° | | Audio Inputs | Wired: 1 x XLR; 1 x 1/4" (6.3 mm)
Wireless: Up to 4 wireless microphones
Audio Player: CDM-2A
Line-In: Unbalanced RCA jack | | Bluetooth | Supported | | Audio Output | Unbalanced line RCA jack | | Extension Speaker | Via 1/4" (6.3 mm) phone jack | | Volume Control | Manual or wireless via ACT-32HR | | Controls | Tone, voice priority & echo on wireless mics | | Storage | Space for up to two handheld or bodypack transmitters | | Charge Time | Up to 8 hours (automatic charging management) | | Standby Time | Up to 7 hours | | Battery Indicator | 4-level indicator | | Power Supply | AC:
Built-in 100 to 240 VAC switching power supply (maximum power consumption: 220 W)
DC & Battery:
24 to 32 VDC, 12 V, 4.5 AH rechargeable gel cell battery (2 x MB-70) or optional 2 x MB-80 | | Dimensions | 13.2 x 21.5 x 12.8" / 33.6 x 54.5 x 32.5 cm | | Weight | Approximately 36.0 lb / 16.3 kg with MB-70 batteries included | | | | Formats Supported | Standard audio CD | | | | Type | Analog, narrow-band | | Channel | Single | | Frequency Range | 542 to 566 MHz | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Channel Set-up | Scan and ACT sync | | Display Status | Channel
RF and audio meters
Interference warning indicator | | Receiving Mode | CPU-controlled diversity receiving | | Oscillation Mode | PLL synthesized
Frequency Stability: ≦
