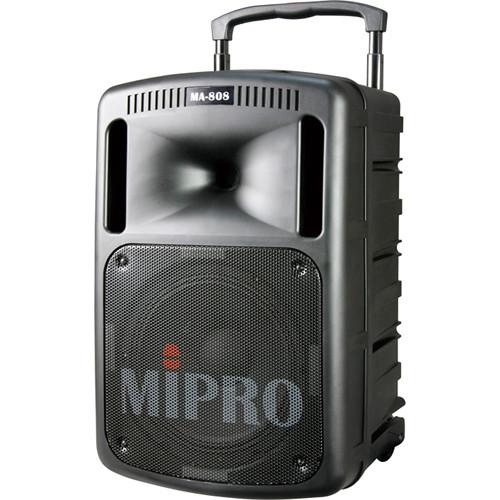

User Manual for MIPRO MA-808 Portable Sound System w CD Player and Wireless Receiver Click to enlarge the picture
Contents of the user manual for the MIPRO MA-808 Portable Sound System w
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO MA-808 Portable Sound System w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The black MA-808 Portable Sound System from Mipro is a modular, compact, and portable sound-system package for music playback and voice reinforcement. The MA-808 Portable System can be powered by internal batteries and is housed in a rugged enclosure. The basic system is comprised of a 267W power amplifier, a control panel, and a rechargeable battery power supply. With the built-in rechargeable batteries, you can use the speaker for up to 6 hours. Alternatively, the MA-808 can be plugged into AC for continuous use. For wireless audio streaming, the MA-808 PA System comes with a built-in Bluetooth music player.The ACT-32H Cardioid Condenser Mic is a handheld transmitter microphone that uniformly captures sound. It features a multi-layered metal grille which protects the capsule against impact, rolling and pop noise. The reversible end-cap prevents the power on/off switch from being locked to avoid an accidental power-off during performance. - Class-D and AB amplifier that produces 267W audio output
- Up to 123 dB SPL of loud and clear sound
- 1.5" titanium compression driver and 10" neodymium woofer
- Built-in Bluetooth music player
- Supports up to 4 optional diversity-receiver modules and CD player with remote control
- Master volume can be manually controlled or can be controlled via an ACT-32H transmitter
- Active limiter keeps sound clean when driven hard
- One-touch Scan & ACT sync button for fast and easy channel set-up
- Built-in storage compartment for 2 handheld or bodypack transmitters
- Voice priority feature that mutes the music when a wireless microphone is used
- Speakon connector for powering a passive-extension system
- Line-input for connecting external devices
- Retractable handle and sturdy wheels for easy transport
- Suitable for tripod, floor, or desk-mount use
In the Box MIPRO MA-808 Portable Sound System w/ CD Player and Wireless Receiver (Black, 506 to 530 MHz) MRM-70B Single-Channel Diversity-Receiver Module ACT-32H Handheld Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MA-808 Portable Sound System w CD Player and Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MA808PADB5AH Specs | | | Maximum Power Output | 190 W; Class-D 77 W (max); Class-AB | | THD | <1% | | Frequency Response | 50 Hz to 18 kHz | | Treble Unit | 1.5" (2.8 cm) titanium compression driver | | Bass Unit | 10.0" (25.4 cm) neodynium cone cover | | CD Player | Supports CDM-2 or DPM-3 module | | Audio Inputs | Balanced, unbalanced MIC and LINE-in RCA jack | | Audio Output | Unbalanced line RCA jack | | Bluetooth | Supported | | Volume Control | Manual or wireless via ACT-32HR | | Storage | Space for up to two handheld or bodypack transmitters | | Charge Time | Up to 8 hours (automatic charging management) | | Standby Time | Up to 6 hours | | Battery Indicator | 4-level indicator | | Receiver | Supports MRM-70B or MRM-72B | | Microphones | Wireless: ACT-32H/32HR/32HC handheld; ACT-32T/32TC bodypack
Wired: MM-107 wired dynamic microphone | | Power Supply | AC:
Built-in 100 to 240 VAC switching power supply
DC & Battery:
24 to 32 VDC, 12 V/4.5 AH rechargeable gel cell battery (2 x MB-70)or optional 2 x MB-80 | | Dimensions | 14.2 x 22.0 x 13.8" (36.0 x 56.0 x 35.0 cm) | | Weight | 45.0 lb (20.5 kg) loaded | | | | Frequency Range | UHF 480 to 934 MHz | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Receiving Mode | CPU-controlled diversity receiving | | Oscillation Mode | PLL synthesized | | Sensitivity | 6 dBμV, at S/N > 80 dB | | Spurious Emissions | <82 dB | | S/N Ratio | >100 dBA | | THD | <0.5% @ 1 kHz (Dev = 32 kHz) | | Frequency Response | 60 Hz to 15 kHz (overall system) | | Squelch | PiloTone and NoiseLock dual-squelch circuit | | Audio Output | 610 mV rms | | Power Supply | 12 to 15 VDC | | Current Consumption | <250 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions | 3.0 x 1.4 x 5.6" (7.5 x 3.5 x 14.1 cm) | | Weight | Approximately 126.0 g (4.4 oz) | | | | Frequency Range | 480 to 934 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL Synthesized | | Channel Set-up | ACT sync | | Output Power | 10 mW/30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | Group, channel, battery status and error codes | | SPL | Maximum 140 dB | | Battery Type | 2 x AA alkaline | | Current Consumption | Approximately 92 mA | | Dimensions | 2.0 x 9.2" (5.0 x 23.3 cm) | | Weight | Approximately 8.7 oz (246.0 g) excluding batteries |
