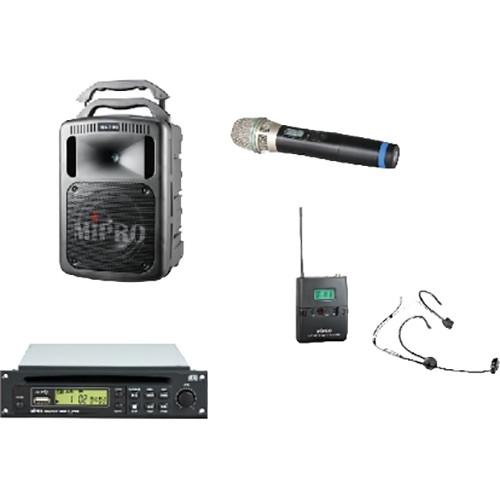

MIPRO MA708PADBCOMBO 190W Bluetooth Portable PA

User Manual for MIPRO MA708PADBCOMBO 190W Bluetooth Portable PA System with CD Player and Wireless Handheld & Headworn Mics

• Product category: Portable PA Systems MIPRO
• Brand: MIPRO
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for MIPRO Portable PA Systems

Product description

• MA-708PADBH-5A 190W Bluetooth Portable PA System with CD Player and Wireless Handheld Mic (5A: 506 to 530 MHz) The MIPRO MA-708PADBH-5A includes an MA-708PAB portable PA system prepackaged with a CDM-2A CD player module with remote control, an MRM-70B5A single-channel wireless receiver module, and an ACT-32H5A handheld microphone transmitter. The MA-708PAB features a 190W Class-D amplifier, an 8" speaker, and a 1" compression driver, ideal for music playback and voice reinforcement for medium-to-large crowds, schools, places of worship, meetings, trade show presentations, and more. The single-channel wireless microphone system operates on 16 auto-scannable frequencies with true diversity reception to prevent signal interference. The ACT function provides precise and rapid frequency sync between the transmitters and receiver. Designed for clear and accurate sound reproduction, the MU-80 supercardioid, condenser microphone capsule delivers a wide frequency response with rapid transient response. The MA-708PAB is equipped with an XLR mic input, a second 1/4" mic input, RCA aux I/O, and a built-in Bluetooth receiver for streaming your music wirelessly from Bluetooth-enabled devices such as smartphones, tablets, or computers. The unit offers three power modes—AC, DC, and rechargeable batteries—and provides up to 7 hours of operation on a full charge. Housed in a rugged enclosure, the MA-708PAB features a built-in storage compartment for two handheld or bodypack transmitters, a retractable handle, and sturdy wheels for easy transport.
  MA-708PAB System
  • • Class-D amplifier that produces 190W audio output
    • Master volume with Memory and Standard modes
    • Memory mode saves and recalls last volume level during next 'power on' whereas standard mode resets the volume level to zero
    • Supports up to 4 optional diversity receiver modules with 16 auto-scannable frequencies
    • One-touch Scan & ACT sync button for fast and easy channel setup
    • Built-in Bluetooth music player for wireless audio streaming
    • Built-in storage compartment for 2 handheld or bodypack transmitters
    • Voice priority feature that mutes the music when a wireless microphone is used
    • Three power modes: AC, rechargeable battery, and DC jack
    • 4-segment battery indicator for battery and charging status
    • Built-in AC-switching power supply for universal usage and fast battery charge
    • Replaceable lithium-ion rechargeable battery pack
    • Retractable handle and sturdy wheels for easy transport
    • Suitable for tripod, floor, or desk-mount use
  CDM-2A CD Player Module
  • • Plays standard audio CDs
    • Selection and Search functions
    • Programmable tracks
    • Random and repeat playback
    • Wireless remote control included
  MRM-70B Single-Channel Diversity Receiver Module
  • • Advanced diversity technology for optimum reception quality
    • Presets with 16 auto-scannable frequencies
    • One-touch Scan for clear, interference-free reception
    • One-touch ACT function syncs the transmitter and receiver frequency automatically
    • Easy-to-read LED channel display
    • Interference-warning indicator
    • Sensitivity can be adjusted to minimize interference
    • Dual PiloTone & NoiseLock circuits minimize interference
    • 5-segment RF and audio meters
    • Modular design allows easy installation and replacement
    • Frequency range: 506 to 530 MHz (5A)
  ACT-32H Handheld Microphone Transmitter
  • • Interchangeable capsule module for easy and fast changeovers—comes with an MU-80 supercardioid, condenser capsule
    • Ergonomically designed metal housing
    • Multi-layered metal grille protects the capsule against impact, rolling, and pop noise, for sound clarity
    • Upper grille is easy to detach for cleaning and hygiene practice
    • Proprietary capsule suspension design virtually eliminates vibration and handling noise
    • Built-in, high-efficiency antenna
    • Backlit LCD display shows all operational parameter information
    • ACT function provides precise and rapid frequency sync to the receiver
    • Frequency range: 506 to 530 MHz (5A)
  UPC: 680652973633
• ACT-30T Wireless Transmitter Bodypack (6A: 620 to 644 MHz) The MIPRO ACT-30T is a bodypack transmitter that is designed to be used with the ACT-311 & ACT-312 receivers. Housed in an 2.9 oz compact body that features a mute switch, and adjustable belt clip, the ACT-30T is designed to be worn comfortably on the belt line. The 4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cables.
  Features:
  • • Miniature, compact design
    • Top features mute switch, mini-XLR connector and antenna
    • Backlit LCD displays various parameters and indicators
    • Unique battery cover design provides easy access to operational controls and protects against accidental change of settings
    • Connector for optional MJ-70 remote mute switch cable
    • Low-spurious PLL-synthesized technology enhances frequency stability and reliability. One-touch ACT syncs the transmitter and receiver frequency automatically
    • Selectable impedance for microphone or guitar/line inputs
    • 4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable
    • Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries
    • Adjustable belt clip allows wearing transmitter in up or down position
• MU-53HN Unidirectional Cardioid Headworn Microphone (Black, TA4F) The black MU-53HN Unidirectional Cardioid Headworn Microphone by MIPRO is used to capture audio when paired with a wireless transmitter. It is designed for applications such as speech, theater, TV, broadcasting, and live performance. It features a unidirectional capsule module in a visually unobtrusive, flexible, and durable frame with soft ear hooks that require no adjustment for optimum comfort.

  The MU-53HN capsule module and cable are easily detached from the frame, and can be worn on the left or right side of the frame to suit personal preferences. The capsule shaft mount is fully rotatable. It allows for adjustments in length, direction and angle for precise positioning in relation to the speaker's mouth. This headset comes standard with MIPRO's TA4F mini-XLR plug.
  • Compatible with these MIPRO transmitters:
    ACT-80T, ACT-8Ta, ACT-70T, ACT-7T, ACT-50T, ACT-30T
  • Capsule module and cable are easily detached from the frame and can be worn on the left or right side of the frame to suit personal preferences
  • Interchangeable MU-53M unidirectional capsule module and MU-55M subminiature waterproof omnidirectional capsule module
  • Swiveling earhook design allows for inward rotation, facilitating easy storage and transport
  • Smooth, warm, natural sound
  • Features a high dynamic range and is able to withstand a maximum SPL without distortion
  • Fold-flat design for easy storage
  UPC: 680652420496

• Plug-In UHF 16-Channel Diversity 1 Receiver Module 6A

• MA-708PAB Portable 190W PA Bluetooth System (Black)

• Single-Channel Diversity Receiver Module for Select Transmitters (Frequency 5A)

• ACT-32H Cardioid Condenser Handheld Microphone Transmitter (5A)

• CDM-2A CD Player Module with Remote Control

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• MIPRO's TA4F Mini-XLR Plug

• Limited 1-Year Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MA-708PADBH-5A 190W Bluetooth Portable PA System with CD Player and Wireless Handheld Mic (5A: 506 to 530 MHz)

  Maximum Power Output	190 W
  Amplifier	Class-D
  Sensitivity	Typical: 89 dB Maximum: 108 dB
  THD	<1%
  Frequency Response	50 Hz to 18 kHz
  Speaker	Tweeter: 1.0" (2.5 cm) compression driver Bass: 8.0" (20.3 cm) woofer
  Coverage	H x V: 80° x 60°
  Audio Inputs	Wired: 1 x XLR; 1 x 1/4" (6.3 mm) Wireless: Up to 4 wireless microphones Audio Player: CDM-2A Line-In: Unbalanced RCA jack
  Bluetooth	Supported
  Audio Output	Unbalanced line RCA jack
  Extension Speaker	Via 1/4" (6.3 mm) phone jack
  Volume Control	Manual or wireless via ACT-32HR
  Controls	Tone, voice priority & echo on wireless mics
  Storage	Space for up to two handheld or bodypack transmitters
  Charge Time	Up to 8 hours (automatic charging management)
  Standby Time	Up to 7 hours
  Battery Indicator	4-level indicator
  Power Supply	AC: Built-in 100 to 240 VAC switching power supply (maximum power consumption: 220 W) DC & Battery: 24 to 32 VDC, 12 V, 4.5 AH rechargeable gel cell battery (2 x MB-70) or optional 2 x MB-80
  Dimensions	13.2 x 21.5 x 12.8" / 33.6 x 54.5 x 32.5 cm
  Weight	Approximately 36.0 lb / 16.3 kg with MB-70 batteries included

  Formats Supported	Standard audio CD

  Type	Analog, narrow-band
  Channel	Single
  Frequency Range	5A: 506 to 530 MHz
  Bandwidth	24 MHz
  Preset Channels	16
  Channel Set-up	Scan and ACT sync
  Display Status	Channel RF and audio meters Interference warning indicator
  Receiving Mode	CPU-controlled diversity receiving
  Oscillation Mode	PLL synthesized Frequency Stability: ≦ Rating 100% users recommend this product to others. And what about you? This product has already been rated by 54 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
