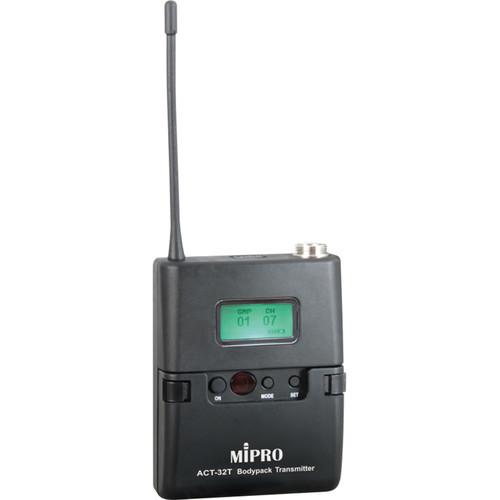

Product description The Miniature Bodypack Wireless Transmitter from MIPRO is a lightweight and compact transmitter housed in a sturdy plastic housing. On the top, the transmitter features a mute switch, a mini-XLR connector, and an antenna. It also features a back-lit LCD display that shows various parameters. The adjustable belt-clip allows wearing the transmitter in up or down position. Although the transmitter supports 480 to 934 MHz frequency, it operates on the 5NC band (542 to 566 MHz). - Battery cover is designed in such a way that it not only allows easy access to the buttons but also prevents accidental operations
- Mute button with remote-control jack for easy activation of mute function
- Automatically synchronizes with the receiver's frequency using MIPRO's patented ACT function
- Can directly match to high-low input impedance for microphone or guitar without switching
- Mini-XLR input with secure screw lock connector for lavalier/headworn mics and guitar
- High-efficiency circuitry design provides 12 to 14 hours of operation from two AA batteries (depending on the battery quality)
In the Box MIPRO Miniature Bodypack Wireless Transmitter (5NC Band: 542 to 566 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO Miniature Bodypack Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO ACT-32T (5NC) Specs | Frequency Range | Supports 480 to 934 MHz
Operates on 5NC Band: 542 to 566 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | To display group, channel, frequency, AF gain, frequency band, RF power, mute mode, lock status, battery status, and error codes | | Maximum Input Level | 0 dBV | | Connector | Mute Connector: Optional MJ-70 remote mute switch | | Battery Type | 2 x AA alkaline | | Current Consumption | High Power:
Approximately 161 mA
Low Power:
Approximately 120 mA | | Dimensions | 2.5 x 3.2 x 0.9" (6.3 x 8.2 x 2.2 cm) | | Weight | Approximately 3 oz (81 g) excluding batteries |
