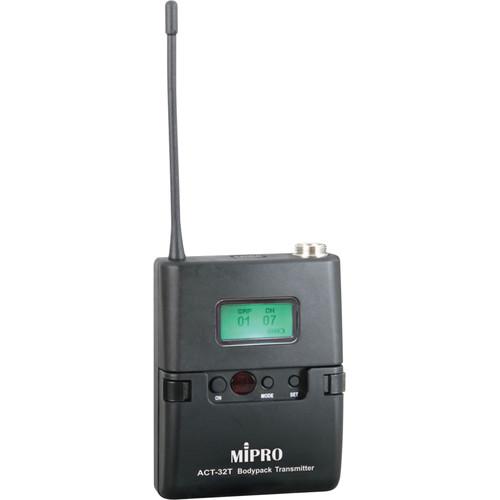

User Manual for MIPRO Miniature Bodypack Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the MIPRO Miniature Bodypack Wireless Transmitter
- Product category: Wireless Transmitters MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Wireless Transmitters
|
User manual for the MIPRO Miniature Bodypack Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description The Miniature Bodypack Wireless Transmitter from MIPRO is a lightweight and compact transmitter housed in a sturdy plastic housing. On the top, the transmitter features a mute switch, a mini-XLR connector, and an antenna. It also features a back-lit LCD display that shows various parameters. The adjustable belt-clip allows wearing the transmitter in up or down position. Although the transmitter supports 480 to 934 MHz frequency, it operates on the 6A band (620 to 644 MHz). - Battery cover is designed in such a way that it not only allows easy access to the buttons but also prevents accidental operations
- Mute button with remote-control jack for easy activation of mute function
- Automatically synchronizes with the receiver's frequency using MIPRO's patented ACT function
- Can directly match to high-low input impedance for microphone or guitar without switching
- Mini-XLR input with secure screw lock connector for lavalier/headworn mics and guitar
- High-efficiency circuitry design provides 12 to 14 hours of operation from two AA batteries (depending on the battery quality)
In the Box MIPRO Miniature Bodypack Wireless Transmitter (6A Band: 620 to 644 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO Miniature Bodypack Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO ACT32T6A Specs | Frequency Range | Supports 480 to 934 MHz
Operates on 6A Band: 620 to 644 MHz | | Bandwidth | 24 MHz | | Oscillation Mode | PLL synthesized | | Channel Set-up | ACT sync | | RF Output Power | 10 mW / 30 mW (switchable) | | Spurious Emissions | <-55 dBc | | LCD Display | To display group, channel, frequency, AF gain, frequency band, RF power, mute mode, lock status, battery status, and error codes | | Maximum Input Level | 0 dBV | | Connector | Mute Connector: Optional MJ-70 remote mute switch | | Battery Type | 2 x AA alkaline | | Current Consumption | High Power:
Approximately 161 mA
Low Power:
Approximately 120 mA | | Dimensions | 2.5 x 3.2 x 0.9" (6.3 x 8.2 x 2.2 cm) | | Weight | Approximately 3 oz (81 g) excluding batteries |
