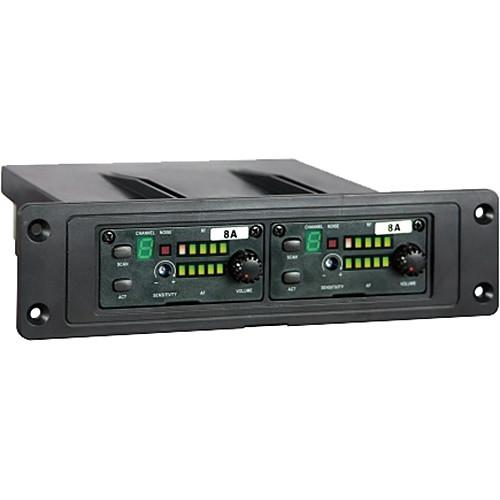

User Manual for MIPRO MRM-726C Dual-Channel Diversity Receiver Module Click to enlarge the picture
Contents of the user manual for the MIPRO MRM-726C Dual-Channel Diversity Receiver Module
- Product category: Add-On Wireless & Components MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Add-On Wireless & Components
|
User manual for the MIPRO MRM-726C Dual-Channel Diversity Receiver Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description The MRM-726C Dual-Channel Diversity Receiver Module from MIPRO is a plug-in UHF 16-channel wireless add-on/replacement receiver for the MA-708PA and the MA-808PA public address systems (sold separately). It can be used when installed in the top double slot and paired with a microphone transmitter (sold separately) for speech applications such as live stage, boardroom meetings, schools, lectures, and more. Some of the features of the MRM-726C are sixteen preset auto-scannable frequencies, a one-touch scan for one of the 16 clear, interference-free frequencies, a bright and easy-to-read channel display, a 5-segment RF and audio meter, and a warning indicator that detects potential interference. In addition, when the receiver is installed, the master volume of the MA-708 and MA-808 portables can be wirelessly controlled from a distance by the optional ACT-30Hr handheld transmitter microphone. Finally, the sensitivity on the receiver module can be adjusted to minimize interference and the dual PiloTone and NoiseLock circuits help to minimize interference. Installation or replacement of the MRM-72C takes less than a minute. In the Box MIPRO MRM-726C Dual-Channel Diversity Receiver Module (6C: 668-692 MHz) Limited 3-Year Warranty Parts Limited 1-Year Warranty Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MRM-726C Dual-Channel Diversity Receiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MRM-72 (6C) Specs | Frequency Range | 668-692 MHz | | Oscillation Mode | PLL synthesized | | Bandwidth | 24 MHz | | Preset Channels | 16 | | Receiving Mode | CPU-controlled diversity receiving | | Squelch | PiloTone & NoiseLock dual-squelch circuit | | Display Status | Channel, RF & audio meters, interference warning indicator, & sensitivity adjustor | | Sensitivity | 6 dBuV, at S/N>80 dB | | Spurious Emission | <82 dB | | Frequency Response | Overall System: 60 Hz to 15 kHz | | Signal to Noise Ratio | >100 dBA | | Total Harmonic Distortion (THD) | <0.5% @ 1 kHz (dev = 40 kHz) | | AF Output | 610 mV rms | | Power Supply | 12 to 15 VDC | | Current Consumption | <190 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions (W x H x D) | 8.7 x 2.2 x 7.5" (220 x 57 x 190 mm) | | Weight | 22 oz (622 g) |
