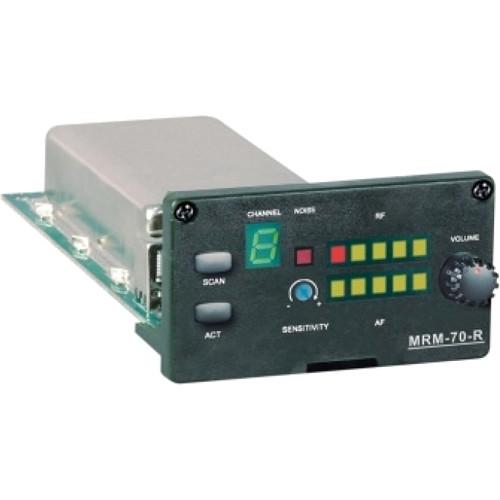

User Manual for MIPRO MRM706A Single-Channel Diversity Receiver Module Click to enlarge the picture
Contents of the user manual for the MIPRO MRM706A Single-Channel Diversity Receiver Module
- Product category: Add-On Wireless & Components MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Add-On Wireless & Components
|
User manual for the MIPRO MRM706A Single-Channel Diversity Receiver Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description The MRM706A Single-Channel Diversity Receiver Module (620 to 644 MHz) from MIPRO allows for fast and easy installation or replacement of the MA-505, MA-705, MA-707, MA-708, and MA-808 wireless portable PA systems. Installation or replacement takes less than a minute. - Advanced diversity technology for optimum reception quality
- Preset with 16 auto-scanable frequencies
- One-touch scan for one of the 16 clear & interference-free frequencies
- One-touch ACT syncs the transmitter and receiver frequency automatically
- Bright and easy-to-read channel display
- Five-segment RF and audio meters
- Dual PiloTone & NoiseLock circuits minimize interference
- Interface warning indicator
- Sensitivity can be adjusted to minimize interference
- Modular design allows easy installation and replacement
- When installed, master volumes of MA-708 & MA-808 portables can be wirelessly controlled from a distance by an ACT-30HR handheld transmitter microphone
UPC: 680652801103 In the Box MIPRO MRM706A Single-Channel Diversity Receiver Module (620 to 644 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MRM706A Single-Channel Diversity Receiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MRM706A Specs | Frequency Range | UHF 480 to 934 MHz | | Frequency Band | 620 to 644 MHz | | Oscillation Mode | PLL synthesized | | Bandwidth | 24 MHz | | Preset | 16 channels | | Receiving Mode | CPU-controlled diversity receiving | | Squelch | PiloTone & NoiseLock dual-squelch circuit | | Display | Channel, RF & audio meters, interference warning indicator & sensitivity adjustor | | Frequency Response | 60 Hz to 15 kHz (overall system) | | Sensitivity | 6 dBμV, at S/N>80 dB | | S/N Ratio | >100 dBA | | Harmonic & Spurious Emissions | <82 dB | | THD | <0.5% @ 1 kHz (32 kHz deviation) | | AF Output | 610 mV rms | | Power Supply | 12 to 15 VDC | | Current Consumption | <250 mA | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions (W x H x D) | 3.0 x 1.4 x 5.6" (7.5 x 3.5 x 14.1 cm) | | Weight | 4.4 oz (126 g) approx. | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 11.0 x 3.9 x 3.4" |
