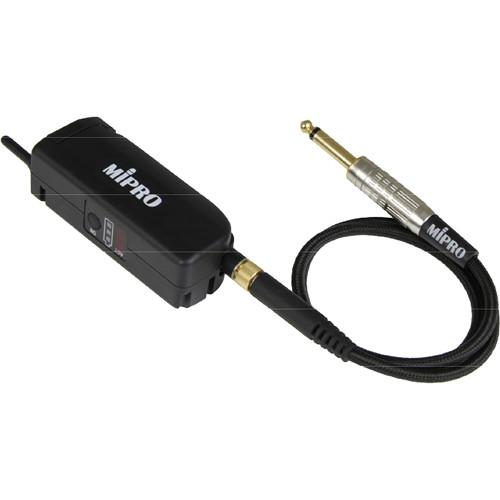

User Manual for MIPRO MT-24 2.4 GHz Digital Instrument Transmitter Click to enlarge the picture
Contents of the user manual for the MIPRO MT-24 2.4 GHz Digital Instrument
- Product category: Speaker Accessories MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Speaker Accessories
|
User manual for the MIPRO MT-24 2.4 GHz Digital Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description The MT-24 2.4 GHz Digital Instrument Transmitter from MIPRO is a digital transmitter with an integrated 3.5mm to 1/4" threaded adapter that rotates up to 90°. It can be used when plugged into a guitar, bass, electric piano, accordion, or a smartphone to transmit an audio signal to the optional wireless ACT-2400 series receiver, or an optional MRM-24 receiver module integrated into a portable PA system for amplification. Additionally, true diversity technology and a stable, digital FSK modulation circuit eliminate signal dropouts to ensure good reception quality. - Easy to use and the plug can be rotated up to 90°.
- Operates in the 2.4 GHz user license-free ISM band.
- True diversity technology and stable digital FSK modulation circuit eliminate signal dropouts and ensure best reception quality.
- Combining FHSS frequency-hopping technique with adaptive tracking algorithm to prevent interference from other 2.4 GHz wireless devices.
- Eliminates compander noise that exists in analog systems.
- Transmitter has high-efficiency circuitry design. The included single rechargeable lithium battery can be removed or interchanged for charging. The intelligent battery charger maintains a high charge capacity for up to 600 charge cycles for a cost saving that is also environmentally friendly.
- Easily replaceable battery or recharge the MT-24 directly with an adapter plug.
In the Box MIPRO MT-24 2.4 GHz Digital Instrument Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO MT-24 2.4 GHz Digital Instrument Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO MT24 Specs | Frequency Range | 2.4 to 2.4835 GHz | | RF Output Power | 2 mW / 10 mW switchable (country dependent) | | Transmitting Mode | Frequency hopping | | Maximum Audio Input Level | 6.5 dBV | | Audio Sampling | 24-bit / 44.1 kHz rate | | Frequency Response | 20 Hz to 20 kHz | | Latency | < 4.0 ms | | Battery Meter | 4-level green/red LED display | | Impedance | 1.0 MOhms | | Connector | 1/8" to 1/4" / 3.5 mm to 6.3 mm adapter | | Battery Type | ICR 18500 rechargeable lithium battery | | Current Consumption | 138 mA | | Operating Time | A 25-minute quick charge provides up to 1 hour usage. Minimum 10 hours of operation per 4-hour full charge | | Dimensions (W x H x D) | 3.3 x 1.4 x 1.1" / 8.4 x 3.5 x 2.9 cm | | Weight | 2.2 oz / 61.0 g excluding battery |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
