User Manual for MIPRO PHONICBOOST6C Remote-Controlled Wireless Classroom PA System with Multi-Function Handheld Wireless Microphone Click to enlarge the picture
Contents of the user manual for the MIPRO PHONICBOOST6C Remote-Controlled Wireless Classroom PA
- Product category: Portable PA Systems MIPRO
- Brand: MIPRO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MIPRO Portable PA Systems
|
User manual for the MIPRO PHONICBOOST6C Remote-Controlled Wireless Classroom PA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MIPRO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MIPRO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MIPRO product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The MIPRO PHONICBOOST6C includes the remote-controlled MA-101ACT wireless classroom PA system and the MT-101ACT multi-function handheld wireless microphone. The system allows teachers to carry their own personal microphone from classroom to classroom without having to share their mic; a practice conducive to improving hygiene. The speaker features a 5" driver powered by a 45W amplifier, which together deliver a loud and clear sound ideal for voice and music sound reinforcement in classrooms, meeting rooms, training rooms, and more. The same MT-101ACT wireless microphone can be used in up to 97 different rooms, all with different frequencies to avoid crosstalk or loss of privacy. As they enter a room, teachers can use the slide control on the side of the mic to wirelessly switch the speaker on or off and adjust the volume. A 3.5mm aux input makes it possible to connect an external mic or portable music player for sound amplification. Compact and lightweight (at 5.5 oz), the MT-101ACT can be handheld or worn as a neck lanyard with an optional lavalier or headset mic, for hands-free operation. The mic comes with a removable, rechargeable battery and the MP-101ACT drop-in charger, and can operate up to 24 hours on a full charge. The PHONICBOOST6C package ships with a universal power supply and a bracket suitable for mounting the speaker on a wall or ceiling. - MA-101ACT Wireless Classroom PA System
-
- Allows teachers to carry their own wireless microphone from classroom to classroom
- Powerful 45W amplifier and 5 " full-range speaker deliver a loud and clear sound
- Built-in receiver module can be swapped to work with different frequency bands
- Diversity reception for extended and reliable wireless connection
- Suitable for wall or ceiling mounting (wall-mount bracket included)
- Power on/off and volume adjustment is remotely controlled via the wireless transmitter microphone
- Detachable 100-240 VAC auto-switching power supply
- Receives in the 6C: 668 to 692 MHz frequency range
- MT-101ACT Multi-Function Handheld Wireless Microphone
-
- Teachers do not have to share their mic, for improved hygiene
- Same personal wireless microphone can be used in up to 97 different rooms, all with different frequencies to avoid crosstalk or loss of privacy
- Lightweight design at 5.5 oz—can be handheld or worn as a neck lanyard for hands-free operation
- Slide control for wireless volume adjustment and turning the speaker on or off
- Built-in 3.5mm mini-jack mic/line input (mono) accepts an external lavalier or headset mic, or an external portable music player for sound amplification
- Powered via a built-in rechargeable battery or disposable alkaline batteries
- Includes MP-101ACT drop-in charger for microphone for easy battery charging
- Up to 24 hours of operation on a 3-hour fast charge
- Transmits in the 6C: 668 to 692 MHz frequency range

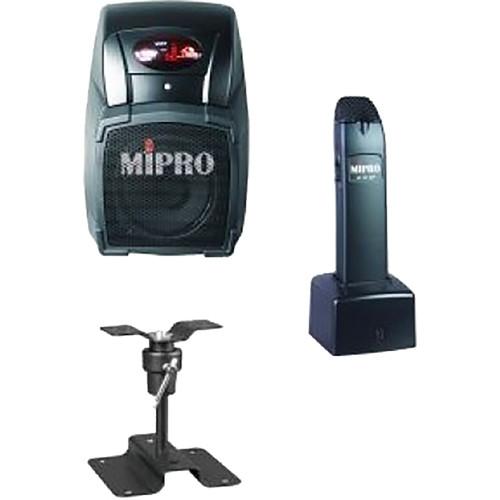

In the Box MIPRO PHONICBOOST6C Remote-Controlled Wireless Classroom PA System with Multi-Function Handheld Wireless Microphone (6C: 668 to 692 MHz) MA-101ACT Wireless Classroom PA System MT-101ACT Multi-Function Handheld Wireless Microphone MP-101ACT Microphone Drop-In Charger MS-11 Wall-Mount Bracket Detachable 18 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MIPRO PHONICBOOST6C Remote-Controlled Wireless Classroom PA System with Multi-Function Handheld Wireless Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMIPRO PHONICBOOST6C Specs | | | Maximum Output Power | 45 W | | Speaker | 5" | | Sensitivity | Typical: 94 dB
Maximum: 103 dB | | Frequency Response | 60 Hz to 15 kHz | | THD | < 1% | | Wireless Frequency Range | 6C: 668 to 692 MHz | | Receiver Channel | Single | | Preset Channels | 97 selectable UHF frequencies | | Channel Set-up | Scan and ACT sync | | Antenna | Built-in | | Power | Power Adapter: 18 VDC Input Voltage: 100-240 VAC, auto-switching | | Mounting | Wall mounting | | Color | Black | | Dimensions | 7.5
