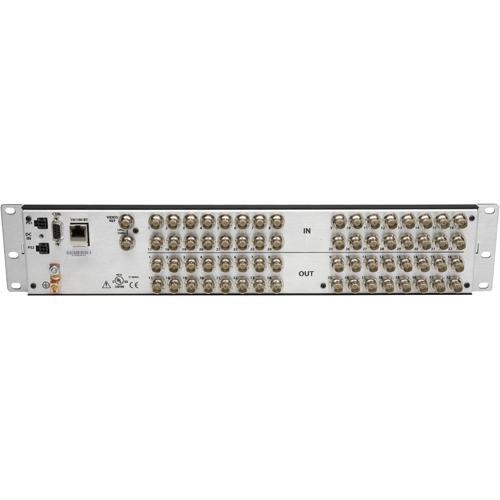

User Manual for Miranda CR3204-3GIG NVISION Compact Router Click to enlarge the picture
Contents of the user manual for the Miranda CR3204-3GIG NVISION Compact Router
- Product category: Routers & Switchers Miranda
- Brand: Miranda
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miranda Routers & Switchers
|
User manual for the Miranda CR3204-3GIG NVISION Compact Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miranda product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miranda user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miranda product will considerably shorten its lifespan!
|
Product description The CR3204-3GIG NVISION Compact Router from Miranda is a 3Gbps HD/SD digital video router that features (32) inputs and (4) outputs. It is DVB-ASI compliant. The router can be scaled by combining it with other units in the NVISION series. It is housed in a lightweight, rackmountable chassis. Its power supply is rated for over 500,000 hours of use and an optional, redundant power supply is separately available to ensure uninterrupted operation. The unit includes Compact Router System Configurator (CRSC) software to facilitate configuration of routers, including salvos and partitioning. Software also allows for programming of remote control panels and configuration of network settings.Multiple control options are available. The machine comes configured with standard Ethernet and serial ports. Separately available control panels and remote panel expansion kits may also be used. - 32 x 4 3Gbps HD/SD Digital Video Router
- This model routes 3Gbps HD/SD digital video.
- DVB-ASI Compliant
- It supports the DVB-ASI standard.
- Scalable
- The capacity and functionality of this unit can be extended by combining it with other units in the NVISION series of routers.
- Power
- A power supply with a life of approximately 500,000 hours is included, but an optional, redundant power supply can also be added to ensure uninterrupted operation.
- Bundled Software
- The router comes bundled with software designed to facilitate its configuration and management.
- Multiple Control Options
- It can be managed via its Ethernet or serial ports, or separately available control panels can be employed.
In the Box Miranda CR3204-3GIG NVISION Compact Router Power Supply Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Miranda CR3204-3GIG NVISION Compact Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiranda CR3204-3GIG Specs | Inputs/Outputs | Inputs: 32
Outputs: 4
Type: High-definition serial digital video
Standard: SMPTE 259M-C, 292M and 424M
DataRate:
Auto reclocking at 270Mbps and 1.483, 1.485, 2.967, 2.970Gbps
Auto bypass with pass-through from 19Mbps to 3.0Gbps
Connector: BNC
Impedance: 75 Ohms
Cable Equalization:
400m Belden 1694A
250m Belden 1855A at 270Mbps
150m Belden 1694A
100m Belden 1855A at 1.5Gbps
100m Belden 1694A
45m Belden 1855A at 3.0Gbps
RouterPath: Non-inverting
OutputLevel: 800 mVp-p +/-10%
Input/OutputReturnLoss: > 15dB, 5MHz to 1.5GHz> 10dB, 1.5GHz to 3.0GHz
OutputRise/FallTime: < 135ps
OutputOvershoot: < 10% of amplitude max
OutputAlignmentJitter: < 0.3 UIpp from 100kHz to 300MHz
OutputTimingJitter: < 2.0 UIpp from 10Hz to 100kHz | | Control | Serial Control
Type: 1 Serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9Ethernet
Type: 10/100 Base T
Standard: IEEE 802.3
Protocol: NVISION Ethernet protocol
Connector: 1, RJ-45 | | Power | AC Input: 90 to 250VAC, 50/60Hz, Auto-ranging
AC Fuses: No user serviceable fuses
AC Connectors: 2, 12VDC with external modules
AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
AC Power Usage: 20 to 35W
RegulatoryCompliance: UL Listed and CE Compliant | | Dimensions (HxWxD) | 3.5 x 19 x 1.38" (45 x 483 x 89mm)
2RU | | Weight | 4 lbs (8.8kg) |
