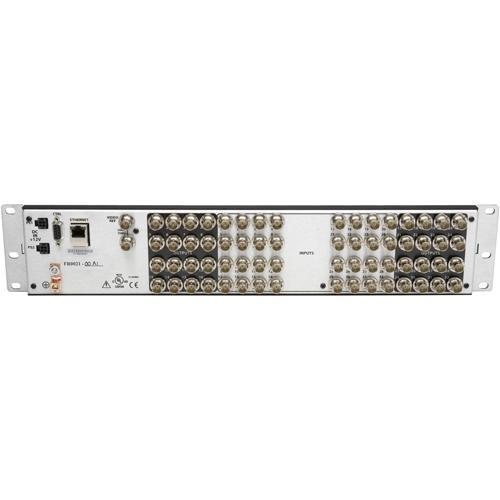

User Manual for Miranda CR3232-AV NVISION Compact Router Click to enlarge the picture
Contents of the user manual for the Miranda CR3232-AV NVISION Compact Router
- Product category: Routers & Switchers Miranda
- Brand: Miranda
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Miranda Routers & Switchers
|
User manual for the Miranda CR3232-AV NVISION Compact Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Miranda product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Miranda user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Miranda product will considerably shorten its lifespan!
|
Product description The CR3232-AV NVISION Compact Router from Miranda is an analog composite video router that features (32) inputs and (32) outputs. It is designed to offer exceptional signal-path linearity, low differential gain, and low differential phase to ensure no visible signal distortion. It supports both NTSC & PAL standards. The router can be scaled by combining it with other units in the NVISION series. It is housed in a lightweight, rackmountable chassis. Its power supply is rated for over 500,000 hours of use and an optional, redundant power supply is separately available to ensure uninterrupted operation. The unit includes Compact Router System Configurator (CRSC) software to facilitate configuration of routers, including salvos and partitioning. Software also allows for programming of remote control panels and configuration of network settings. Multiple control options are available. The machine comes configured with standard Ethernet and serial ports. Separately available control panels and remote panel expansion kits may also be used. - 32 x 32 Analog Composite Video Router
- This model routes analog composite video.
- NTSC & PAL
- It supports NTSC & PAL standards.
- Scalable
- The capacity and functionality of this unit can be extended by combining it with other units in the NVISION series of routers.
- Power
- A power supply with a life of approximately 500,000 hours is included, but an optional, redundant power supply can also be added to ensure uninterrupted operation.
- Bundled Software
- The router comes bundled with software designed to facilitate its configuration and management.
- Multiple Control Options
- It can be managed via its Ethernet or serial ports, or separately available control panels can be employed.
In the Box Miranda CR3232-AV NVISION Compact Router Power Supply Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Miranda CR3232-AV NVISION Compact Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMiranda CR3232-AV Specs | Inputs/Outputs | Inputs: 32
Outputs: 32
Type: Analog video
Standard: NTSC, PAL
Connector: BNC
Impedance: 75 ohm
InputRet. Loss: > 45dB, DC to 6MHz> 30dB, 6MHz to 30MHz
OutputRET. Loss: > 45dB, DC to 6MHz> 40dB, 6MHz to 30MHz
InputLevel: 1Vp-p, nominal
OutputLevel: 1Vp-p, nominal
OutputDC Offset: 0V +/-30mV relative to backporch
InputRange: +/-2 V
InsertionLoss: 0 dB +/-0.1dB, any input to any output
FrequencyResponse: 0dBr +/-0.05dB, DC to 6MHz
DifferentialGain: < 0.1%
DifferentialPhase: < 0.1 degrees
Tilt: < 0.1%
Delay Scatter: < +/-65degrees at sub-carrier (PAL or NTSC) any input to any output
NoiseSpectrum: > 60dB test signal; luminance ramp
CMRR: > 60dB at 120Hz
Crosstalk: > 65dB at sub-carrier frequency
Output Isolation: > 90dB at sub-carrier frequency DC Coupled System | | Control | Serial Control
Type: 1 Serial port
Standard: SMPTE 207M, EIA-422, configurable
Connector: 1, DE-9 Ethernet
Type: 10/100 Base T
Standard: IEEE 802.3
Protocol: NVISION Ethernet protocol
Connector: 1, RJ-45 | | Power | AC Input: 90 to 250VAC, 50/60Hz, Auto-ranging
AC Fuses: No user serviceable fuses
AC Connectors: 2, 12VDC with external modules
AC Power: PS0001-00, HB0321-00, 50 W, one IEC 320
AC Power Usage: 9 to 16W
RegulatoryCompliance: UL Listed and CE Compliant | | Dimensions (HxWxD) | 3.5 x 19 x 1.38" (45 x 483 x 89mm)
2RU | | Weight | 4 lbs (8.8kg) | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 20.7 x 9.2 x 5.8" |
