User Manual for MIRFAK Moin Micro LED Photo and Video Light

Click to enlarge the picture
MIRFAK Moin Micro LED Photo and Video Light Contents of the user manual for the MIRFAK Moin Micro LED Photo and
  • Product category: On Camera Lights MIRFAK
  • Brand: MIRFAK
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for MIRFAK On Camera Lights

MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light MIRFAK Moin Micro LED Photo and Video Light
User manual for the MIRFAK Moin Micro LED Photo and contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any MIRFAK product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official MIRFAK user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a MIRFAK product will considerably shorten its lifespan!



Product description

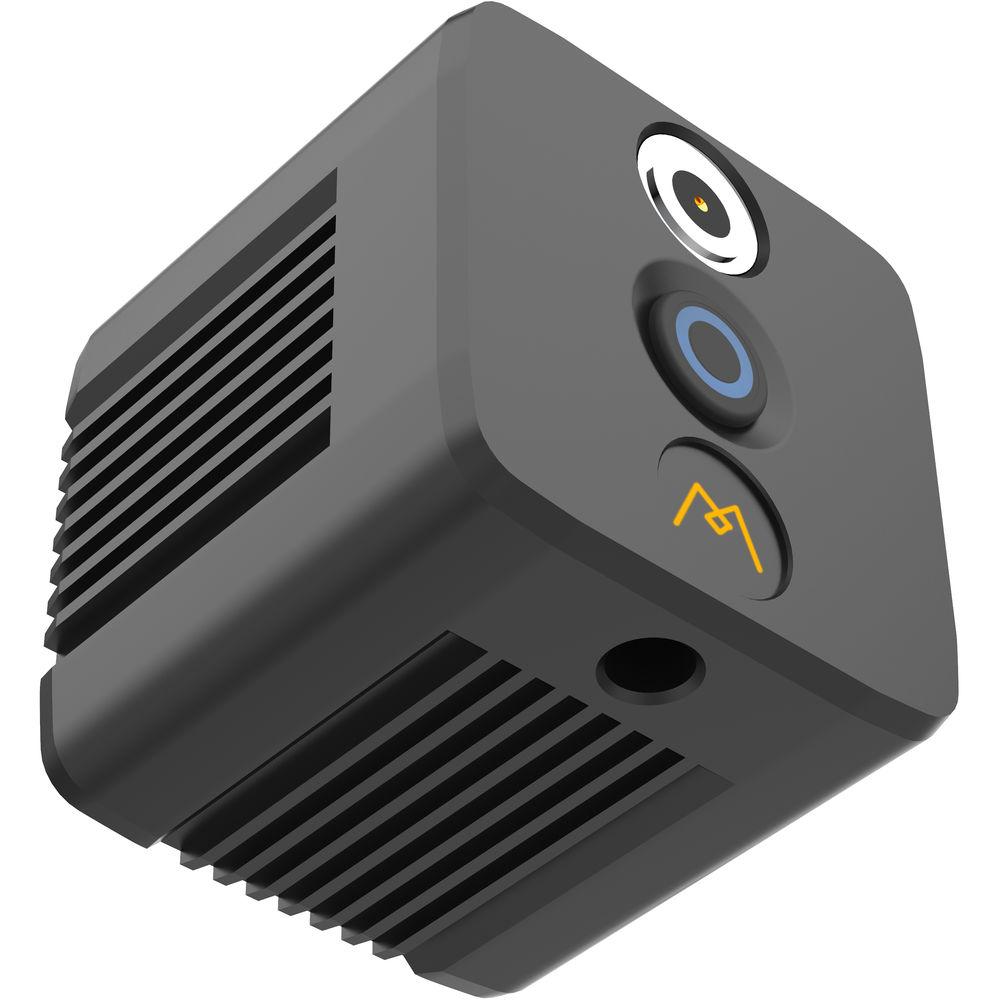

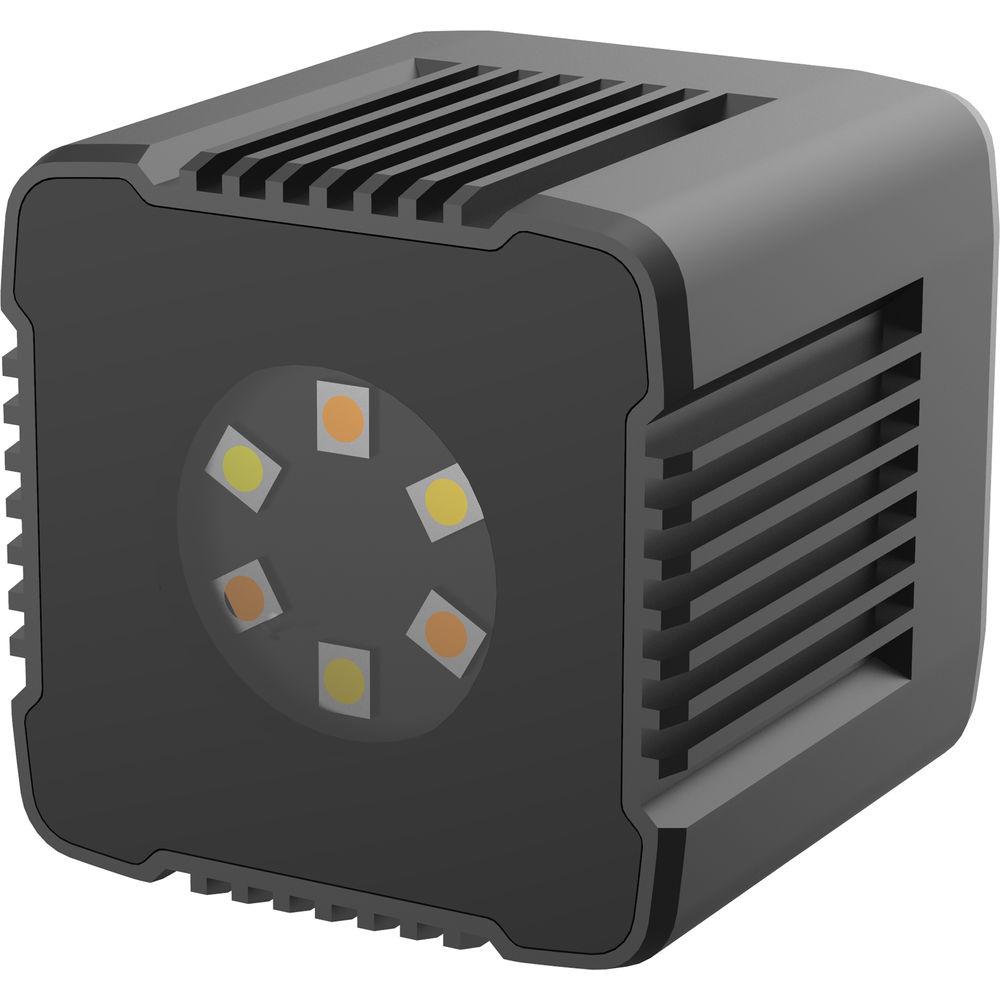

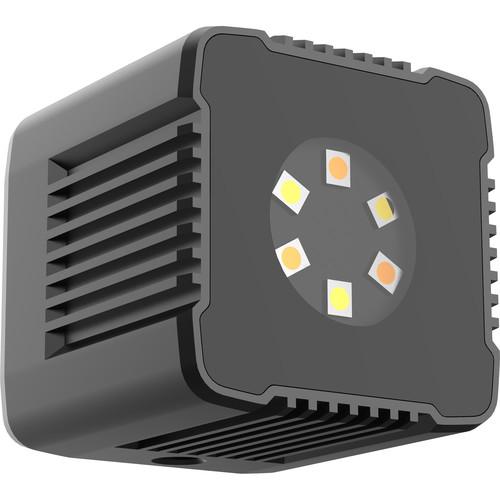

Mirfak is the brightest star in the constellation Perseus, which aptly characterizes this tiny but powerful Mirfak Moin Micro LED Photo and Video Light. With a variable color temperature range of 3200 to 5600K and a maximum brightness of 1000 lumens, this tiny 1.6" cube can light your video or photographic scene with ease.

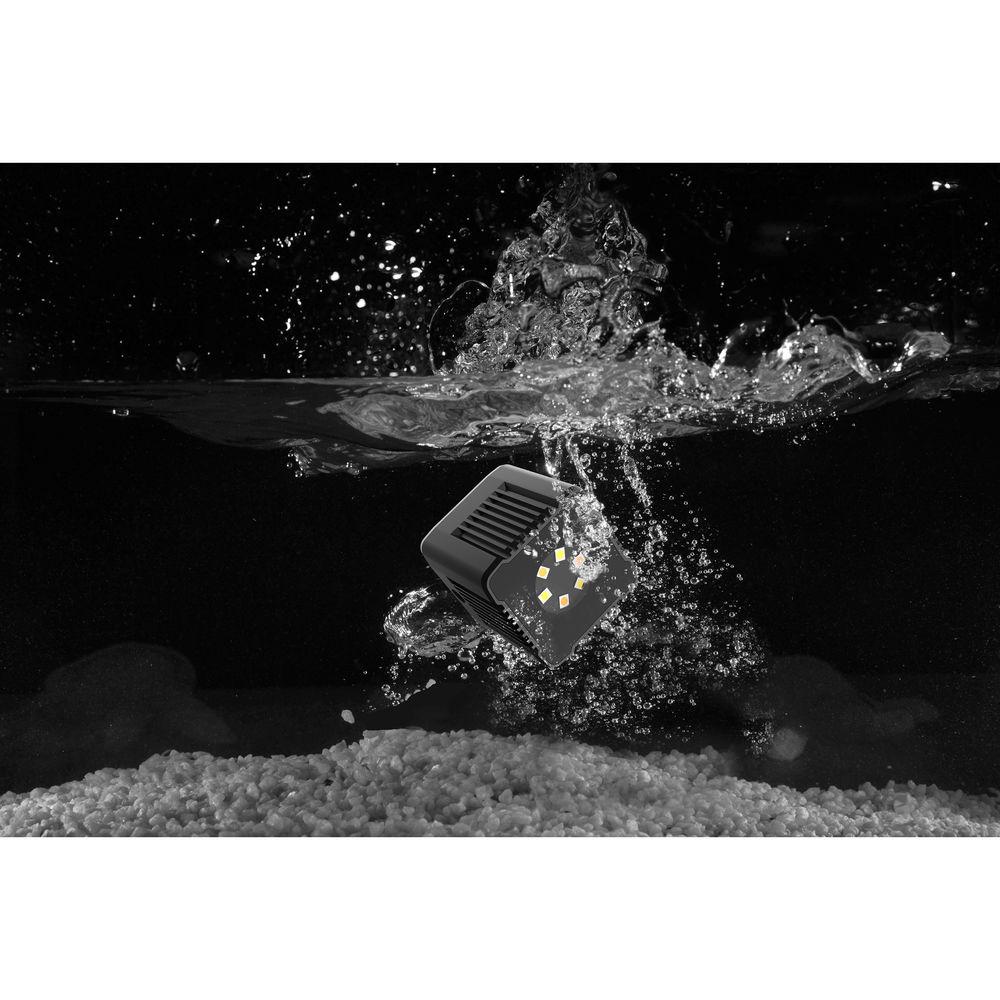

The Moin features a CRI/TLCI rating of ± 90, which reflects accurate color rendering. It is also rated IP68 waterproof up to 32.8'. Mounting options include a 1/4"-20 thread and a magnet interface that allows you to attach the camera to a metal surface such as the back of a smartphone. The magnet doubles as a 5V, 2A charging port, which allows you to charge the built-in 800mAh Li-ion battery using the included USB cable. The battery lasts approximately two hours at 100% brightness and up to 10 hours at 2% brightness.

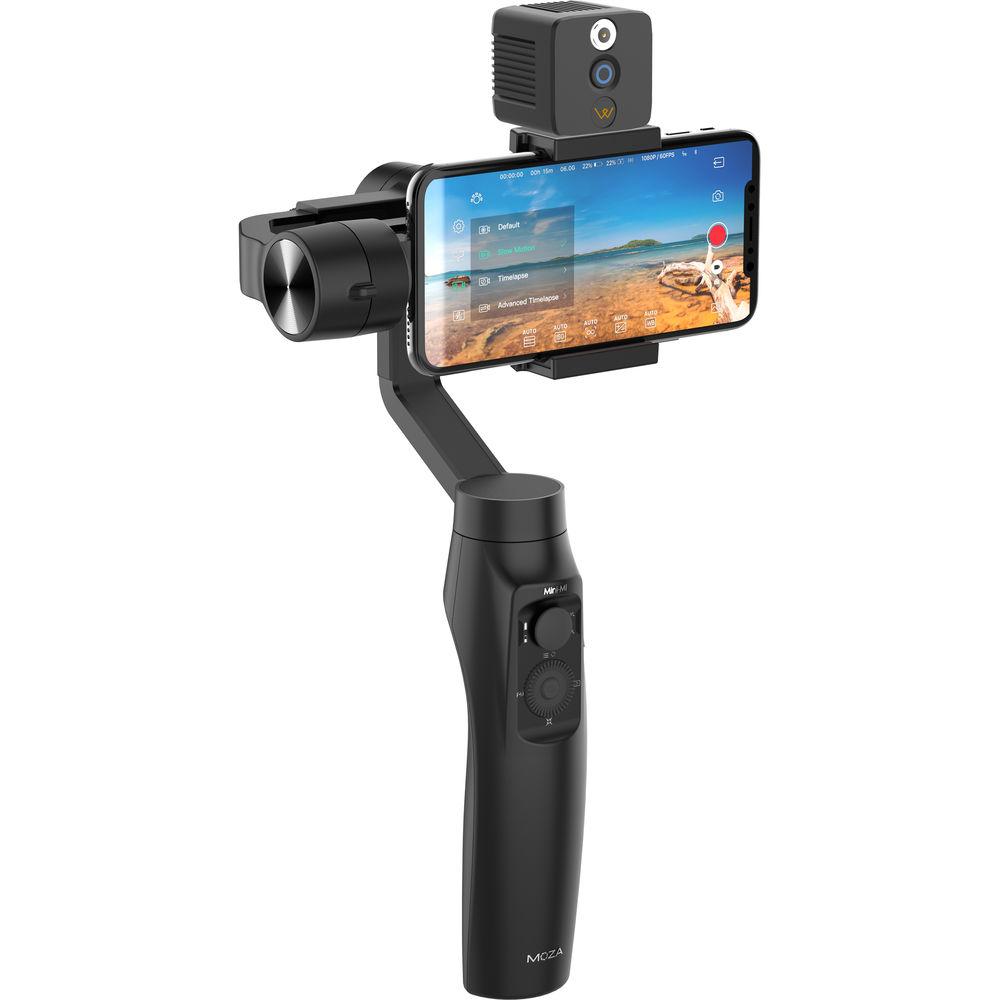

The Moin also supports Bluetooth and can be controlled by the Moin smartphone app for iPhone and Android. The app allows you to adjust brightness, color temperature, and strobing, and schedule on/off times. Also included with the Moin are a white diffusion filter and a filter adapter ring.
  • 3200 to 5600K color temperature; CRI/TLCI 90 rating for accurate color
  • 1000-lumen brightness from six LEDs
  • Built-in 7.4V 800mAh lithium-ion battery lasts approximately two hours at 100% brightness
  • Mounts via 1/4"-20 thread or magnet; magnet doubles as 5V, 2A charging port
  • IP68 waterproof design
UPC: 712424354934 In the Box MIRFAK Moin Micro LED Photo and Video Light
  • Adapter Ring
  • White Diffusion Filter
  • USB Charging Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the MIRFAK Moin Micro LED Photo and Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for MIRFAK Moin Micro LED Photo and Video Light can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for MIRFAK Moin Micro LED Photo and Video Light can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the MIRFAK Moin Micro LED Photo and Video Light can be downloaded in PDF format at the link stated below.
    Download PDF user manual - MIRFAK Moin Micro LED Photo and Video LightDownload PDF User Manual - https://www.search-manual.com/ upload/ mirfak-moin-micro-led-photo-and-video-light-245549-user-manual.pdf
    (PDF file, 1.35 MB)


    Technical parameters

    MIRFAK Moin Specs

    Color Temperature 3200 to 5600K
    Color Accuracy Standard CRI 90
    TLCI 90
    Lumens 1000
    Dimming Yes, 0 to 100%
    Number of LEDs 6
    Capacity (mAh) 800 mAh
    Battery Chemistry Lithium-Ion
    Battery Runtime 2 Hours
    Operating Voltage 7.4 VDC
    DC Input Power 5 VDC at 2 A
    Max Power Consumption 4 W
    Power Input Connector Proprietary
    Wireless Protocol Bluetooth (Unspecified Type)
    Mount Type 1/4"-20 Female, Magnetic
    IP Rating IP68
    Dimensions 1.6 x 1.6 x 1.6" / 40 x 40 x 40 mm
    Weight 2.43 oz / 69 g
    Package Weight 0.53 lb
    Box Dimensions (LxWxH) 4.0 x 2.9 x 2.6"
