User Manual for Mitakon Zhongyi FreeWalker 24mm f 1.7 Lens for Micro Four Thirds Click to enlarge the picture
Contents of the user manual for the Mitakon Zhongyi FreeWalker 24mm f 1.7
- Product category: Mirrorless System Lenses Mitakon Zhongyi
- Brand: Mitakon Zhongyi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mitakon Zhongyi Mirrorless System Lenses
 |
User manual for the Mitakon Zhongyi FreeWalker 24mm f 1.7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mitakon Zhongyi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mitakon Zhongyi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mitakon Zhongyi product will considerably shorten its lifespan!
|

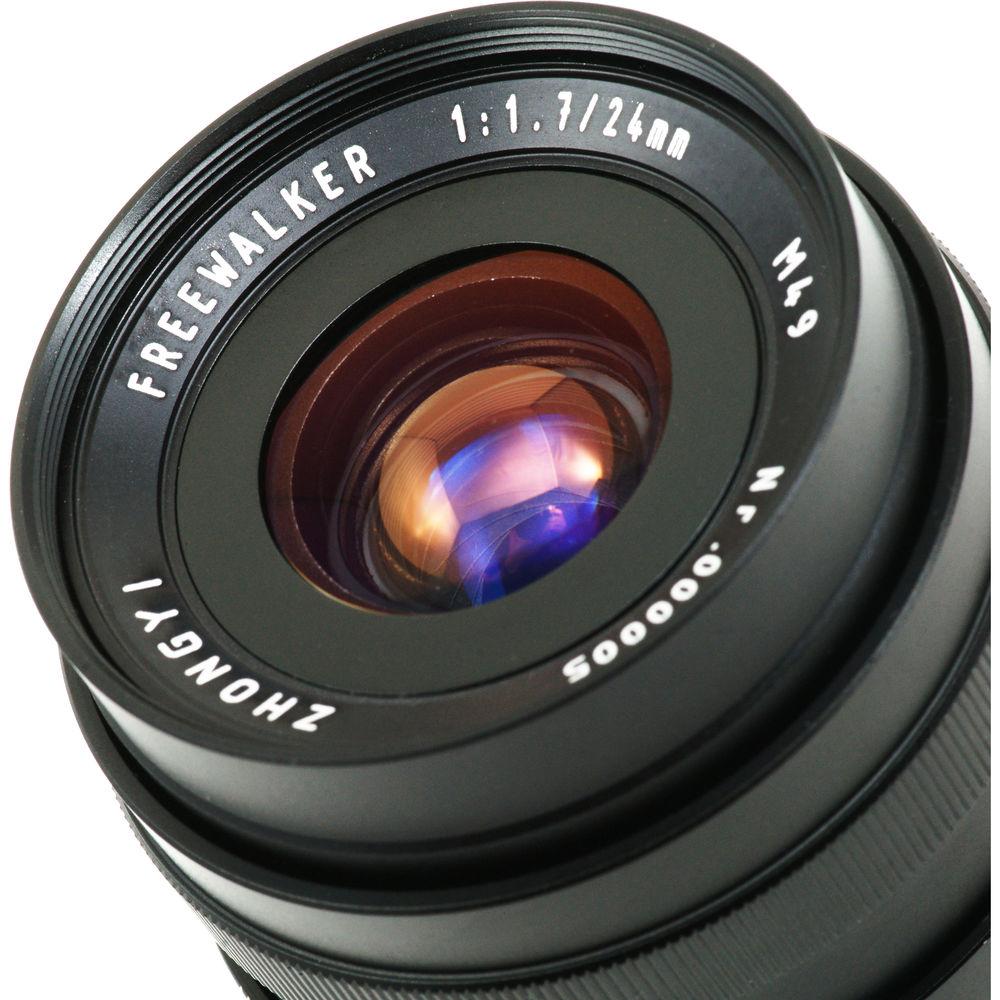

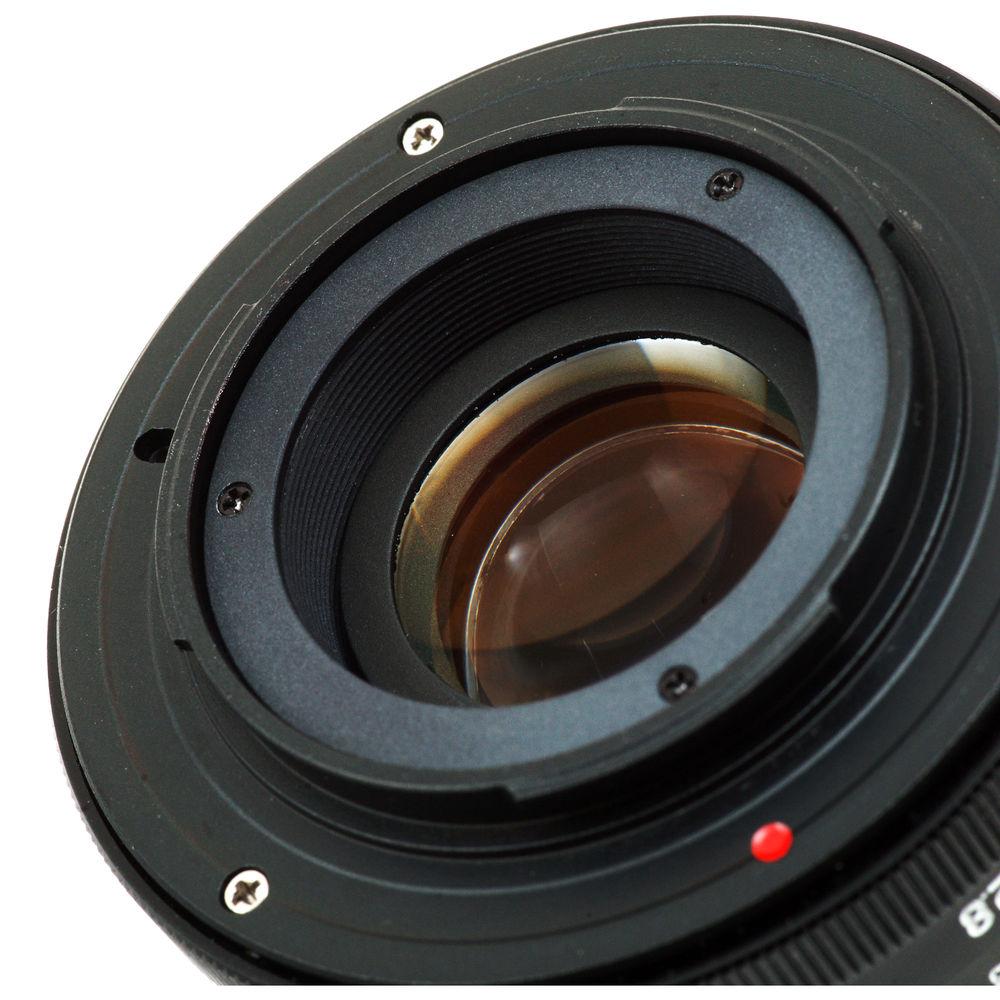

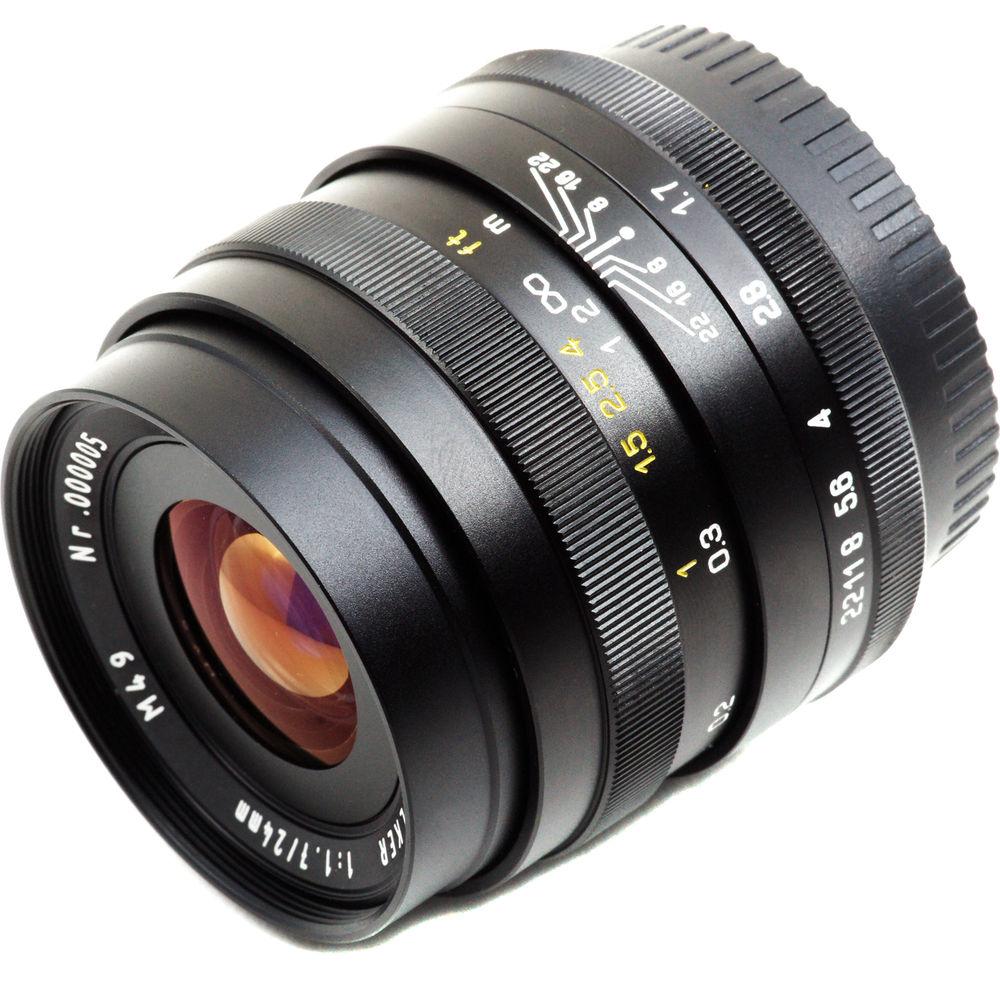

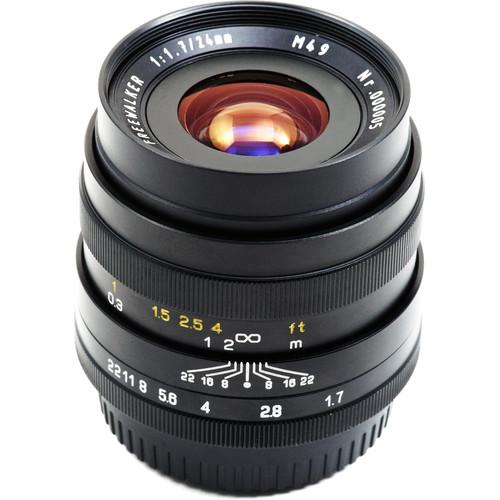

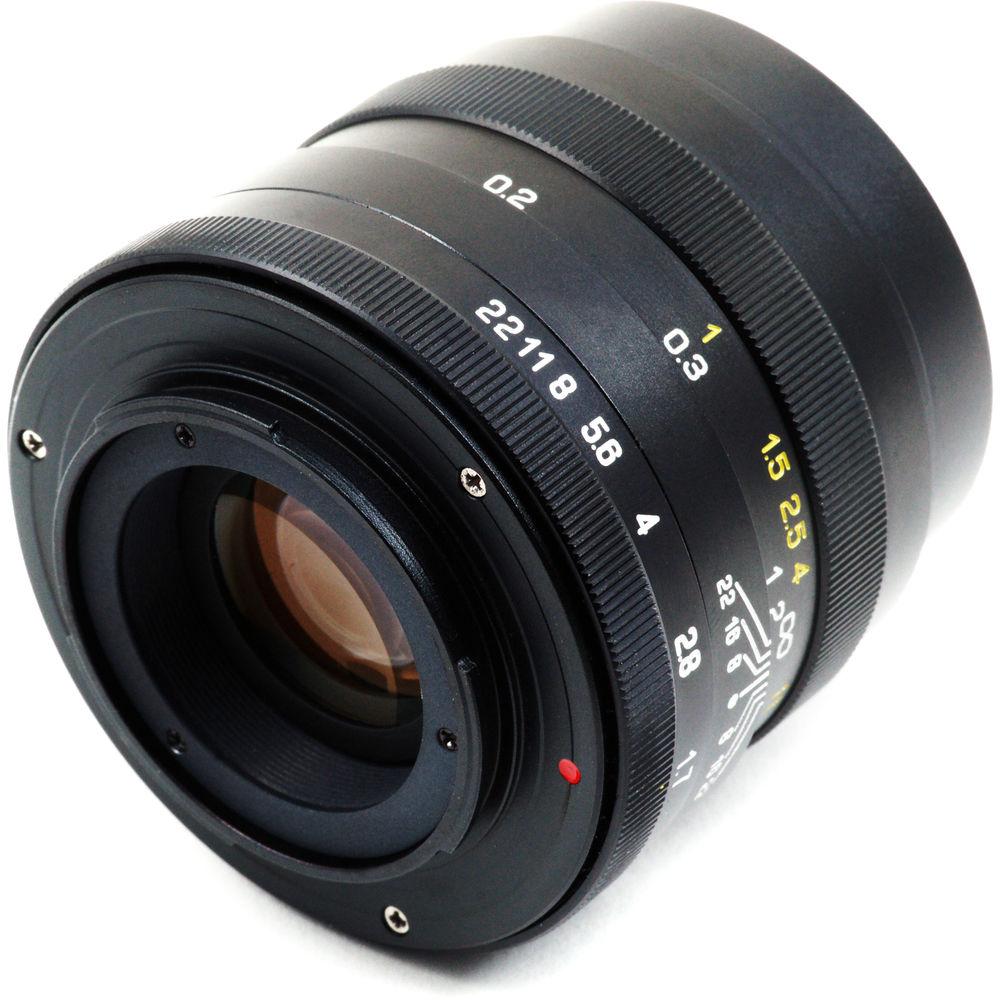

Product description A fast prime providing a slightly wider than normal perspective, the FreeWalker 24mm f/1.7 Lens from Mitakon Zhongyi is designed for Micro Four Thirds mirrorless cameras, where it provides a 48mm equivalent focal length. The bright f/1.7 maximum aperture benefits working in difficult lighting conditions and also affords increased control over depth of field and focus position for shallow depth of field photography. Extra-low dispersion glass has been incorporated into the optical design to control aberrations and distortions for increased clarity and color accuracy while a metal lens barrel and mount provide enhanced durability and handling during use. The lens is also characterized by its manual focus design, along with distance and depth of field scales, along with the ability to focus as closely as 5.9" away for working with close-up subjects. Combining the bright maximum aperture, manual focus control, and an advanced optical design, this lens' natural perspective is ideally suited to everyday use for both still and video applications. - Slightly wider than normal 24mm prime is compatible with mirrorless Micro Four Thirds digital cameras where it will provide a 48mm equivalent focal length.
- Fast f/1.7 maximum aperture benefits working in difficult lighting conditions and also enables greater control over your focus position to benefit the use of selective focus and shallow depth of field techniques.
- Extra-low dispersion glass is incorporated within the nine-elements-in-eight-groups design to minimize chromatic aberrations and distortions for greater clarity, color accuracy, and sharpness throughout the aperture range.
- Manual focus design pairs with printed distance and depth of field scales for greater focusing precision as close as 5.9" away.
- A 12-blade diaphragm contributes to a pleasing out-of-focus quality when working with selective focus techniques.
UPC: 687927782433 In the Box Mitakon Zhongyi FreeWalker 24mm f/1.7 Lens for Micro Four Thirds Front and Rear Lens Caps Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mitakon Zhongyi FreeWalker 24mm f 1.7 Lens for Micro Four Thirds in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMitakon Zhongyi FreeWalker 24mm f/1.7 Specs | Focal Length | 24mm (35mm Equivalent Focal Length: 48mm) | | Maximum Aperture | f/1.7 | | Minimum Aperture | f/22 | | Lens Mount | Micro Four Thirds | | Format Compatibility | Micro Four Thirds | | Minimum Focus Distance | 5.91" / 15 cm | | Optical Design | 9 Elements in 8 Groups | | Diaphragm Blades | 12 | | Focus Type | Manual Focus | | Image Stabilization | None | | Filter Size | 49 mm (Front) | | Dimensions (D x L) | 2.4 x 2.17" / 61.5 x 55 mm | | Weight | 8.7 oz / 246 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.4 x 4.1 x 4.1" |
