User Manual for Mitra Corp. 3D Mic Pro Click to enlarge the picture
Contents of the user manual for the Mitra Corp. 3D Mic Pro
- Product category: Stereo & Specialty Microphones Mitra Corp.
- Brand: Mitra Corp.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mitra Corp. Stereo & Specialty Microphones
 |
User manual for the Mitra Corp. 3D Mic Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mitra Corp. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mitra Corp. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mitra Corp. product will considerably shorten its lifespan!
|
Product description Mitra 3D Mic Pro: A Simple, Clean-Sounding Stereo Microphone Read More - Product Demo 1
- Product Demo 2
- Product Demo 3

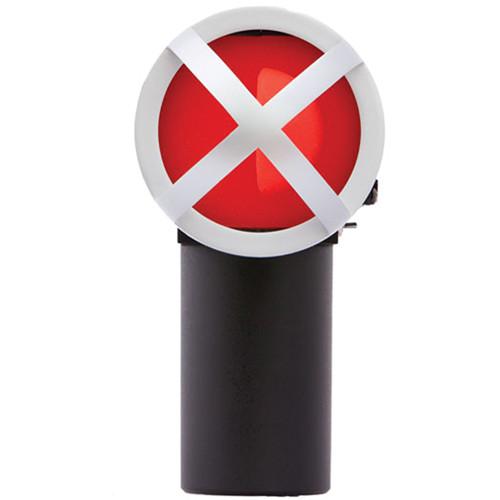

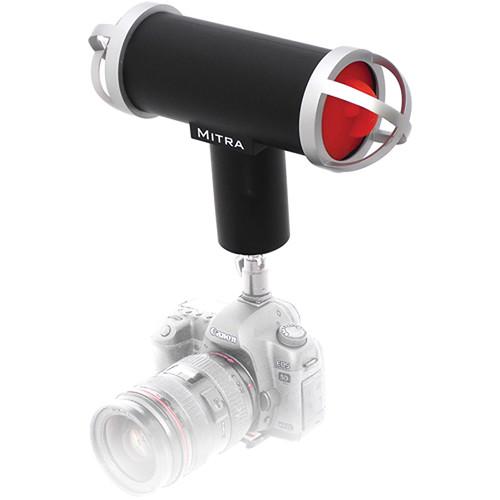

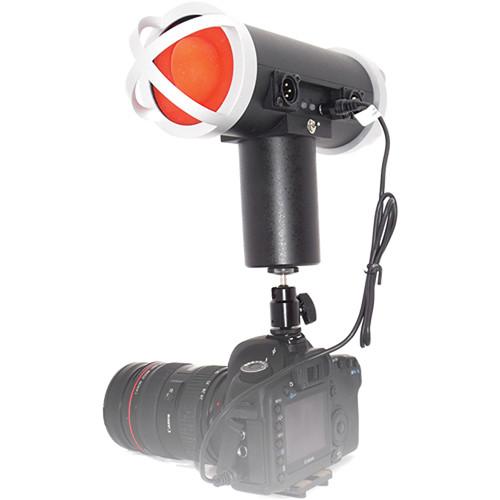

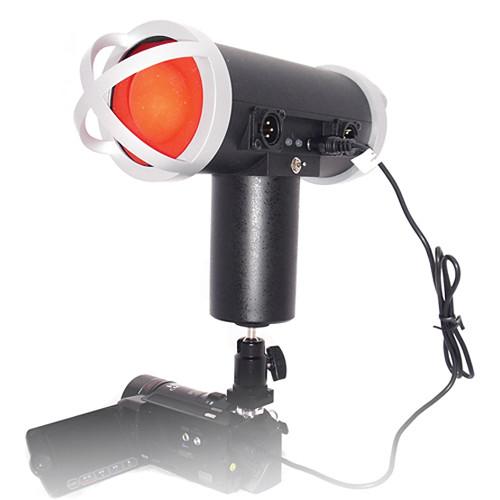

The Mitra 3D Mic Pro places an affordable, immersive audio capturing microphone in the hands of sound designers, videographers and just about anyone with a portable video camera or portable audio recording device. The 3D Mic Pro delivers stunningly realistic, human-ear immersive audio without any external processing. The microphone's output connections easily connect to the inputs of portable recorders, portable video cameras, DSLR cameras and more.The base of the microphone features Mitra's SHEM signal processing system, which mimics the perception of human hearing and encodes the signal. The bottom of the base features a 1/4-20 tripod base, which allows for tripod mounting and adapter accessories such as shoe adapters and shockmounts (optional). The 3D Mic Pro operates on a pair of 9V batteries and level indicators display remaining battery life. The Mitra 3D Pro is more than ideal for audio-for-video applications, field audio capturing, sound design, audio for gaming and much more. - Professional quality Japanese microphone capsule

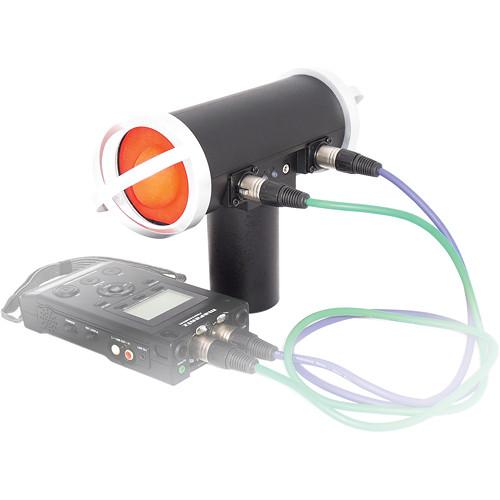

- 2 gold plated XLR outputs

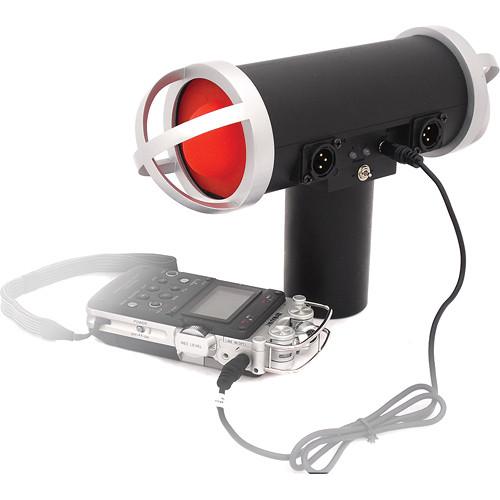

- 1 microphone level phono output
- Powered by two 9V batteries
- Long battery life of 12 hours

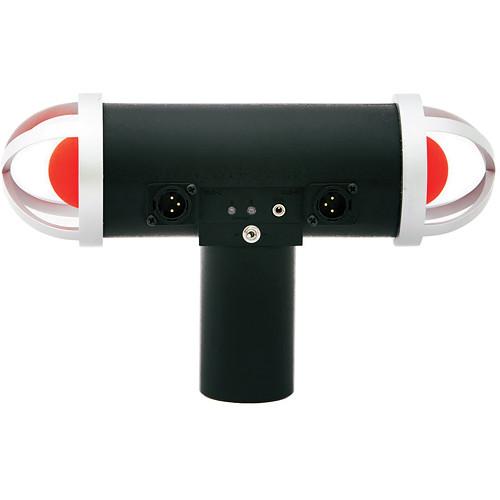

- Dual battery level indicators
UPC: 853340003008 In the Box Mitra Corp. 3D Mic Pro Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mitra Corp. 3D Mic Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMitra Corp. ARM3DMPV3 Specs | Transducer | Back plate Pre-polarized condenser capsule | | Polar Pattern | Very similar to human ear | | Output | Pressure transducer with patent pending SHEM | | Frequency Response | 20Hz to 20kHz | | Sensitivity | -35 dB (0db = 1V/pa) | | Signal-to-Noise Ratio | > 62 dB | | Impedance | 50 ohms balanced, < 200 ohms unbalanced | | Signal Output | Phono line out max. signal voltage: < 200 ohm | | Output Power | Cable drive capability: 487' (150m) | | Power Supply | 2x 9V PP3 ba | | Connector | XLR-3M.
Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase | | Mount | Tripod hole: 1/4" 20 pitch | | Dimensions (HxWxL) | 7.5 x 12 x 7.8" (190 x 305 x 198mm)
Grip Diameter: 2.36" (60mm) | | Weight | 1 lb, 6 oz (625g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 13.7 x 10.4 x 4.3" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
