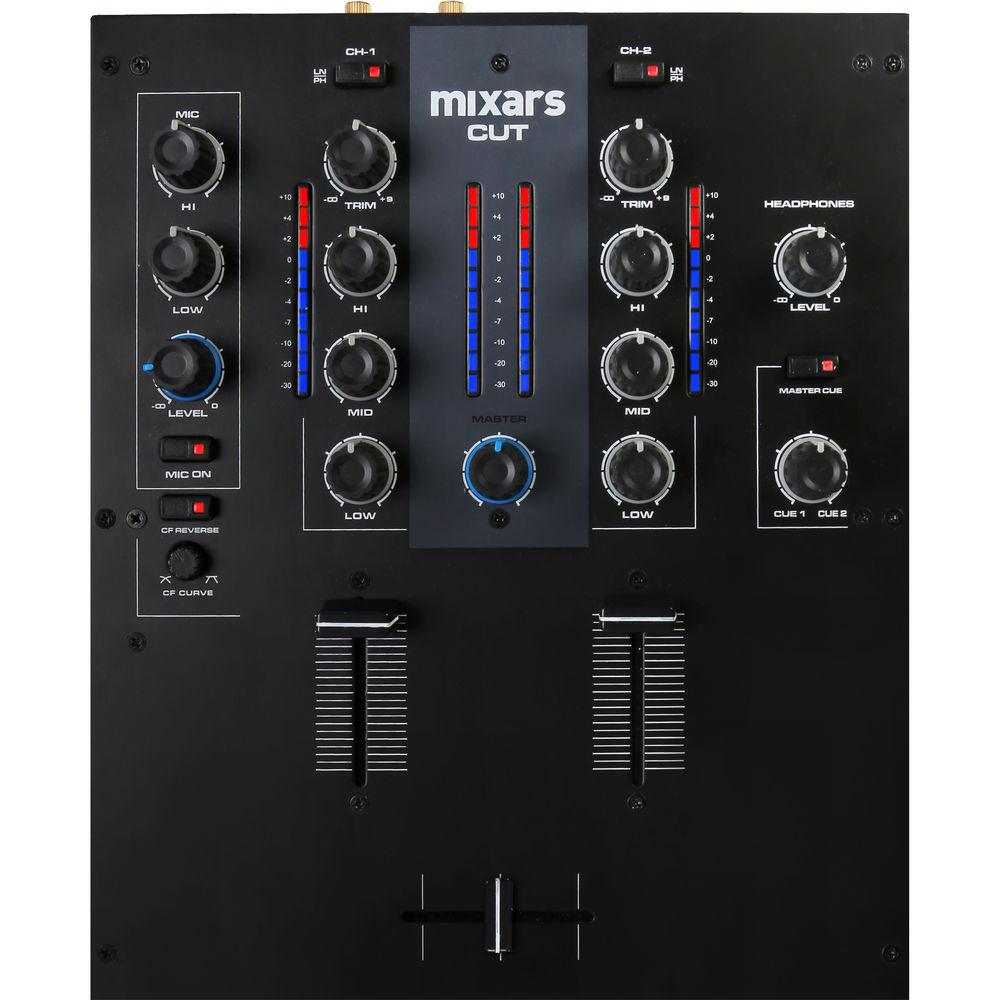

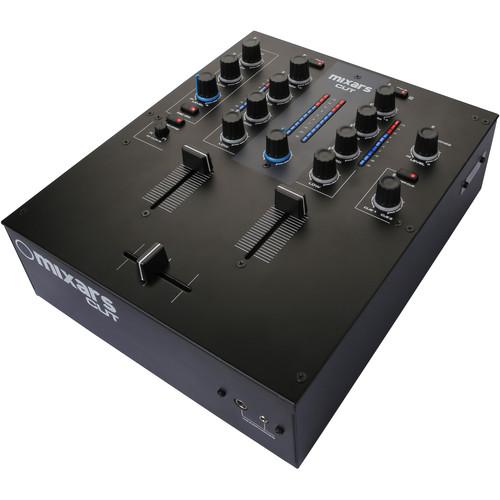

Product description Designed for turntablists and scratch DJs, the CUT MKII from Mixars is a solid, 2-channel battle-style mixer with a built-in Galileo crossfader. Each channel offers switchable Phono/Line inputs with dedicated trim, 3-band EQ, and volume faders. The microphone input offers gain control and a 2-band EQ, while the integrated Galileo crossfader provides an adjustable crossfader curve and a reverse switch. The Mixars CUT MKII also features master cue, record output, 1/4" and 1/8" headphone outputs. -
- Exclusive Mixars Galileo crossfader with razor sharp cut
- Adjustable crossfader curve and reverse switch
- Balanced XLR master outputs
- Master cue
- Record Output
- 1/4" & 1/8" headphones output
- Combo XLR-1/4" mic input with EQ
- Solid metal case
In the Box Mixars CUT MKII - 2-Channel Scratch Mixer with Galileo Crossfader Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mixars CUT MKII - 2-Channel Scratch Mixer with Galileo Crossfader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

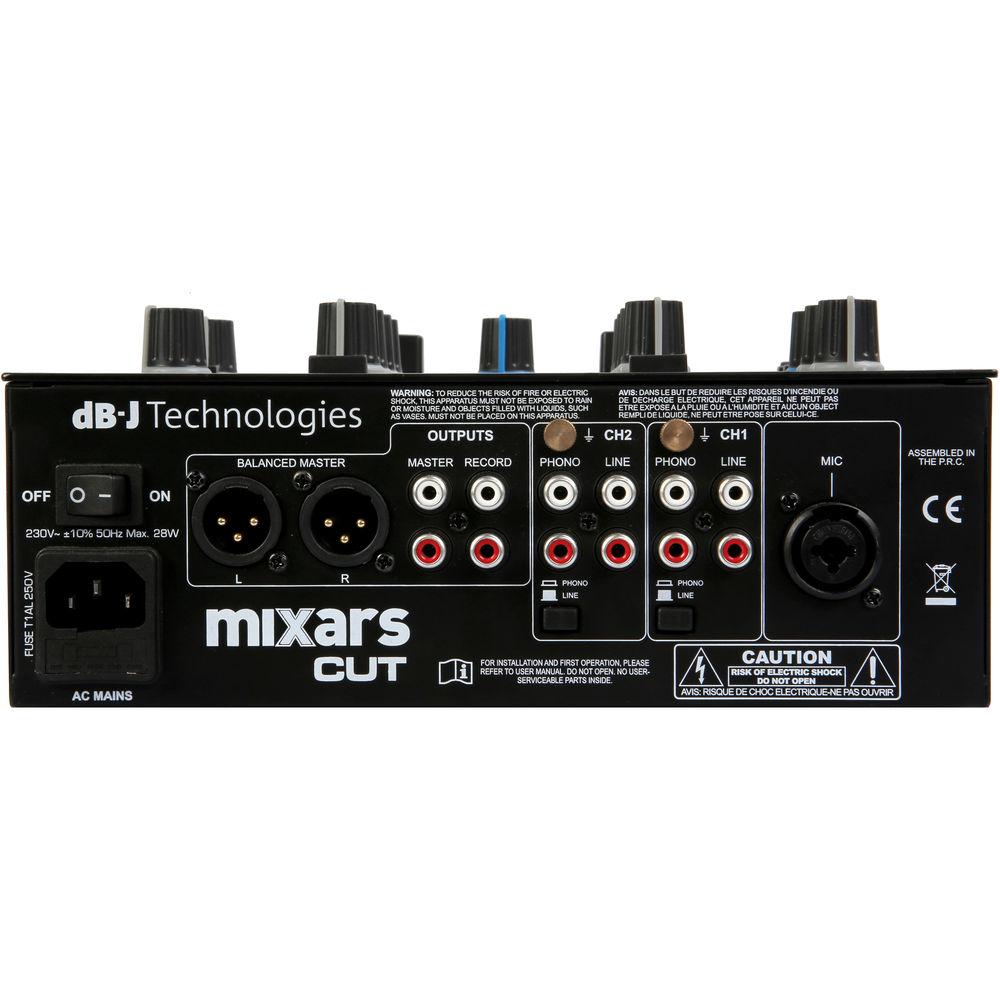

Technical parametersMixars Cut MKII Specs | Audio Inputs | Mic (XLR-1/4" / 6.3 mm, Electronically Balanced)
Maximum Input Level: -28 dBu
Input Impedance: 35 kOhms
Phono (RCA)
Maximum Input Level: -28 dBu (Channel input Gain at 0 dB)
Input Impedance: 31 kOhms
Line (RCA)
Maximum Input Level: +12 dBu (Channel Input Gain at 0 dB)
Input Impedance: 3.6 kOhms | | Audio Outputs | Master (XLR, balanced)
Maximum Output Level: +18 dBu
Output Impedance: 470 Ohms
MASTER (RCA unbalanced)
Maximum Output Level: +18 dBu
Output Impedance: 550 Ohms
RECORD (RCA)
Maximum Output Level: 0 dBu
Output Impedance: 2.2 kOhms
Phones Out
Maximum: 180 mW @ 75 Ohms / 1% THD | | EQ Section | Stereo Low: +12/-29 dB @ 50 Hz
Stereo Mid: +12/-24 dB @ 1.3 kHz
Stereo High: +10/-12 dB @ 10 kHz
Mic Low: +12/-12 dB @ 60 Hz
Mic High: +12/-12 dB @ 12 kHz | | System Specifications | Frequency Response
Mic: 20 Hz to 22 kHz ±3 dB
Phono (Ref. 1 kHz 0 dB, RIAA Standard): +17 dB ±3 dB @ 50 Hz; -13.7 dB ±3 dB @ 10 kHz
Line: 20 Hz to 22 kHz ±3 dB
Signal-to-Noise Ratio
Mic: > 77 dB
Phono: > 55 dB
Line: > 77 dB
Distortion (THD): < 0.1% (Line – OUT A)
Crosstalk: < -65 dB / 1 kHz (Line) | | Power Supply | Mains Voltage/Fuse: 110 to 120 VAC, 50/60 Hz / 20 mm glass fuse 250 V/500 mA slow
Power Consumption: Maximum 18 W
Mains Connector: Standard IEC receptacle | | Dimensions (H x W x D) | 4.3 x 9.4 x 11.4" / 110.0 x 240.0 x 290.0 mm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 16.5 x 12.9 x 6.1" |
