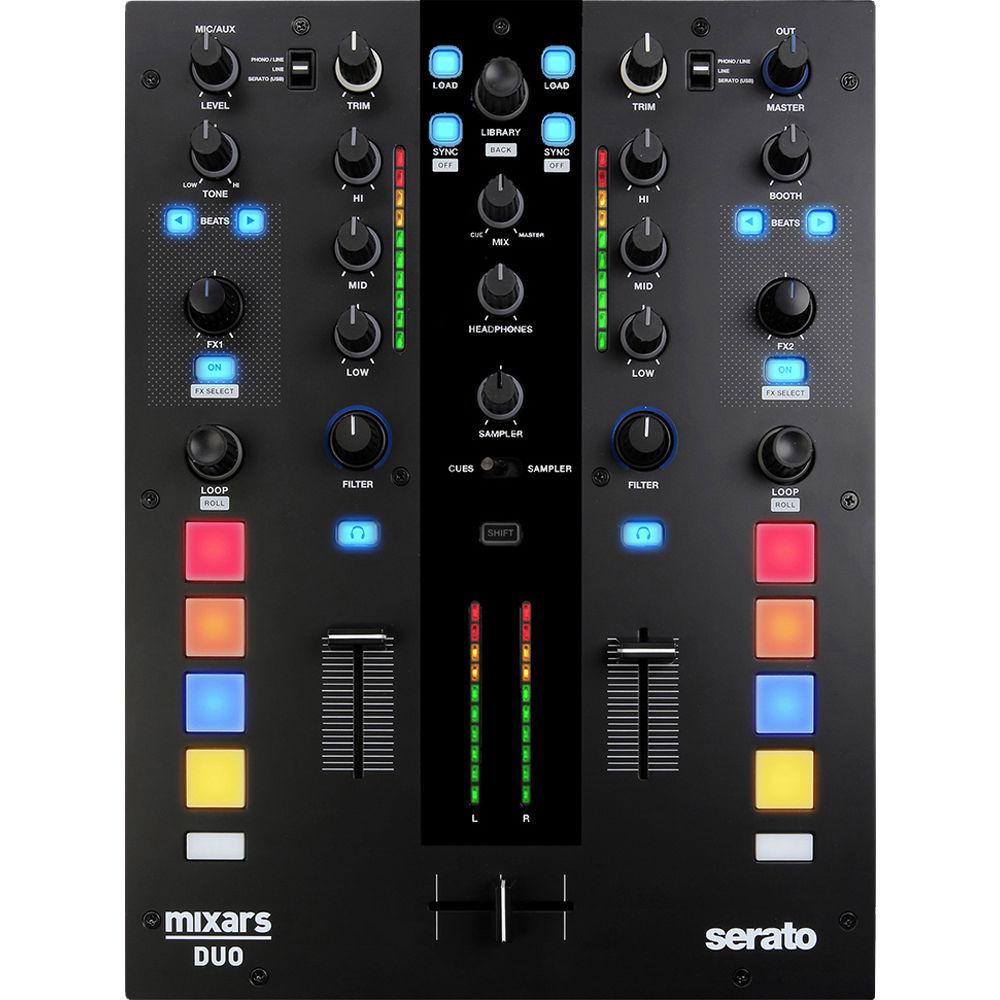

Product description The DUO from Mixars is a plug-and-play 2-channel battle-style mixer with Serato DJ integration. The mixer features 8 RGB backlit pads for triggering eight cue points per deck or the SP-6 sampler, while the dedicated library section allows you to search and load tracks without touching your computer. Additionally, there are dedicated knobs for controlling Serato DJ's FX on each channel.

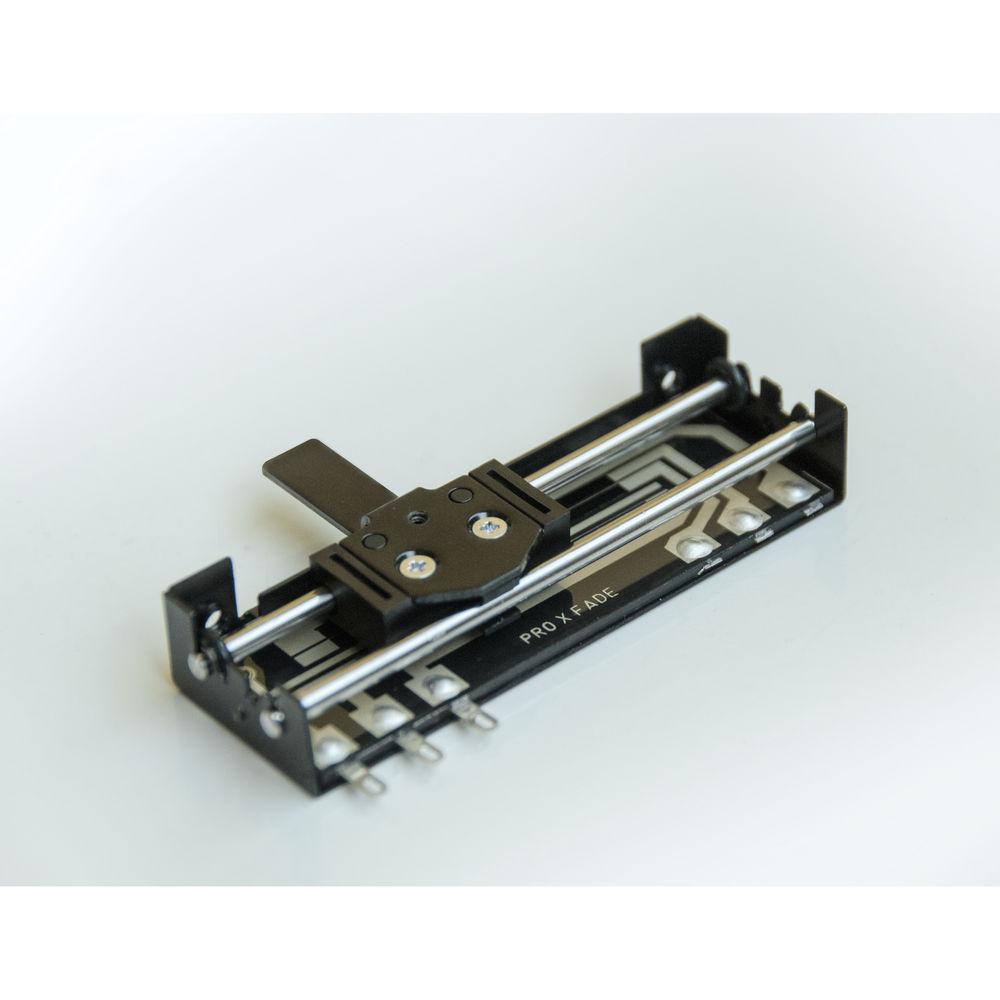

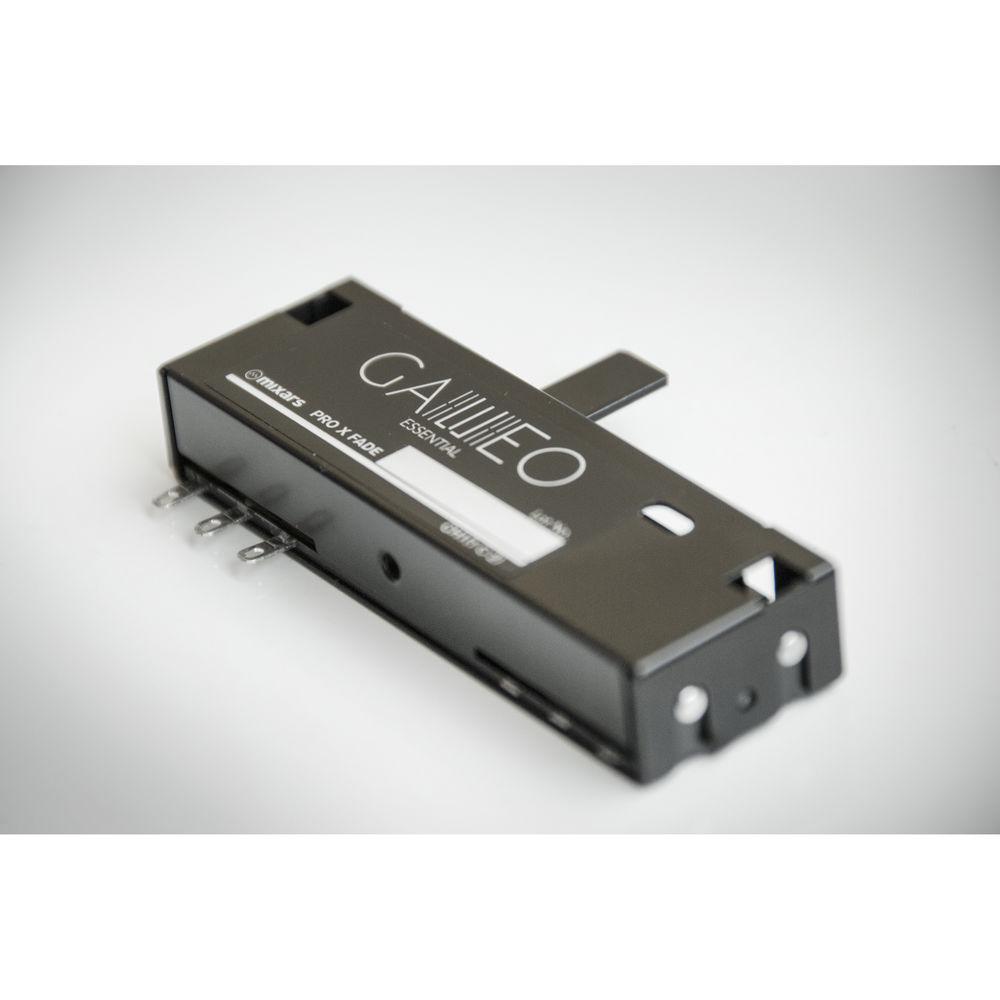

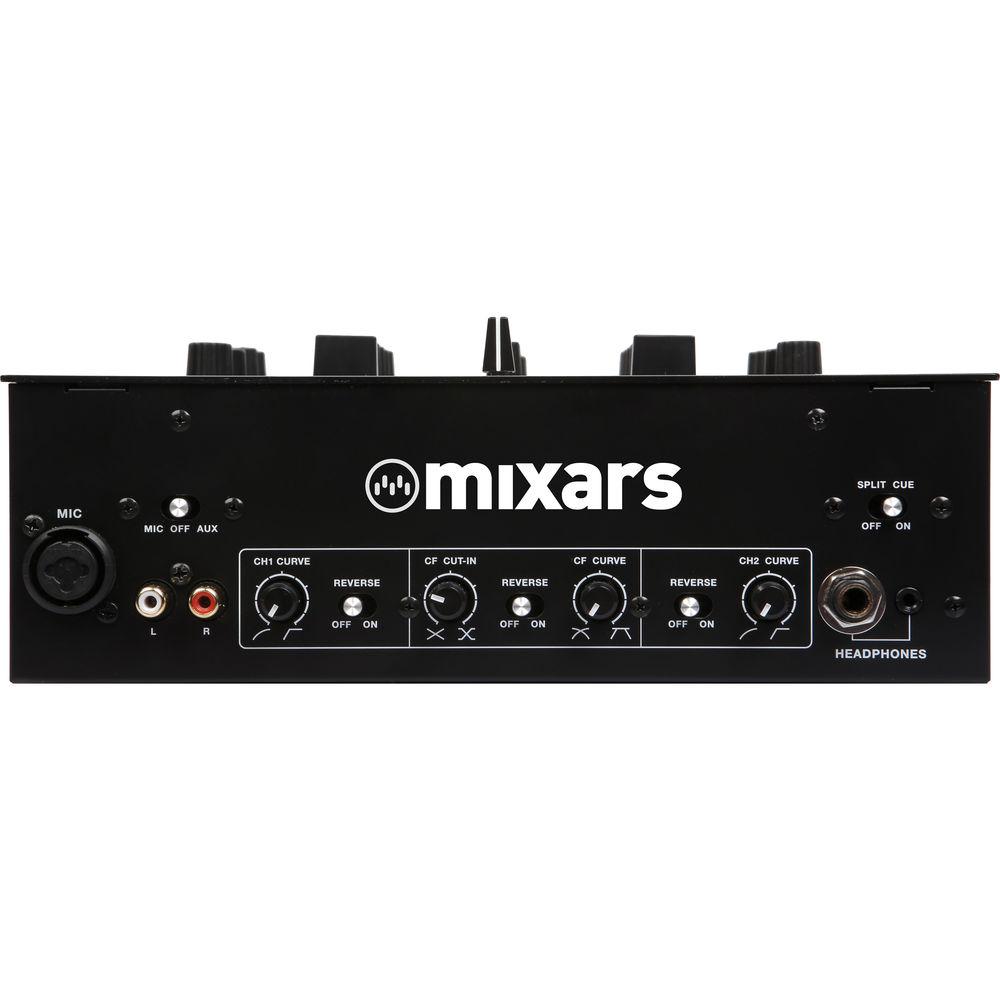

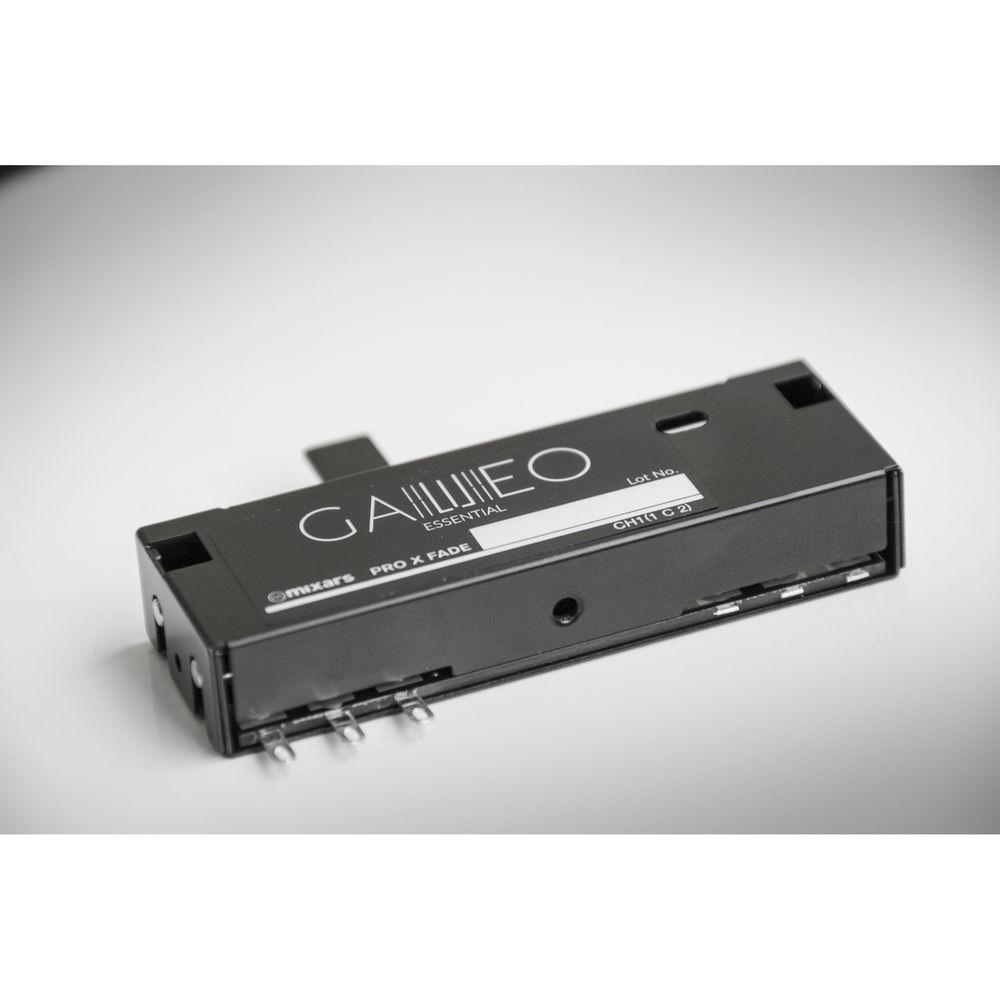

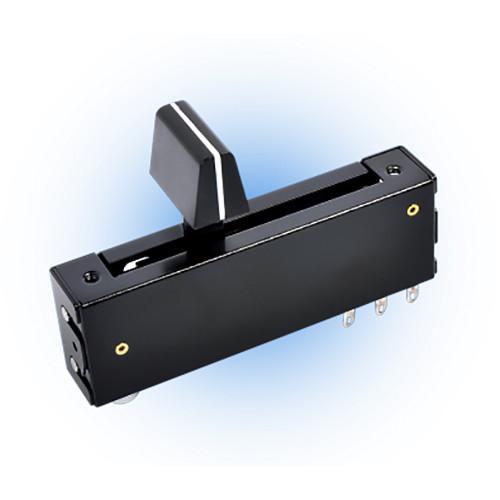

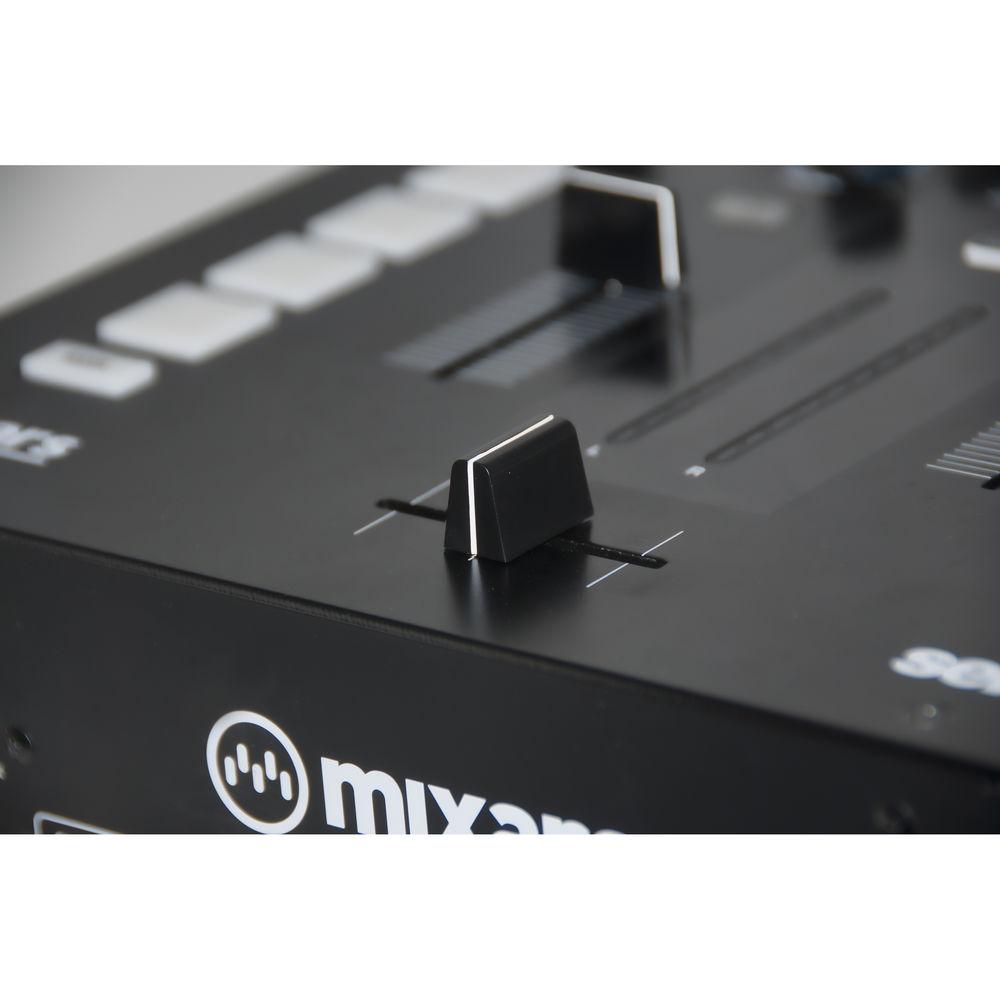

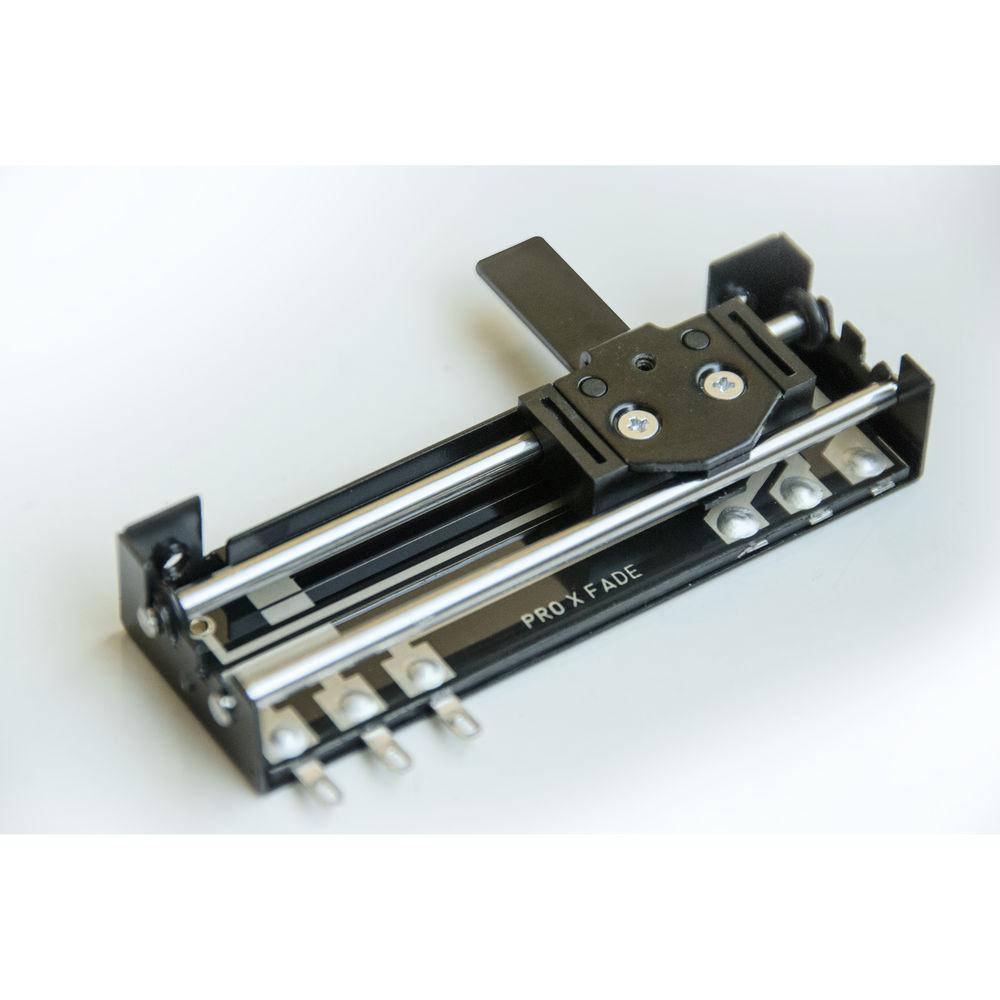

The integrated Galileo Essential crossfader was designed in collaboration with Pro X Fade and features the latest in conductive plastic technology with razor-sharp cuts for precise scratching. The Galileo offers reverse, curve adjustment, and cut-in adjustment on the front panel. The 8mm fader stem is designed for extensive scratching without breakage and includes a sloped fader cap for better grip.

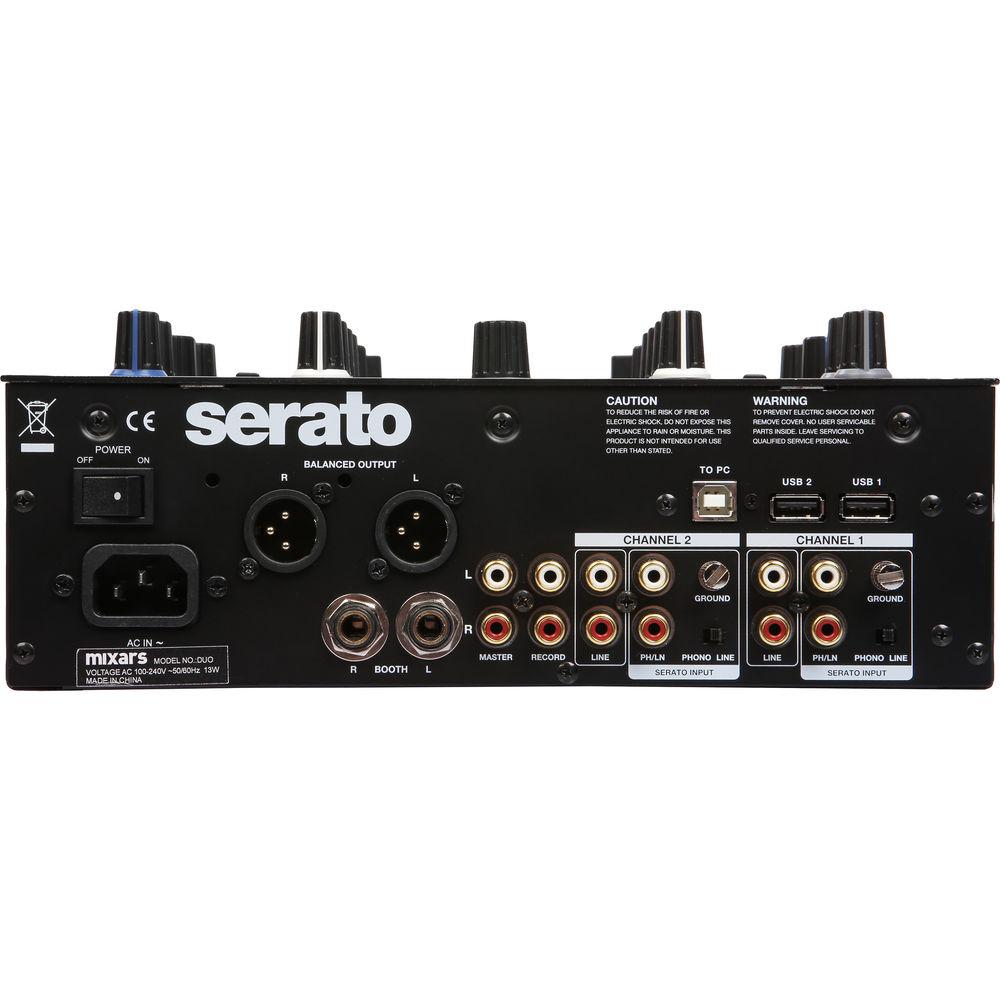

The built-in USB hub provides two additional USB 2.0 ports for MIDI controllers and jump drives. The Mixars Duo MKII offers switchable phono/line inputs, mic/aux inputs, XLR and RCA master outputs, 1/4" booth outputs, a 24-bit/96 kHz audio soundcard, and an analog low-/high-pass filter on each channel. -
- Official Serato mixer
- Includes Serato DJ + DVS enabled
- Integrated 24-bit / 96 kHz high quality audio interface
- All controls send MIDI for mapping in any MIDI software
- Mixars Galileo crossfader for precise cuts
- Crossfader reverse, curve, and cut-in adjustments
- Channel fader reverse and curve adjustment
- Eight RGB rubber performance pads for control of cues and samples
- Dedicated Sampler volume control
- Looping control
- Control for Serato DJ FX
- Built in 2-port USB HUB
- Analog hi/low filter on each channel
- Balanced XLR master output
- Balanced TRS booth output
- Combo Mic and Aux inputs on front panel
In the Box Mixars DUO MKII - Professional 2-Channel Battle Mixer for Serato DJ Power Cord USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mixars DUO MKII - Professional 2-Channel Battle Mixer for Serato DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMixars Duo MKII Specs | Input Level and Impedance | 1 kHz Input; Mic/Aux, Trim, Master at maximum
Line: 10 kOhms / -14 dBV (200 mV)
Phono: 47 kOhms / -50 dBV (3.16 mV)
Aux: 10 kOhms / -14 dBV (200 mV)
Mic: 5 kOhms / -54 dBV (1.99 mV) (Unbalanced)
USB: (N/A) / -3.4 dBV (96 K-782 TK. 16/1 kHz -20 dB) | | Output Level and Impedance | 1 kHz Input; Mic/Aux, Trim, Master at maximum
All: Nominal: ±1 dB; Limited: ±2 dB
Master: 1 kOhm / 0 dBV (1 V)
Balanced: 600 Ohms / 0 dBV (1 V)
Booth: 600 Ohms / 0 dBV (1 V)
Phones: 33 Ohms / -3 dBV (708 mV)
Record: 1 kOhm / -9 dBV (400 mV) | | Frequency Response | Reference Input Level, Mic/Aux, Trim, Master at maximum
Line: 20 Hz to 20 kHz (Nominal: +1/-1.5 dB, Limited: +2/-3 dB)
Aux: 20 Hz to 20 kHz (Nominal: +1/-1.5 dB, Limited: +2/-3 dB)
Phono: 20 Hz to 20 kHz (Nominal: +1/-2 dB, Limited: +2/-3 dB RIAA)
Mic: 20 Hz to 20 kHz (Nominal: +1/-2 dB, Limited: +2/-3 dB) | | Maximum Input | Mic/Aux, Trim, Master at 9 o'clock. 1 kHz input level adjusted to output level <1% T.H.D with an A-weighted 20 kHz LPF
Line: Nominal: +15 dBV, Limited: +14 dBV
Aux: Nominal: +15 dBV, Limited: +14 dBV
Phono: Nominal: -21 dBV, Limited: -22 dBV
Mic: Nominal: -25 dBV, Limited: -26 dBV | | Maximum Output | Mic/Aux, Trim, Master at Maximum. 1 kHz input level adjusted to output level <1% T.H.D with an A-weighted 20 kHz LPF
Master Unbalanced: Nominal: +17 dBV, Limited: +16 dBV
Master Balanced: Nominal: +17 dBV, Limited: +16 dBV
Booth Output: Nominal: +17 dBV, Limited: +16 dBV
Phones: Nominal: +5 dBV, Limited: +4 dBV | | S/N Ratio | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal)
Line (0 dB Input): Nominal: 86 dB, Limited: 83 dB
Phono (-36 dB Input): Nominal: 86 dB, Limited: 83 dB
Aux (0 dB Input): Nominal: 86 dB, Limited: 83 dB
Mic (-40 dB Input): Nominal: 79 dB, Limited: 75 dB | | THD + N | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF
Line (0 dB Input): Nominal: 0.01%, Limited: 0.02%
Aux (0 dB Input): Nominal: 0.01%, Limited: 0.02%
Phono (-36 dB Input): Nominal: 0.02%, Limited: 0.05%
Mic (-40 dB Input): Nominal: 0.03%, Limited: 0.06% | | Crosstalk | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal)
Line (Each Channel Input at 0 dB): Nominal: 85 dB, Limited: 82 dB
Phono (Each Channel Input at -36 dB): Nominal: 85 dB, Limited: 82 dB | | Channel Separation (R/L) | 1 kHz Input; Mic/Aux, Trim, Master at 12 o'clock with an A-weighted 20 kHz LPF (input shorted when no signal)
Line (Between L and R Channels at 0 dB Input): Nominal: 85 dB, Limited: 82 dB
Phono (Between L and R Channels at -36 dB Input): Nominal: 85 dB, Limited: 82 dB | | EQ Section | Reference Input Level, Mic/Aux, Trim Master at maximum with a 20 kHz LPF
Low Band Reference Frequency: 70 Hz
Middle Band Reference Frequency: 1 kHz
High Band Reference Frequency: 13 kHz
Maximum Level: +12 dB; Nominal: ±1 dB, Limited: ±1.5 dB (applies to all bands)
Minimum Level: -25 dB; Nominal: ±1 dB, Limited: ±1.5 dB (applies to all bands) | | Audio Card Support | USB 2.0
24-bit / 96 kHz | | Power | Power Source: 100-240 VAC, 50/60 Hz
Power Consumption: 13 W | | Dimensions (W x D x H) | 10.4 x 14.5 x 4.1" / 265.0 x 369.0 x 104.1 mm | | Weight | 9.1 lb / 4.2 kg | | | | Package Weight | 11.65 lb | | Box Dimensions (LxWxH) | 16.2 x 15.0 x 6.3" |
