Mixars LTA - Straight-Arm High-Torque Turntable

Search your instruction manual in PDF to download

User Manual for Mixars LTA - Straight-Arm High-Torque Turntable

Click to enlarge the picture
Mixars LTA - Straight-Arm High-Torque Turntable Contents of the user manual for the Mixars LTA - Straight-Arm High-Torque Turntable
  • Product category: Turntables Mixars
  • Brand: Mixars
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Mixars Turntables

Mixars LTA - Straight-Arm High-Torque Turntable Mixars LTA - Straight-Arm High-Torque Turntable
User manual for the Mixars LTA - Straight-Arm High-Torque Turntable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Mixars product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Mixars user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Mixars product will considerably shorten its lifespan!



Product description

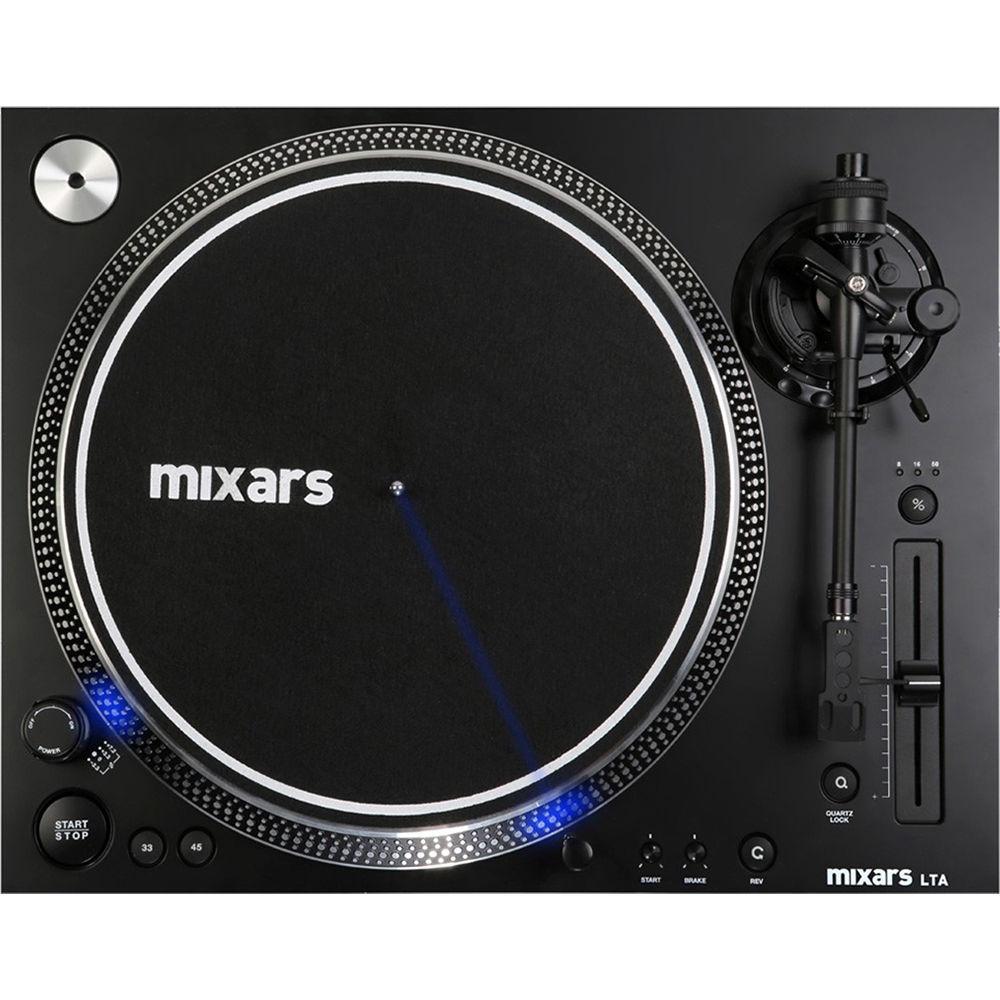

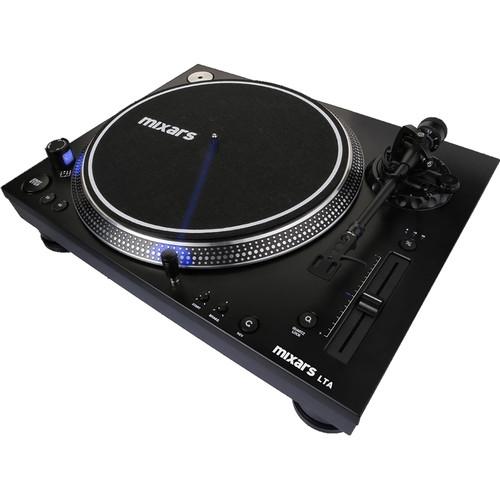

The LTA from Mixars is a straight-arm, high-torque turntable well suited for turntablists and music lovers. The quartz-controlled direct-drive motor ensures speed accuracy when playing back records and its 4.5 kg motor provides the ideal feel for scratching. The high-resolution pitch (±8%, ±16%, and ±50%) provides precision mixing and beat-matching. The inclusion of two sets of RCA outputs allow for the turntable to be connected to two mixers for the ultimate in flexibility for performance or listening. The LTA ships with a headshell, AC cord, counter weight, target light, platter, RCA cord, 45 RPM adapter, and slipmat.
    • Direct drive turntable
    • Straight-Arm for skip-less performance
    • Motor: 16-pole, 3-phase, brushless
    • DC Motor: Direct drive
    • Speeds: 33-1/3 and 45 RPM, 332 mm diameter
    • Die-cast aluminum Platter
    • Starting Torque: > 4.5 kgf.cm

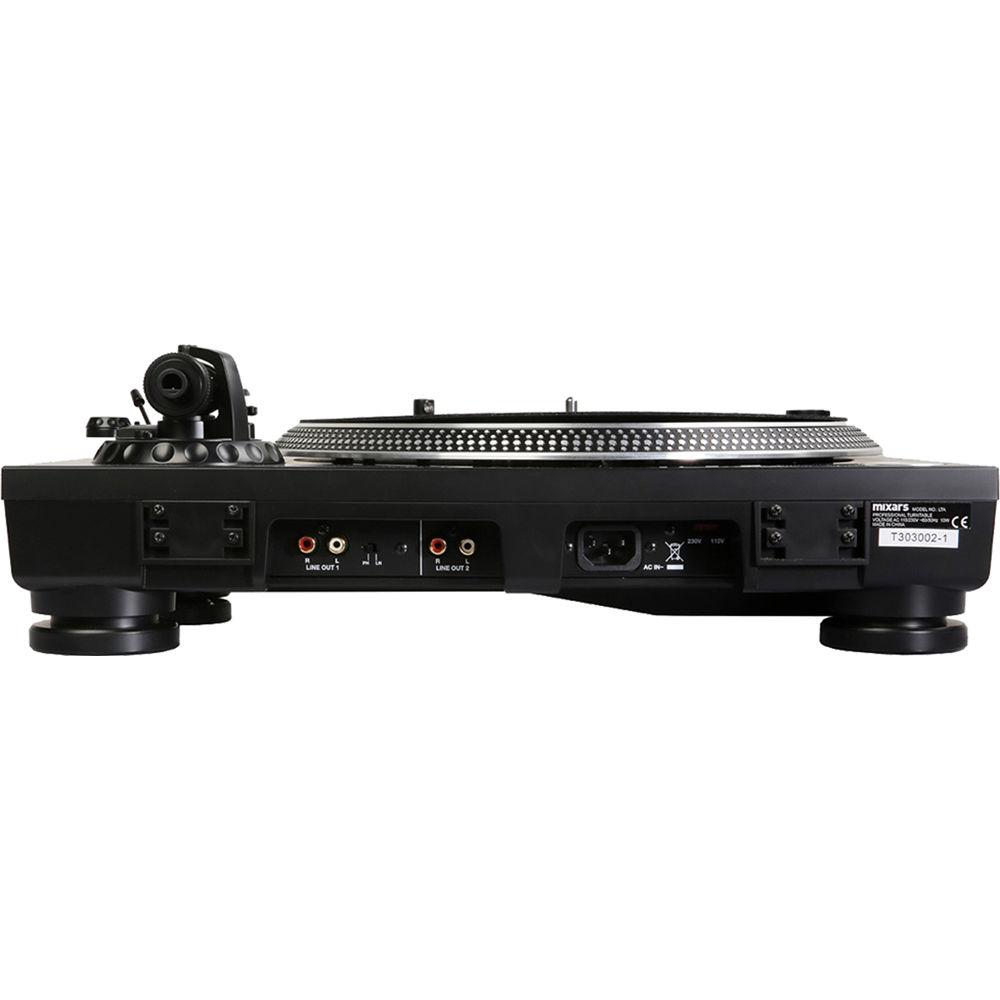

    • Phono and Line Output: 2x Stereo RCA
    • Start and stop adjustable
    • Pitch variation adjustable
In the Box Mixars LTA - Straight-Arm High-Torque Turntable
  • Headshell
  • AC Cord
  • Counter Weight
  • Target Light
  • Platter
  • RCA Cord
  • 45 RPM Adapter
  • Slipmat
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Mixars LTA - Straight-Arm High-Torque Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Mixars LTA Specs

    Type 3-speed full manual
    Motor 16-pole, 3-phase, brushless DC motor
    Driving Method Direct drive
    Turntable Platter Aluminum Die-Cast: 13.1" / 332.0 mm diameter
    Speeds 33-1/3 and 45 RPM
    Wow and Flutter Less than 0.1% WRMS (JIS WTD) with 33-1/3 RPM
    Signal-to-Noise Ratio (SNR) More than 55 dB (DIN-B)
    Pitch Control ±8%, ±16%, ±50%
    Torque Starting Torque: > 4.5 kgf.cm
    Starting Time Minimum: 6 seconds (adjustable)
    Braking Time Minimum: 6 seconds (adjustable)
    Time for Speed Change < 0.2 seconds from 33-1/3 to 45 RPM
    < 0.2 seconds from 45 to 33-1/3 RPM
    Channel Separation > 15 dB
    Channel Balance Within 2.5 dB at 1 kHz
    Type Static balanced straight-shaped tonearm
    Effective Arm Length 7.6" / 194.0 mm
    Overhang N/A
    Tracking Error Angle < 3°
    Cartridge Weight Applicable Cartridge Weight: 0.5 to 0.6 oz / 13.0 to 18.0 g (including headshell)
    High of Cue First Track: 0.3 x 0.4" / 7.5 x 10.0 mm
    Descend of Cue 1 to 3 seconds
    EQ RIAA Characteristic 20 Hz to 20 kHz (+1/-3 dB)
    Phono Output Level 1.5 to 3.6 mV at 1 kHz, 5 cm/sec
    Line Output Level Line1 Output Level: 90 to 216 mV at 1kHz, 5 cm/sec
    Line2 Output Level: 90 to 216 mV at 1kHz, 5 cm/sec
    Signal-to-Noise Ratio (SNR) 55 dB ≧ (1 kHz, 4mV input)
    Power Power Supply: 115/230 VAC, 60/50 Hz (switchable)
    Power Consumption: 10 W
    Dimensions (W x D x H) 17.7 x 13.9 x 5.7" / 450.0 x 353.0 x 144.6 mm
    Weight 22.0 lb / 10.0 kg
    Package Weight 25.0 lb
    Box Dimensions (LxWxH) 20.5 x 17.0 x 7.9"
