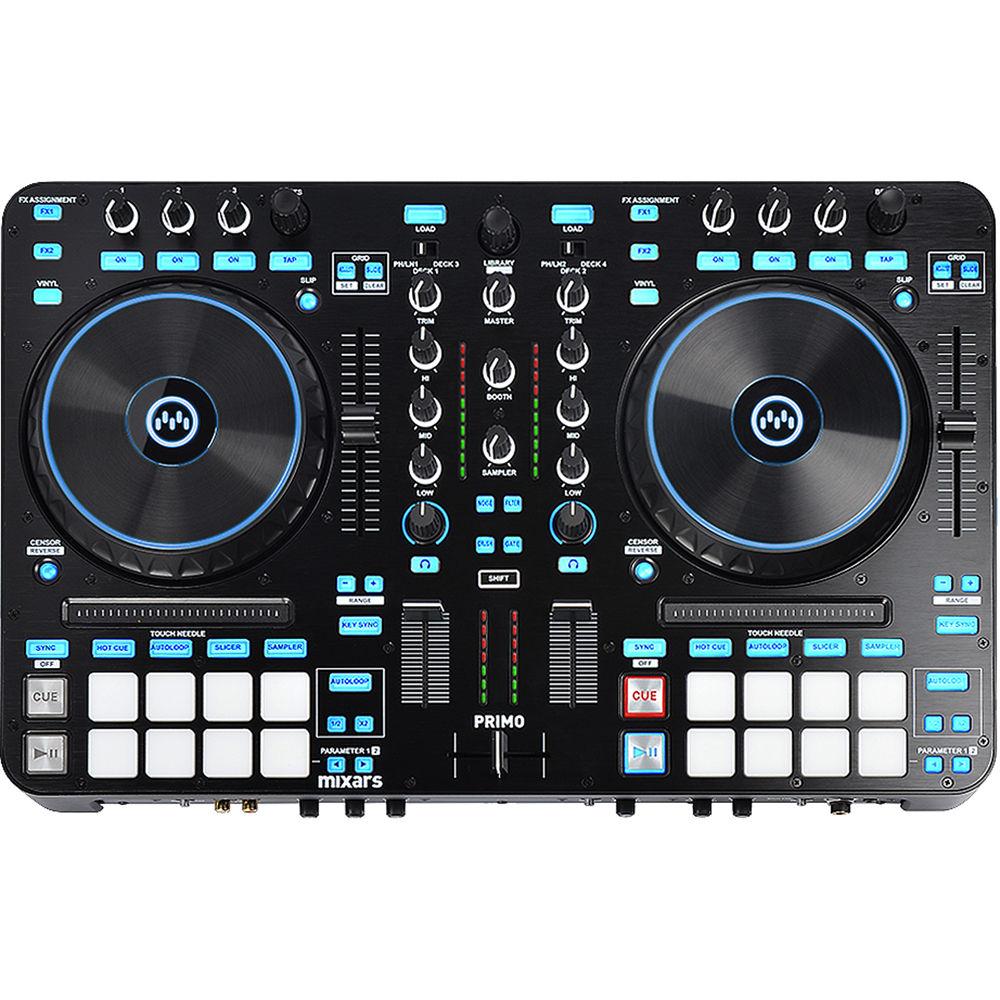

Product description The Mixars PRIMO Controller and Mixer is a plug-and-play 2-channel controller and mixer for the included Serato DJ Pro software. Each deck includes eight RGB backlit performance pads to triggering cue points, rolls, slices, and the Serato sampler. What's more, the PRIMO has a KeySync button to instantly match musical keys of tracks.

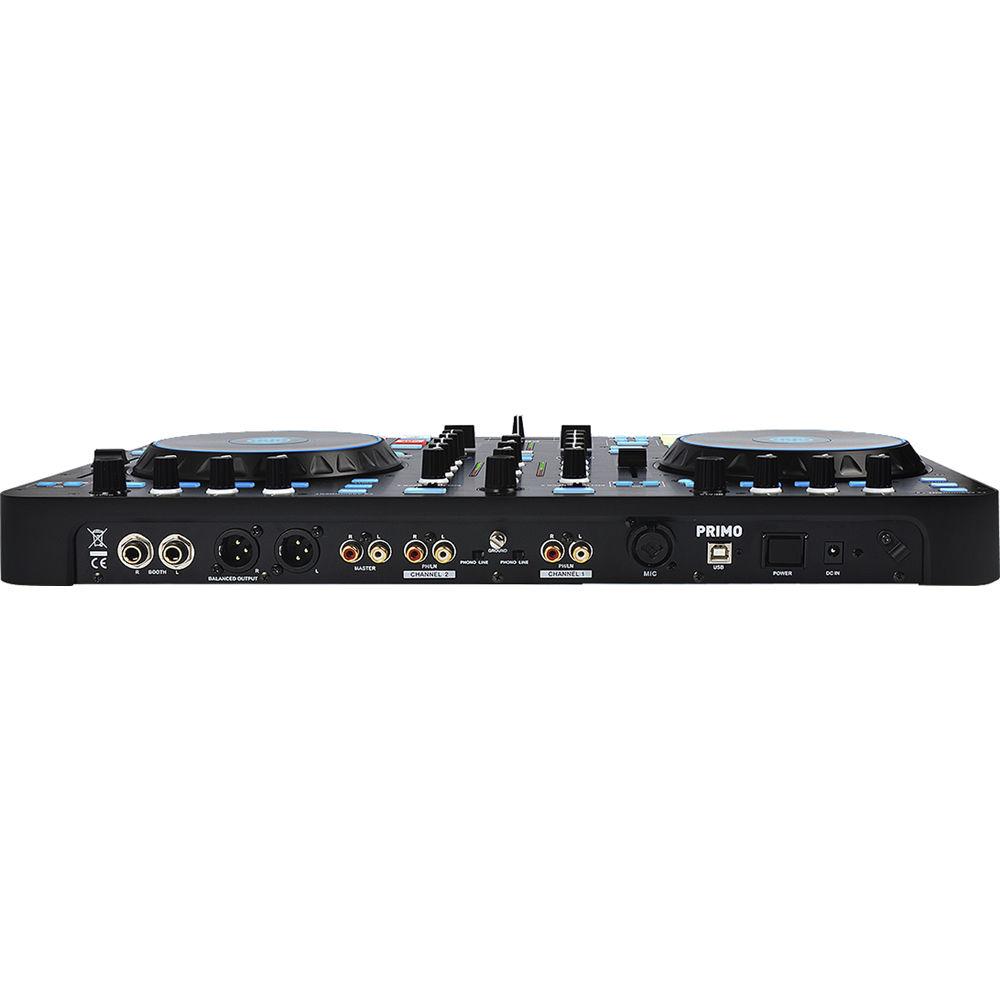

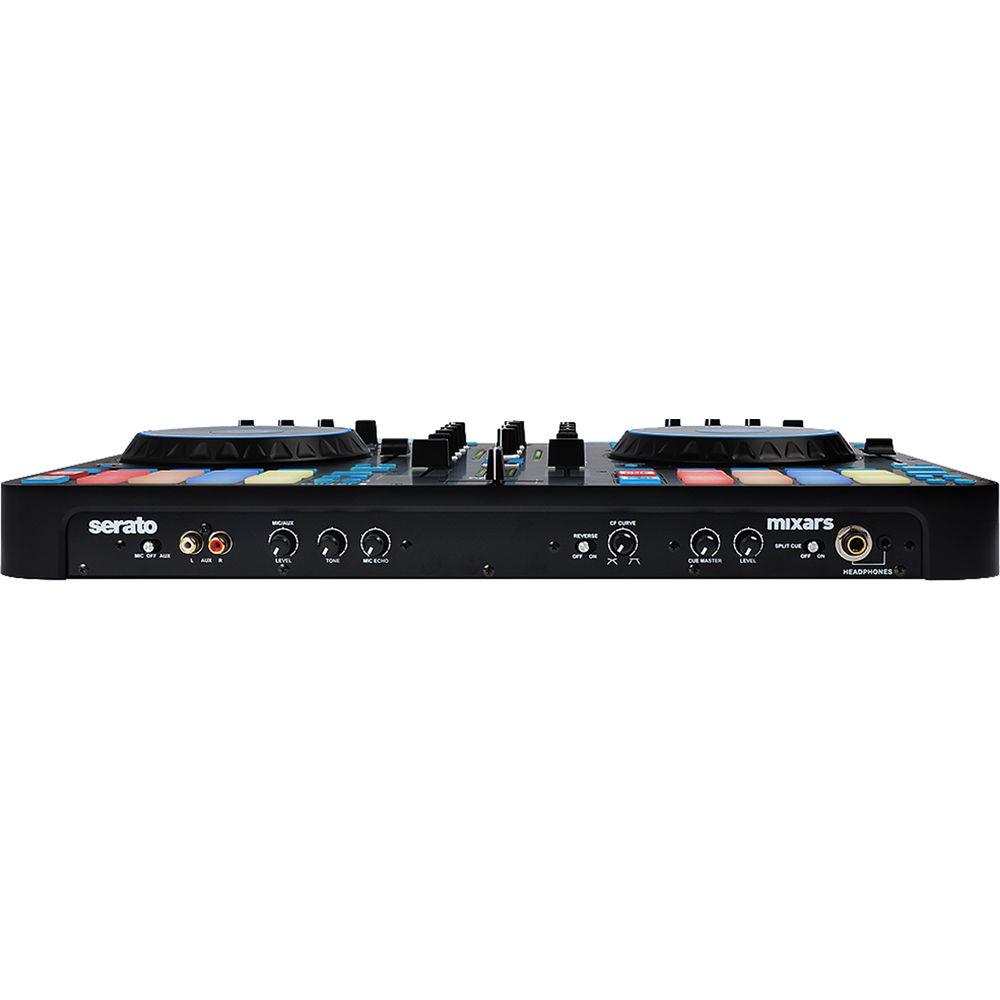

The PRIMO features dedicated effects on each channel including Filter, Noise, Crush, and Gate. With phono and line inputs available on every channel, the PRIMO allows DJs to incorporate other players such as media decks and turntables for a wide variety of performance options. Additionally, the Serato DJ Pro software is eligible for an upgrade to Serato DJ DVS, allowing turntable control over Serato DJ. Furthermore, the PRIMO includes an auxiliary input with a dedicated volume control, as well as a combo XLR-1/4" microphone input with independent tone controls and a dedicated microphone echo. The Mixars PRIMO can be UBS bus powered or powered by the included power adapter and ships with a USB cable. -
- Two-channel, four-deck controller for optional Serato DJ Pro
- Stand-alone mixer with filter effects
- Auxiliary RCA input with dedicated volume
- 6-Input / 12-Output integrated sound card for simple USB connectivity (24-bit / 48 kHz)
- 100mm pitch control
- Touch needle search
- Eight performance pads on each deck to control Hot Cues, Roll, Slicer, and Sampler
- Large aluminum jog wheels with LED Ring
- Full control and assignment of Serato FX
- Adjustable crossfader curve
- Mic with dedicated echo effect
- USB powered or DC power adapter (included)
- Eligible for optional upgrade to Serato DVS
In the Box Mixars PRIMO 2-Channel Controller and Mixer with Standalone Effects for Serato DJ USB Cable Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mixars PRIMO 2-Channel Controller and Mixer with Standalone Effects for Serato DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMixars MIX-PRIMO Specs | Jog Control | Large Aluminum Jog Wheels with On-Jog Display and LED Ring | | Pads | 16 RGB Pads | | Level Meters | 3 VU-level Meter | | Adjustments | Crossfader Curve Adjustment and Reverse | | Touchstrip | Touch Needle Search Strip | | Mic Input | Pro Combo Mic Input with Independent Volume, Tone Control, and Echo | | RCA | Auxiliary RCA Input with Dedicated Volume | | Headphone Out | 2 | | Plug & Play | Yes | | Audio Characteristics | Unbalanced Output Load: 100 kOhms
Balance Output Load: 600 Ohms
Phones: 33 Ohms
(EQ/Filter Flat, Mic Echo at Min, Fader at Maximum unless Otherwise Noted) | | Input Impedances | Input Impedance / Reference Input Level (1 kHz Input, Mic/Aux, Trim, Master at Max)
Line: 10 kOhms / -14 dBV (200 mV)
Phono: 47 kOhms / -50 dBV (3.16 mV)
Aux: 10 kOhms / -14 dBV (200 mV)
Mic: 5 kOhms / -54 dBV (1.99 mV) (Unbalance)
USB: 90 Ohms / -23.4 dBFS Non Serato Mode | | Output Impedances | Output Impedance / Reference Output Level (1 kHz Input, Mic/Aux, Trim, Master at Max)
Master: 1 kOhms / 0 dBV (1 V), ±1 dB (Nominal), ±2 dB (Limited)
Balanced: 600 Ohms / 0 dBV (1 V), ±1 dB (Nominal), ±2 dB (Limited)
Booth: 600 Ohms / 0 dBV (1 V), ±1 dB (Nominal), ±2 dB (Limited)
Phones: 33 Ohms / 0 dBV (1 V), ±1 dB (Nominal), ±2 dB (Limited) | | Frequency Response | (Reference Input Level, Mic/Aux, Trim at Maximum, Master at 12 O'Clock)
Line: 20 Hz to 20 kHz, +1/-1.5 dB (Nominal), +2/-3 dB (Limited)
Aux: 20 Hz to 20 kHz, +1/-1.5 dB (Nominal), +2/-3 dB (Limited)
Phono: 20 Hz to 20 kHz, +1/-2 dB (Nominal), +2/-3 dB (Limited, RIAA)
Mic: 20 Hz to 20 kHz, +1/-2 dB (Nominal), +2/-3 dB (Limited) | | Maximum Input | (Mic/Aux, Trim, Master at 9 O'Clock. Adjust Input 1 kHz to Output Level <1% T.H.D. with A-W/20 kHz LPF)
Nominal / Limited
Line: +10 dBV / +8 dBV
Phono: -25 dBV / -28 dBV
Mic: -20 dBV / -23 dBV | | Maximum Output | (Mic/Aux, Trim, Master at Max. Adjust Input 1 kHz to Output Level <1% T.H.D. with A-W/20 kHz LPF)
Nominal / Limited
Master Unbalanced: +11 dBV / +9 dBV
Master Balanced: +11 dBV / +9 dBV
Booth Balanced: +11 dBV / +9 dBV
Phones: +5 dBV / +4 dBV | | Signal-to-Noise Ratio (SNR) | (1 kHz Input, Mic/Aux, Trim, Master at 12 O'Clock, with A-Weight/20 kHz LPF, Input Short when No Signal)
Nominal / Limited
Line: 94 dB / 90 dB (at 0 dB Input)
Phono: 90 dB / 86 dB (at -36 dB Input)
Aux: 92 dB / 88 dB (at 0 dB Input)
Mic (at -40 dB Input): 80 dB (Nominal), 76 dB (Limited) | | THD+N | (1 kHz Input, Mic/Aux, Trim, Master at 12 O'Clock, with A-Weight/20 kHz LPF)
Nominal / Limited
Line: 0.005% / 0.01% (0 dB Input)
Aux: 0.005% / 0.01% (0 dB Input)
Phono: 0.02% / 0.05% (-36 dB Input)
Mic: 0.02% / 0.05% (-40 dB Input) | | Crosstalk | (1 kHz Input, Mic/Aux, Trim, Master at 12 O'Clock with A-w / 20 kHz LPF, Input Short when No Signal)
Nominal / Limited
Line: 94 dB / 90 dB (Each Channel Input at 0 dB Input)
Phono: 88 dB / 84 dB (Each Channel Input at -36 dB Input)
Aux: 88 dB / 84 dB (Each Channel Input at 0 dB Input) | | Channel Separation | (1 kHz Input, Mic/Aux, Trim, Master at 12 O'Clock with A-w / 20 kHz LPF, Input Short when No Signal)
Nominal / Limited
Line: 93 dB / 89 dB (Between L and R Channel at 0 dB Input)
Phono: 90 dB / 86 dB (Between L and R Channel at 0 dB Input)
Aux: 86 dB / 82 dB (Between L and R Channel at 0 dB Input) | | Equalizer | (Reference Input Level, Mic / Aux, Trim at Max Master at 12 O'Clock with 20 kHz LPF)
Nominal / Limited
Line:
Low Band: (Low-Band Reference Frequency is 70 Hz)
Maximum Level: +12 ±1 dB / ±1.5 dB
Minimum Level: -25 ±1 dB / ±1.5 dB
Middle Band: (Mid-Band Reference Frequency is 1 kHz)
Maximum Level: +12 ±1 dB / ±1.5 dB
Minimum Level: -25 ±1 dB / ±1.5 dB
High Band: (High-Band Reference Frequency is 13 kHz)
Maximum Level: +12 ±1 dB / ±1.5 dB
Minimum Level: -25 ±1 dB / ±1.5 dB
Mic Tone
Nominal / Limited
Max: -28 dB / -26 dB (at 100 Hz)
Min: -28 dB / -26 dB (at 10 kHz) | | Channel Fader Kill | (0 dB 1 kHz Input Level, Trim/Master at 12 O'Clock. Mic Switch Off with A-W / 20 kHz LPF)
Nominal / Limited
Channel Fader: -95 dB / -91 dB
Cross Fader: -95 dB / -91 dB | | Levels | Level Difference L&R: (1 kHz Reference Input Level, Trim, Master at Maximum with A-w / 20 kHz LPF)
Line: 0 dB ±0.5 dB / ±1 dB
Phono: 0 dB ±1 dB / ±1.5 dB
Aux: 0 dB ±0.5 dB / ±1 dB | | USB Interface | Channels: 6 In/ 12 Out
Sampling Rate: 48 kHz
Resolution: 24-Bit | | Environmental Conditions | Ambient Temperature: 73°F / 23°C (±2°C)
Relative Humidity: 65% ±5% | | Power | Power Source: DC Adapter 100 to 240 VAC 50/60 Hz, USB Powered
Power Supply: DC Adapter 5 VDC, 2 A
USB Power: USB Port with Current Supply >1 A | | Dimensions (W x D x H) | 20.0 x 13.0 x 2.6" / 508.4 x 330.7 x 65.6 mm | | Weight | 9.3 lb / 4.2 kg | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 25.0 x 16.0 x 4.5" |
