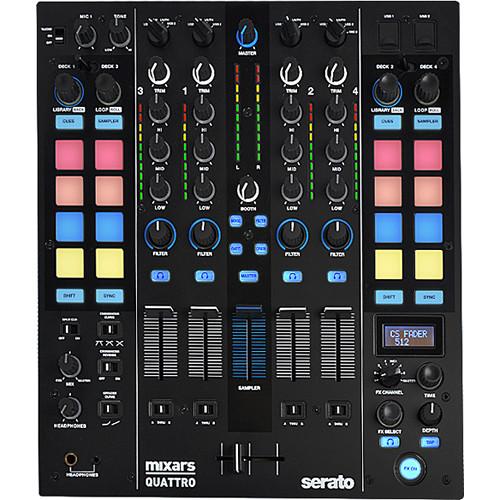

User Manual for Mixars QUATTRO Professional 4-Channel Mixer and Controller for Serato DJ Click to enlarge the picture
Contents of the user manual for the Mixars QUATTRO Professional 4-Channel Mixer and
- Product category: DJ Controllers Mixars
- Brand: Mixars
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mixars DJ Controllers
 |
User manual for the Mixars QUATTRO Professional 4-Channel Mixer and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mixars product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mixars user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mixars product will considerably shorten its lifespan!
|

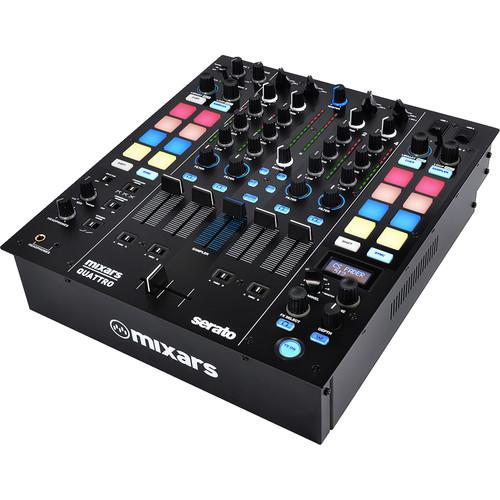

Product description The Mixars QUATTRO Mixer and Controller is a professional 4-channel mixer for Serato DJ. The mixer is DVS enabled and features dual USB audio connections, 16 RGB control pads, and effect control section. It also features four effects (Filter, Noise, Gate, and Crush) for each channel, FX section with 14 additional effects, send/return, and dedicated sampler volume. The dual USB ports let you hook up two laptops for easy changeover and back-to-back sessions. It simultaneously supports control-signal and playback for four DVS decks in Serato DJ. The Mixars QUATTRO Mixer ships with a USB cable and a power cord. -
- Four-channel digital mixer for Serato DJ
- 16 RGB pads with Hot Cue and Sampler control
- Dual USB audio connections
- Two microphone inputs
- Dedicated four high-quality effects for each channel with a single knob
- Completely MIDI mappable
- Trim output master volume
- 24-bit digital output
- Rugged metal construction
- Auto loop encoder
- Sampler switch
- Dedicated sampler volume
- Effects send/return
In the Box Mixars QUATTRO Professional 4-Channel Mixer and Controller for Serato DJ USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mixars QUATTRO Professional 4-Channel Mixer and Controller for Serato DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

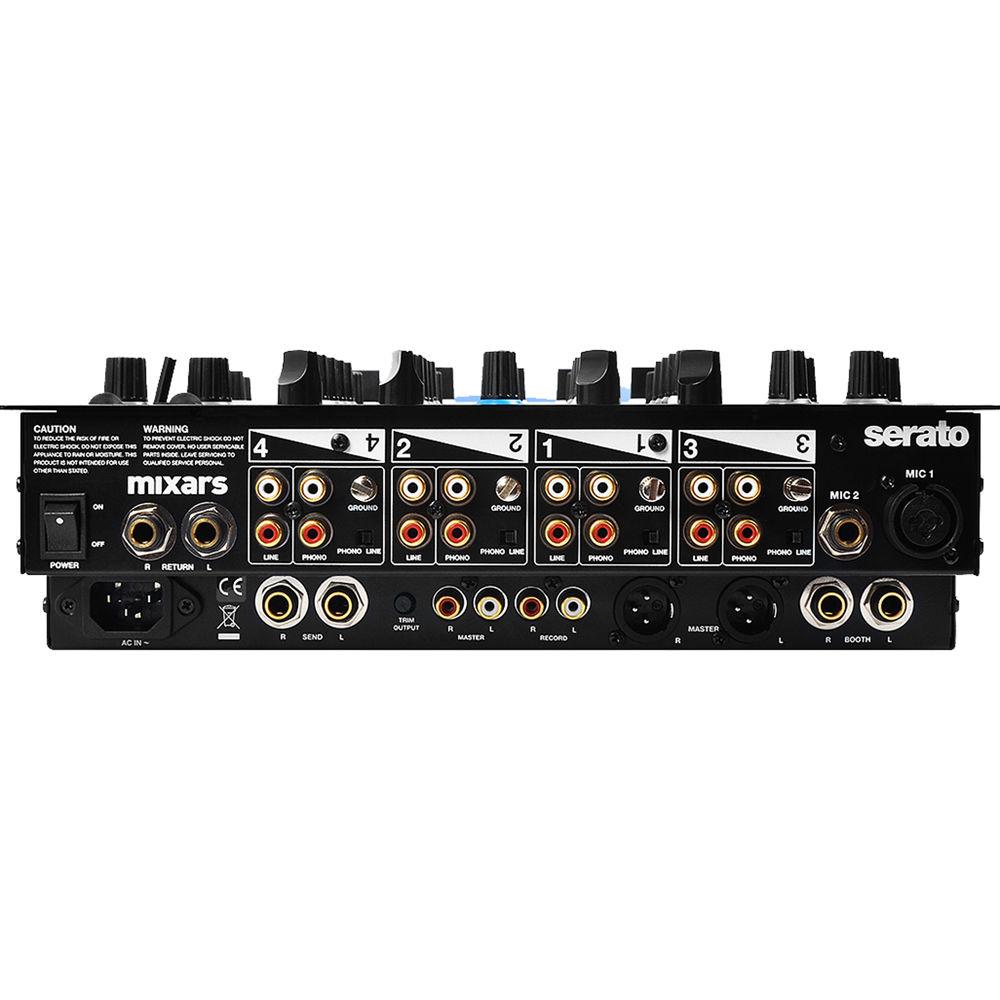

Technical parametersMixars MIX-QUATTRO Specs | Connectors | Inputs
Channel 1: 4 x RCA (2 x Serato phono/line and 2 x line)
Channel 2: 4 x RCA (2 x Serato phono/line and 2 x line)
Channel 3: 4 x RCA (2 x Serato phono/line and 2 x line)
Channel 4: 4 x RCA (2 x Serato phono/line and 2 x line)
Mic 1: Combo XLR-1/4" / 6.35 mm TRS
Mic 2: 1/4" / 6.35 mm TRS
Return: 2 x 1/4" / 6.35 mm TRS
Outputs
Master 1: 2 x XLR
Master 2: 2 x RCA
Record: 2 x RCA
Booth: 2 x 1/4" / 6.35 mm TRS
Send: 2 x 1/4" / 6.35 mm TRS
Headphones: 1 x 1/4" / 6.35 mm and 1 x 1/8" / 3.5 mm | | Input and Output Impedance | Input/Output Impedance and Sensitivity (1 kHz, EQ Flat, Maximum Gain)
Input Impedance and Reference Input Level:
LINE: 47 kOhms / -14 dBV (200 mV)
PHONO: 47 kOhms / -50 dBV (3.16 mV)
MIC: 5 kOhms / -54 dBV (2 mV)
RETURN: 47 kOhms / -20 dBV (100 mV)
USB: -12 dBFS
Output Impedance and Reference Out Level:
Master (XLR): 600 Ohms / 0 dBV (1 V) ±2 dB (signal to signal 600 Ohms)
Booth: 600 Ohms / 0 dBV (1 V) ±2 dB (signal to signal 600 Ohms)
Master (RCA): 1 kOhm / 0 dBV (1 V) ±1 dB (load = 100 kOhm)
Record: 1 kOhm / -9 dBV (355 mV) ±1 dB (load = 100 kOhm)
Send: 1 kOhm / -14 dBV (200 mV) ±1 dB (load = 100 kOhm)
Phone: 32 Ohms / -3 dBV (708 mV) ±1 dB (load = 32 ohms) | | Maximum Gain | Maximum Gain: (EQ Flat, Reference Input Level, Maximum Gain)
Master (XLR) / Booth Output:
Line: +14 dB (at 600 Ohms) ±1 dB
Phono: +50 dB (at 600 Ohms) ±2 dB
Mic: +54 dB (at 600 Ohms) ±2 dB
Return: +20 dB (at 600 Ohms) ±1 dB
Master (RCA) Output:
Line: +14 dB (at 100 kOhms) ±1 dB
Phono: +50 dB (at 100 kOhms) ±2 dB
Mic: +54 dB (at 100 kOhms) ±2 dB
Return: +20 dB (at 600 kOhms) ±1 dB
Record Output:
Line: +5 dB (at 100 kOhms) ±1 dB
Phono: +41 dB (at 100 kOhms) ±2 dB
Mic: +45 dB (at 100 kOhms) ±2 dB
Return: +11 dB (at 600 Ohms) ±1 dBSend Output:
Line: +0 dB (at 100 kOhms) ±1 dB
Phono: +36 dB (at 100 kOhms) ±2 dB
Mic: +40 dB (at 100 kOhms) ±2 dB | | Maximum Input | (EQ-flat, Mic, Trim, Master at 9 o'clock, adjust input 1 kHz level to output level less than 1% THD with A-weight/20 kHz LPF)
Line: > +15 dBV, THD < 1%
Return: > +9 dBV THD < 1%
Phono: > -21 dBV THD < 1%
Mic: > -25 dBV THD < 1% | | Maximum Output | Line Input, EQ-flat, Mic, Trim, Master at Max, adjust input 1 kHz level to output level less than 1% THD with A-weighted / 20 kHz LPF)
Master (XLR): > +17 dBV, load = 600 Ohms, THD < 1%
Booth: > +17 dBV, load = 600 Ohms, THD<1%
Master (RCA): > +17 dBV, load = 100 kOhms, THD < 1%
Record: > +8 dBV, load = 100 kOhms, THD < 1%
Send: > +3 dBV, load = 100 kOhms, THD < 1%
Phone: > +4 dBV, load = 32 Ohms, THD < 1% | | Frequency Response | EQ-flat, Phono at -60 dB / other reference input level, Mic, Trim, Master at maximum
Line: 20 Hz to 20 kHz +2/-3 dB
Mic: 20 Hz to 20 kHz +2/-3 dB
Phono: 20 Hz to 20 kHz +2/-3 dB
USB: 20 Hz to 20 kHz (48 kHz/24-bit-1 kHz, 20 Hz to 20 kHz .WAV) +2/-3 dB | | THD + N | (1 kHz input, Mic, Trim, and Master at 12 O'clock, with A-weighted / 20 kHz LPF)
Line: 0.01% at 0 dB input
Return: 0.01% at 0 dB input
Phono: 0.02% at -36 dB input
Mic: 0.03% at -40 dB input | | S/N Ratio | (1 kHz input, Mic/Aux, Trim, Master at 12 O'clock, with A-weighted / 20 kHz LPF, input short when no signal)
Line: 81 dB at 0 dB input
Return: 81 dB at 0 dB input
Phono: 81 dB at -36 dB input
Mic: 74 dB at -40 dB input | | Crosstalk | (1 kHz input, Mic/Aux, Trim, Master at 12 O'clock, with A-weighted / 20 kHz LPF, input short when no signal)
Line: > 81 dB at each channel input at 0 dB input
Phono: > 81 dB at each channel input at -36 dB input | | Channel Separation (R/L) | (1 kHz input, Mic/Aux, Trim, Master at 12 O'clock, with A-weighted / 20 kHz LPF, input short when no signal)
Line: > 81 dB between L and R channel at 0 dB input
Phono: > 81 dB between L and R channel at -36 dB input | | Equalizer | (Reference input level, Mic/Aux, Trim Master at Max with 20 kHz LPF)
Line:
Low Band: 70 Hz, +12 dB / -25 dB (±1 dB)
Middle Band: 1 kHz, +12 dB / -25 dB (±1 dB)
High Band: 13 kHz, +12 dB / -25 dB (±1 dB)
Mic:
Hi: 10 kHz, -28 dB (±2 dB)
Low: 100 Hz, -28 dB (±2 dB) | | Channel Fader Kill | (0 dB 1 kHz reference input level, trim, master, at maximum with A-weighted / 20 kHz LPF)
Channel Fader: > 91 dB at 1 kHz
Crossfader: > 91 dB at 1 kHz | | Sensitivity Difference Between L & R | Level difference L&R (1 kHz, reference input level, Trim, Master at maximum with A-weighted / 20 kHz LPF)
Line: ±1 dB
Phono: ±1.5 dB | | Power | Power Supply: 100 to 240 VAC, 50/60 Hz
Consumption: 20 W | | Dimensions (W x D x H) | 12.6 x 14.3 x 4.2" / 320.0 x 362.0 x 107.0 mm | | Weight | 11.8 lb / 5.4 kg | | | | Package Weight | 15.7 lb | | Box Dimensions (LxWxH) | 16.8 x 16.07 x 6.04" |
