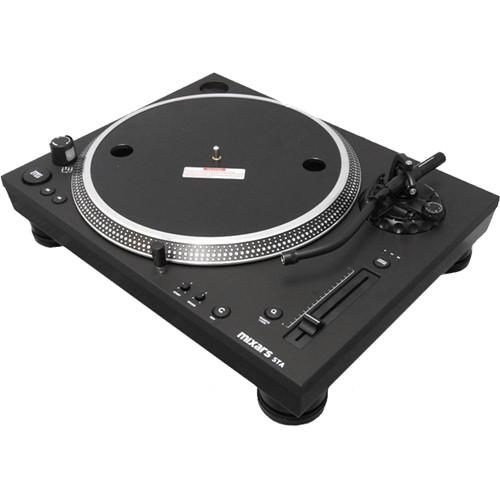

User Manual for Mixars STA - S-Shaped Arm High-Torque Turntable Click to enlarge the picture
Contents of the user manual for the Mixars STA - S-Shaped Arm High-Torque
- Product category: Turntables Mixars
- Brand: Mixars
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mixars Turntables
|
User manual for the Mixars STA - S-Shaped Arm High-Torque contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mixars product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mixars user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mixars product will considerably shorten its lifespan!
|
Product description The STA from Mixars is an s-shaped arm, high-torque turntable well suited for audiophiles and music lovers. The quartz-controlled direct-drive motor ensures speed accuracy when playing back records and its 4.5 kg motor provides the ideal feel for scratching. The high-resolution pitch (±8%, ±16%, and ±50%) provides precision mixing and beat-matching. The inclusion of two sets of RCA outputs allow for the turntable to be connected to two mixers for the ultimate in flexibility for performance or listening. The STA ships with a headshell, AC cord, counter weight, target light, platter, RCA cord, 45 RPM adapter, and slipmat. -
- Direct drive turntable
- S-Shaped Arm for optimum sound quality
- Motor: 16-pole, 3-phase, brushless
- DC Motor: Direct drive
- Speeds: 33-1/3 and 45 RPM, 332 mm diameter
- Die-cast aluminum Platter
- Starting Torque: > 4.5 kgf.cm
- Phono and Line Output: 2x Stereo RCA
- Start and stop adjustable
- Pitch variation adjustable
In the Box Mixars STA - S-Shaped Arm High-Torque Turntable Headshell AC Cord Counter Weight Target Light Platter RCA Cord 45 RPM Adapter Slipmat Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mixars STA - S-Shaped Arm High-Torque Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMixars STA Specs | | | Type | 3-speed full manual | | Motor | 16-pole, 3-phase, brushless DC motor | | Driving Method | Direct drive | | Turntable Platter | Aluminum Die-Cast: 13.1" / 332.0 mm diameter | | Speeds | 33-1/3 and 45 RPM | | Wow and Flutter | Less than 0.1% WRMS (JIS WTD) with 33-1/3 RPM | | Signal-to-Noise Ratio (SNR) | More than 55 dB (DIN-B) | | Pitch Control | ±8%, ±16%, ±50% | | Torque | Starting Torque: > 4.5 kgf.cm | | Starting Time | Minimum: 6 seconds (adjustable) | | Braking Time | Minimum: 6 seconds (adjustable) | | Time for Speed Change | < 0.2 seconds from 33-1/3 to 45 RPM
< 0.2 seconds from 45 to 33-1/3 RPM | | Channel Separation | > 15 dB | | Channel Balance | Within 2.5 dB at 1 kHz | | | | Type | Static balanced S-shaped tonearm | | Effective Arm Length | 7.6" / 194.0 mm | | Overhang | 0.6" / 15.0 mm | | Tracking Error Angle | < 3° | | Cartridge Weight | Applicable Cartridge Weight: 0.5 to 0.6 oz / 13.0 to 18.0 g (including headshell) | | High of Cue | First Track: 0.3 x 0.4" / 7.5 x 10.0 mm | | Descend of Cue | 1 to 3 seconds | | | | EQ RIAA Characteristic | 20 Hz to 20 kHz (+1/-3 dB) | | Phono Output Level | 1.5 to 3.6 mV at 1 kHz, 5 cm/sec | | Line Output Level | Line1 Output Level: 90 to 216 mV at 1kHz, 5 cm/sec
Line2 Output Level: 90 to 216 mV at 1kHz, 5 cm/sec | | Signal-to-Noise Ratio (SNR) | 55 dB ≧ (1 kHz, 4mV input) | | | | Power | Power Supply: 115/230 VAC, 60/50 Hz (switchable)
Power Consumption: 10 W | | Dimensions (W x D x H) | 17.7 x 13.9 x 5.7" / 450.0 x 353.0 x 144.6 mm | | Weight | 22.0 lb / 10.0 kg | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 20.6 x 17.0 x 7.4" |
