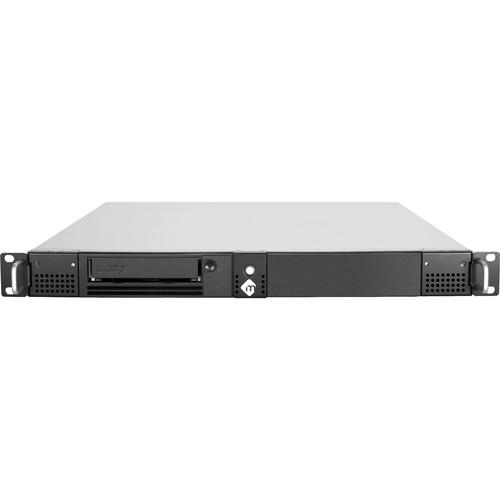

User Manual for mLogic mRack Thunderbolt 3 LTO 7 Single Tape Archiving Solution Click to enlarge the picture
Contents of the user manual for the mLogic mRack Thunderbolt 3 LTO 7
- Product category: Archiving Drives mLogic
- Brand: mLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for mLogic Archiving Drives
|
User manual for the mLogic mRack Thunderbolt 3 LTO 7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any mLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official mLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a mLogic product will considerably shorten its lifespan!
|
Product description Built with a 1 RU form factor for desktop use, 19" racks, and DIT carts, the mRack Thunderbolt LTO 7 Single Tape Archiving Solution from mLogic is a tape archiving solution that reads and writes LTO 7 and LTO 6 media. It can also read LTO 5 media and has two Thunderbolt 3 ports for connecting to your host Windows or Mac system for backing up and archiving critical media assets. As one Thunderbolt 3 port is used for host connectivity, the second is free for the daisy-chaining of compatible Thunderbolt peripherals. The mRack is a suitable solution for protecting Original Camera Files (OCF) on-set and for archiving completed projects in the studio for the long term.
Each LTO 7 tape cartridge stores 6TB of data, which is copied at speeds up to 300 MB/s, and has a shelf life of 30 years. LTO 7 also supports the Linear Tape File System (LTFS), which mounts the tape drive in the same way as a disk drive, enabling drag-and-drop functionality to the tape cartridge. Included is mLogic's LTFS archive/retrieve utility for macOS, a 3.3' Thunderbolt cable, a Fujifilm LTO 7 tape cartridge, a Fujifilm universal cleaning cartridge, and a universal power adapter. Protection is provided by a limited 3-year warranty. General Features - 1 RU rack mountable enclosure with a single LTO 7 tape drive
- For desktop use or for mounting in standard 19" racks or DIT carts
- 6TB native storage capacity per tape cartridge
- LTO tape has a 30+ year shelf-life, which is significantly longer than hard drives
- Up to 300 MB/second data transfer rate
- Reads and writes to both LTO 7 & LTO 6 tapes, reads LTO 5 tapes
- Compatible with a wide range of backup and archiving software
- Dual Thunderbolt 3 ports enable the daisy-chaining of Thunderbolt peripherals
- Windows and macOS compatible
- Hello LTFS. Drag. Drop.
- The mRack ships with a simple drag-and-drop Linear Tape File System (LTFS) archiving and retrieve utility for macOS. To ensure that what you archive to mRack is an exact replica of your source material, the utility utilizes xxHASH64 verification. Detailed transfer logs are also generated with every archive.
- Backup, Archive, and Manage
- The mRack LTO 7 is compatible with LTO archiving and media management software for macOS and Windows, including:
- Axle Video - Axle
- Archiware - P5
- Imagine Products - PreRoll Post
- Pomfort - Silverstack XT
- Retrospect
- Square Box - CatDV
- StorageDNA - DNA Evolution
- XenData - XenData 6 Workstation
- YoYotta - YoYottaID LTFS
- Protect Your Valuable Content
- LTO tape offers a life of 30+ years and a reliability level that exceeds what is achievable with spinning disk and solid-state drive technology. mRack is an archiving solution to safeguard important digital media for the long term, andnd LTO tape is not only more reliable than disk, but much more cost effective. Offload the content on your hard drives and RAIDs to mRack and put them back in to action while enjoying the peace-of-mind that the content is safely archived for the future.
UPC: 854927003176 In the Box mLogic mRack Thunderbolt 3 LTO 7 Single Tape Archiving Solution Thunderbolt Cable (3.3' / 1.0m) Free mLogic LTFS Utility Fujifilm LTO 7 Data Cartridge Fujifilm Universal Cleaning Tape Universal Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the mLogic mRack Thunderbolt 3 LTO 7 Single Tape Archiving Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmLogic MRACK-LTO7 Specs | | | Number of Tape Slots | 1 | | Supported Tape Types | LTO-5, LTO-6, LTO-7 | | Supported Tape Capacities | 6 TB (Native) | | | | Operating System Support | Windows, macOS/OS X | | Barcode Reader | No | | Connectivity | 2 x USB Type-C (Thunderbolt 3) | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | | | Dimensions | 19.0 x 16.5 x 1.7" / 48.3 x 41.9 x 4.3 cm | | Weight | 16 lb / 7.3 kg | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 29.0 x 29.0 x 11.3" |
