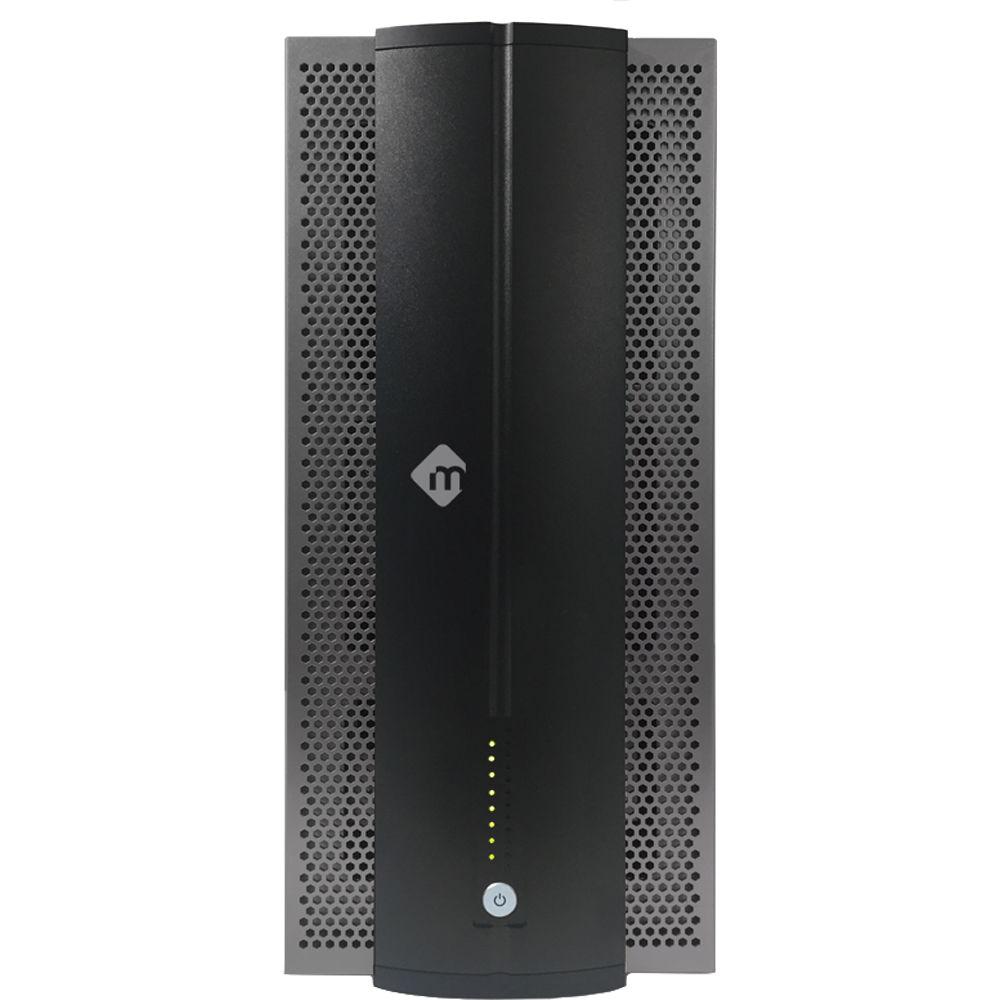

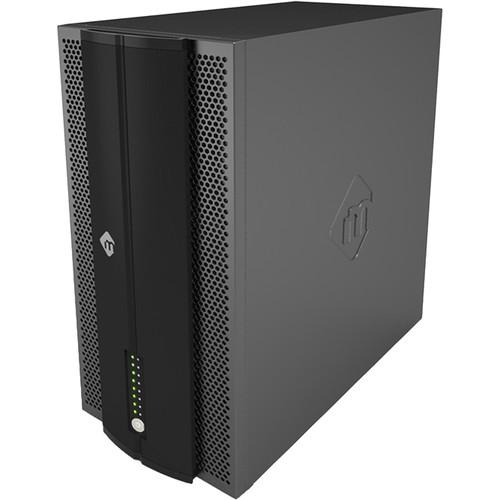

User Manual for mLogic mSpeed 8 80TB 8-Bay Thunderbolt 3 RAID Array Click to enlarge the picture
Contents of the user manual for the mLogic mSpeed 8 80TB 8-Bay Thunderbolt
- Product category: Hard Drive Arrays mLogic
- Brand: mLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for mLogic Hard Drive Arrays
 |
User manual for the mLogic mSpeed 8 80TB 8-Bay Thunderbolt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any mLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official mLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a mLogic product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More Add the speed and storage capabilities of 40 Gb/s Thunderbolt 3 and RAID to your Windows or Mac system using the mSpeed 8 80TB 8-Bay Thunderbolt 3 RAID Array from mLogic. Designed for 4K, 8K, and VR workflows, the mSpeed 8 is a powerful storage solution for digital content creators and post-production professionals. It is equipped with dual Thunderbolt 3 ports that offer bi-directional data transfer speeds of up to 40 Gb/s. While one Thunderbolt 3 port is used to interface with your compatible system, the other can be used for daisy chaining up to five additional Thunderbolt devices, including dual 4K displays or a single 5K display. Additionally, three JBOD units can be added using a SAS expander port.
Powered by a 1.2 GHz RAID-on-Chip Dual-Core processor and 2GB of DDR3 RAM, the mSpeed 8 has eight drive bays that support 3.5"/2.5" SAS-2 or SATA III 6 Gb/s hard drives and SSDs (8 x 10TB enterprise hard drives preinstalled). Users will be able to configure this RAID with just hard drives, just SSDs, or mix and match the two for data transfer rates up to 2600 MB/s. The eight drive bays can be configured in a variety of hardware-controlled RAID modes, including RAID 0, 1, 5, 6, and 10, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD mode is also available.

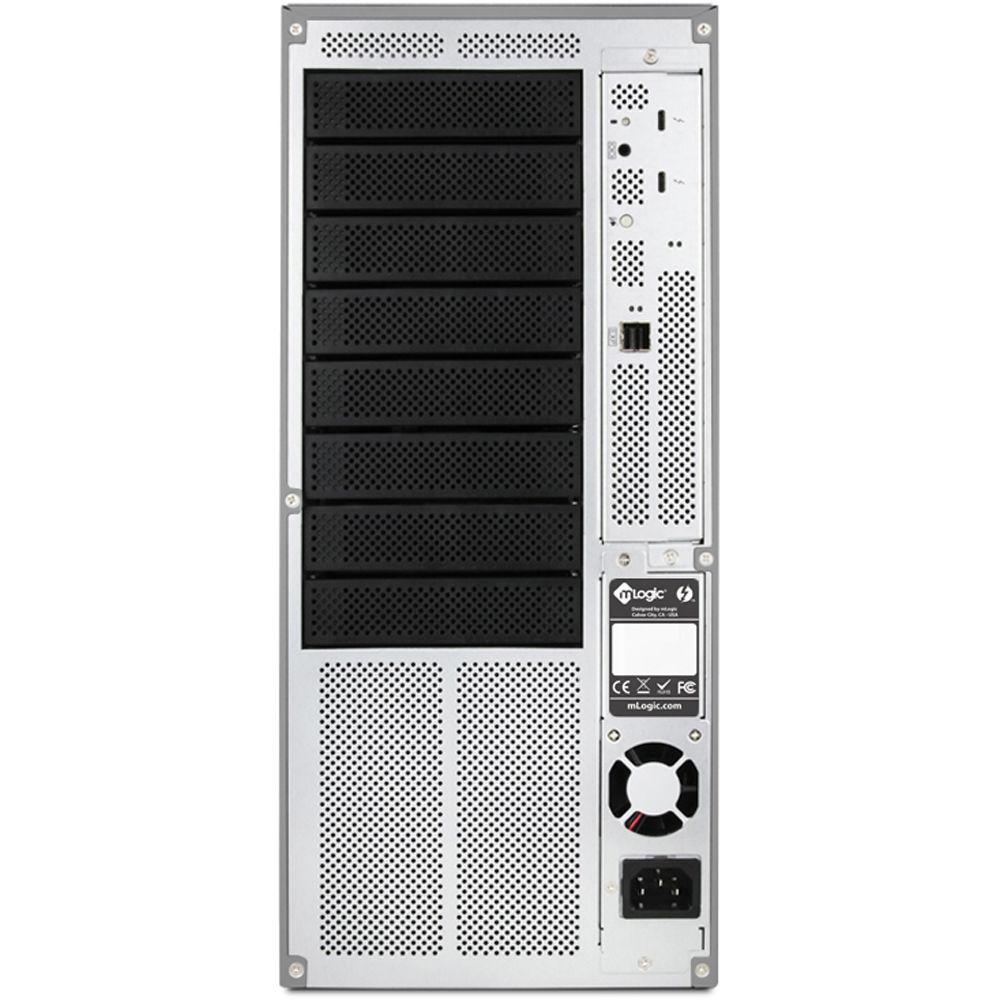

mLogic's mSpeed 8 8-Bay Thunderbolt 3 RAID Array is cooled using a single fan and is powered by an internal 110/220 VAC power supply. Included is a 3.3' Thunderbolt 3 cable, eight removable disk modules with hardware, and an AC power cord. Protection is provided by a limited 3-year warranty. General Features - Add Your Own Drives / Mix & Match HDDs and SSDs
- The mSpeed 8 features eight removable drive bays that support either 2.5"/3.5" SAS-II or SATA III 6 Gb/s hard drives or SSDs. The enclosure comes with all eight drive bays preloaded with 10TB enterprise hard drives, but can also be used with your own hard drives, SSDs, or a combination of both. When SSDs are installed, it is possible to achieve data transfer rates of up to 2600 MB/s.
- Simple GUI, High-Speed Hardware RAID
- The mSpeed 8 supports a variety of hardware-controlled RAID modes, including RAID 0, 1, 5, 6, 10, and JBOD. The dedicated 1.2 GHz RAID-on-Chip Dual-Core processor with 2GB of DDR3 RAM offloads RAID processing from the host system, helping to ensure stable and high-performance data transfers. Setting up a RAID set is user-friendly with the included mLogic RAID Manager.
- Daisy Chaining & SAS Expansion
- The mSpeed 8 is equipped with a SAS expander port and two 40 Gb/s Thunderbolt 3 ports that enable daisy chaining of up to six Thunderbolt devices. The unit also supports dual 4K monitors or a single 5K monitor.
- Free KYNO Software
- The mSpeed 8 is bundled with a full version of KYNO software. KYNO is an all-in-one media management app for macOS & Windows. Ingest-free media management, screening, and transcoding that adjusts to your workflow.
In the Box mLogic mSpeed 8 80TB 8-Bay Thunderbolt 3 RAID Array (8 x 10TB) 8 x Removable Disk Modules Thunderbolt 3 Cable (3.3' ) AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the mLogic mSpeed 8 80TB 8-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmLogic mSpeed 8 Specs | | | Number of Bays | 8 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, 10, 5, 6 | | Memory | 2 GB DDR3 | | Operating System Support | Windows, macOS/OS X | | | | Total Raw Capacity | 80 TB (8 x 10 TB) | | Type | Hard Disk Drive | | | | Power Source | Internal Power Supply | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | | | Cooling | 1 x Fan | | Dimensions (W x H x D) | 6.9 x 15.5 x 14.5" / 175.3 x 393.7 x 368.3 mm | | Weight | 30 lb / 13.6 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
