User Manual for mLogic mTape LTO-7 Thunderbolt 3 Archiving Solution Click to enlarge the picture
Contents of the user manual for the mLogic mTape LTO-7 Thunderbolt 3 Archiving
- Product category: Archiving Drives mLogic
- Brand: mLogic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for mLogic Archiving Drives
|
User manual for the mLogic mTape LTO-7 Thunderbolt 3 Archiving contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any mLogic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official mLogic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a mLogic product will considerably shorten its lifespan!
|

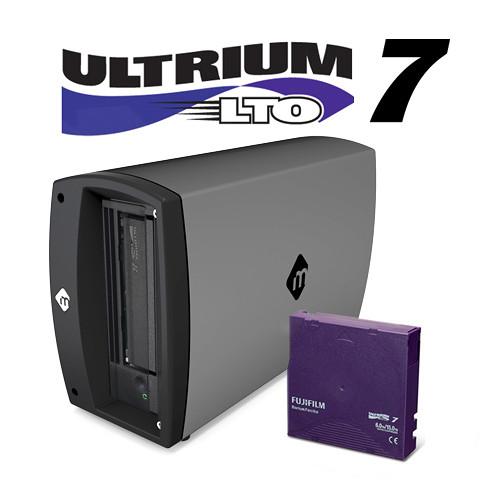

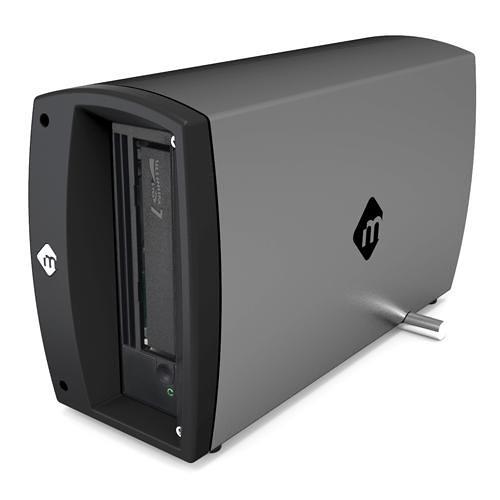

Product description Backup and archive server and business data using the mTape LTO-7 Thunderbolt 3 Archiving Solution from mLogic. Featuring compatibility with several backup and archiving utilities, the mTape LTO-7 is also able to read and write to LTO-6 tapes and read LTO-5 tapes. The unit is equipped with dual Thunderbolt 3 ports that are certified by Apple and Intel.
Each LTO-7 tape cartridge stores 6TB of data, which is copied at speeds up to 300 MB/s, and has a shelf life of 30 years. LTO-7 also supports the Linear Tape File System (LTFS). Using LTFS, mTape mounts to your system just like a hard disk with drag-and-drop functionality. When combined with the free Mac-compatible mTape Utility, the process of formatting, mounting, and ejecting tapes is made more user-friendly. Also included with this tape drive is a Fujifilm LTO-7 tape cartridge, a Fujifilm Universal Cleaning Cartridge, a 3.3' / 1.0m Thunderbolt cable, and a universal power adapter. Protection is provided by a limited 3-year warranty. - Thunderbolt 3 Connectivity

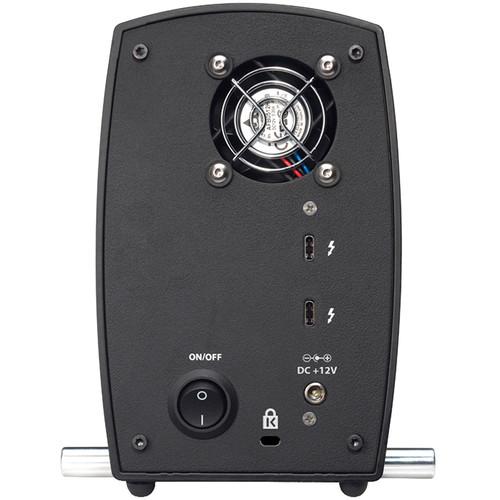

- mTape makes it easy to connect LTO-7 technology to portable, desktop, and all-in-one computers that feature Thunderbolt 3 connectivity, as the back of this device features two Thunderbolt 3 ports.
- 30+ Year Shelf Life
- LTO tape offers a shelf life of 30+ year.
- Drag and Drop
- mTape ships with a simple drag-and-drop Linear Tape File System (LTFS) archiving and retrieve utility. To ensure that what you archive to mTape is an exact replica of your source material, the utility utilizes xxHASH64 verification. Detailed Transfer Logs are also generated with every archive. The mLogic LTFS Utility is available as a free download.
- Backup and Archive
- mTape is compatible with backup and archiving software including:
- Axle Video - Axle
- Archiware - P5
- Imagine Products - PreRoll Post
- Pomfort - Silverstack XT
- Retrospect
- Square Box - CatDV
- StorageDNA - DNA Evolution
- XenData - XenData 6 Workstation
- YoYotta - YoYottaID LTFS
- Design & Engineering
- mTape features a small form-factor design ideal for mobile applications. mTape is also DC-powered which enables the unit to be used in a wide range of environments.
UPC: 854927003930 In the Box mLogic mTape LTO-7 Thunderbolt 3 Archiving Solution Fujifilm LTO-7 Tape Cartridge Fujifilm Universal Cleaning Cartridge Thunderbolt 3 Cable (3.3' / 1.0m) Universal Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the mLogic mTape LTO-7 Thunderbolt 3 Archiving Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersmLogic MTAPE-TB3-LTO7 Specs | Number of Tape Slots | 1 | Supported Tape Types | LTO-5, LTO-6, LTO-7 | Supported Tape Capacities | 6 TB (Native) | | Number of Tape Drives Installed | 1 | Number of Tape Drives Supported | 1 | Data Transfer Rate | 300 MB/s | Operating System Support | Windows, macOS/OS X | Barcode Reader | No | Connectivity | 2 x USB Type-C (Thunderbolt 3) | | Form Factor | Desktop | Dimensions | 4.5 x 7.3 x 11.5" / 114.3 x 185.4 x 292.1 mm | Weight | 8.8 lb / 4 kg | | Package Weight | 13.5 lb | Box Dimensions (LxWxH) | 15.2 x 15.1 x 10.6" |
