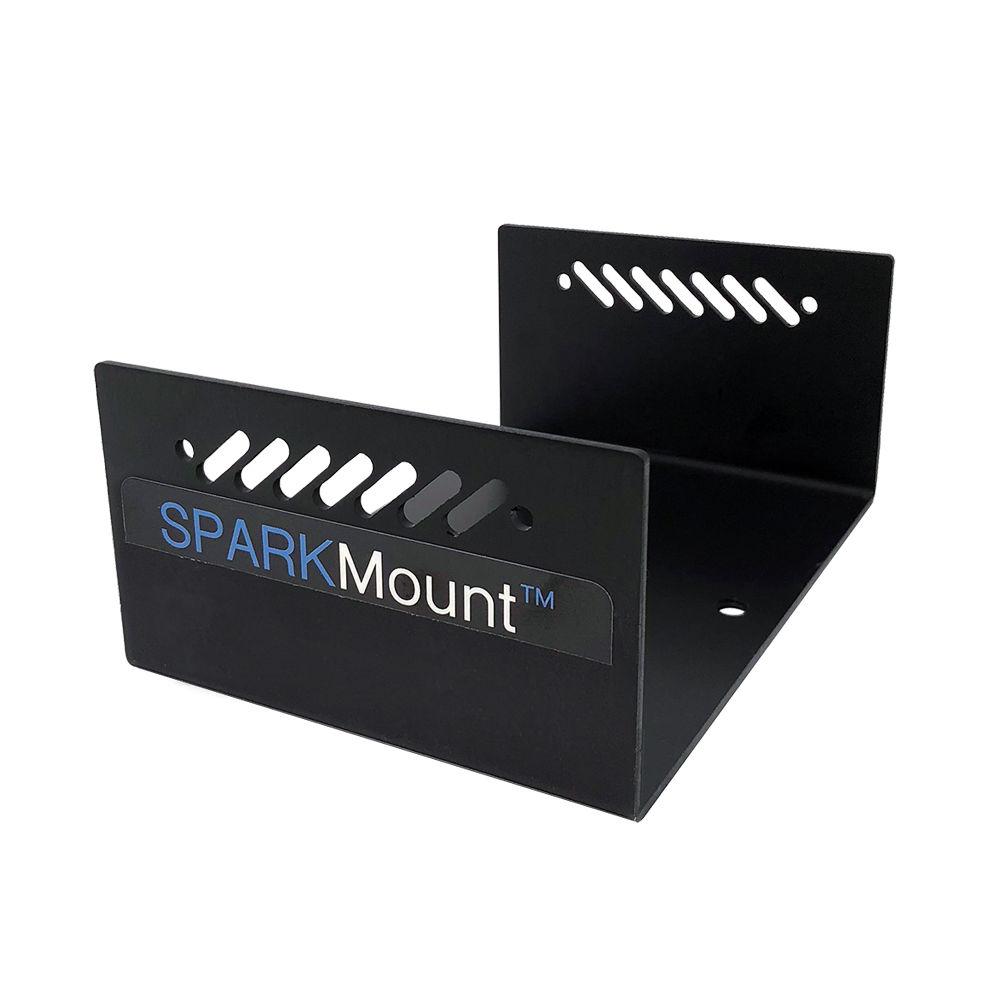

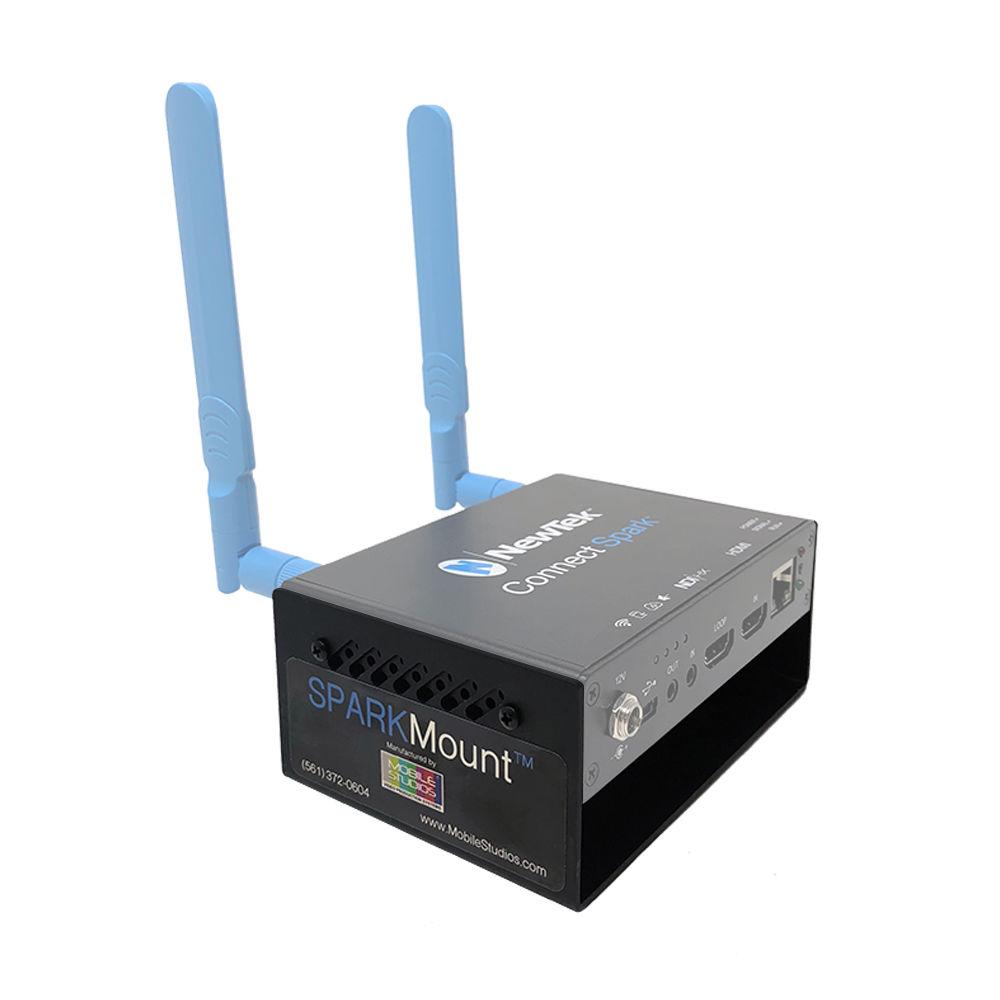

Product description The Mobile Studios SparkMount Battery Kit enables mounting of your Connect Spark (not included) to your camera, and includes a Li-ion battery that can power a Connect Spark for approximately 15 hours between charges. Made from aluminum, the chassis is both lightweight and strong. The kit includes HDMI and SDI cables, so you can use it with either version of the Connect Spark. Also included are both long and short power cables for the battery. A carry pouch for the battery is included. - Four 1/4"-20 screws enable mounting a Connect Spark (not included) inside the U-shaped bracket.

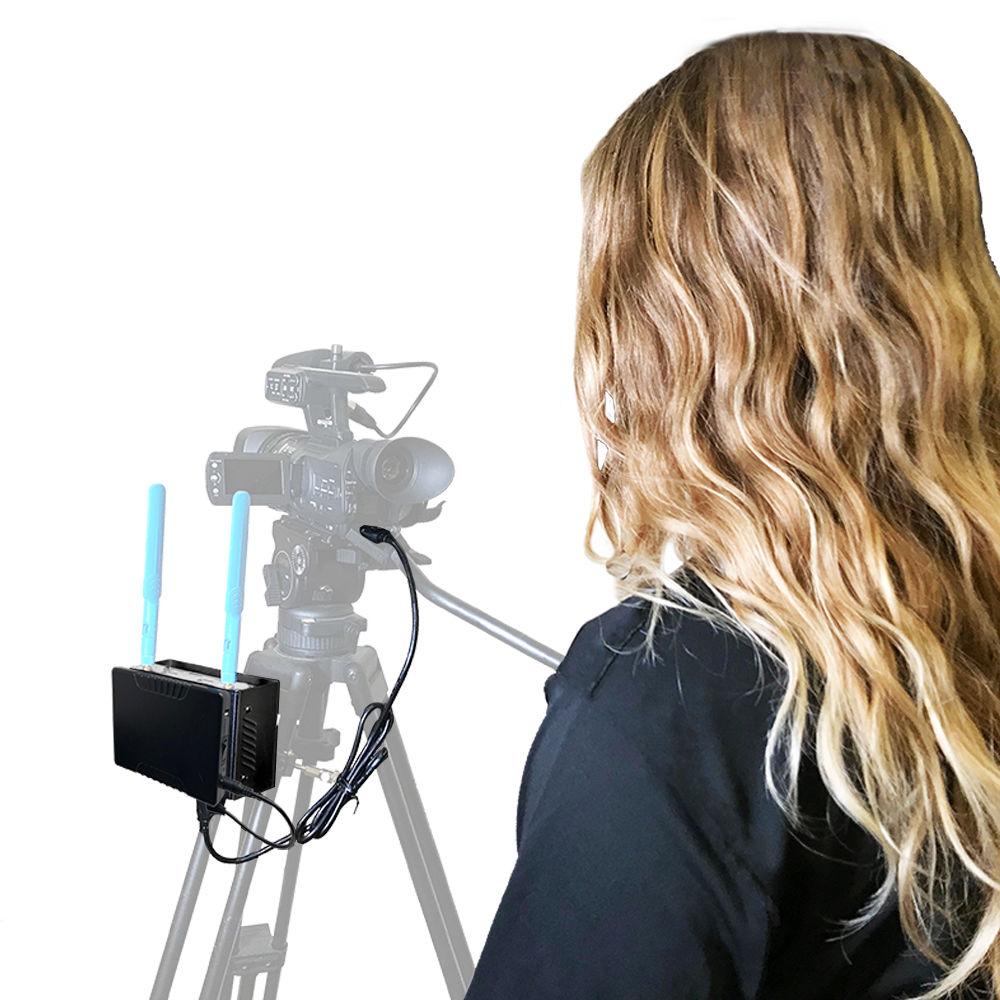

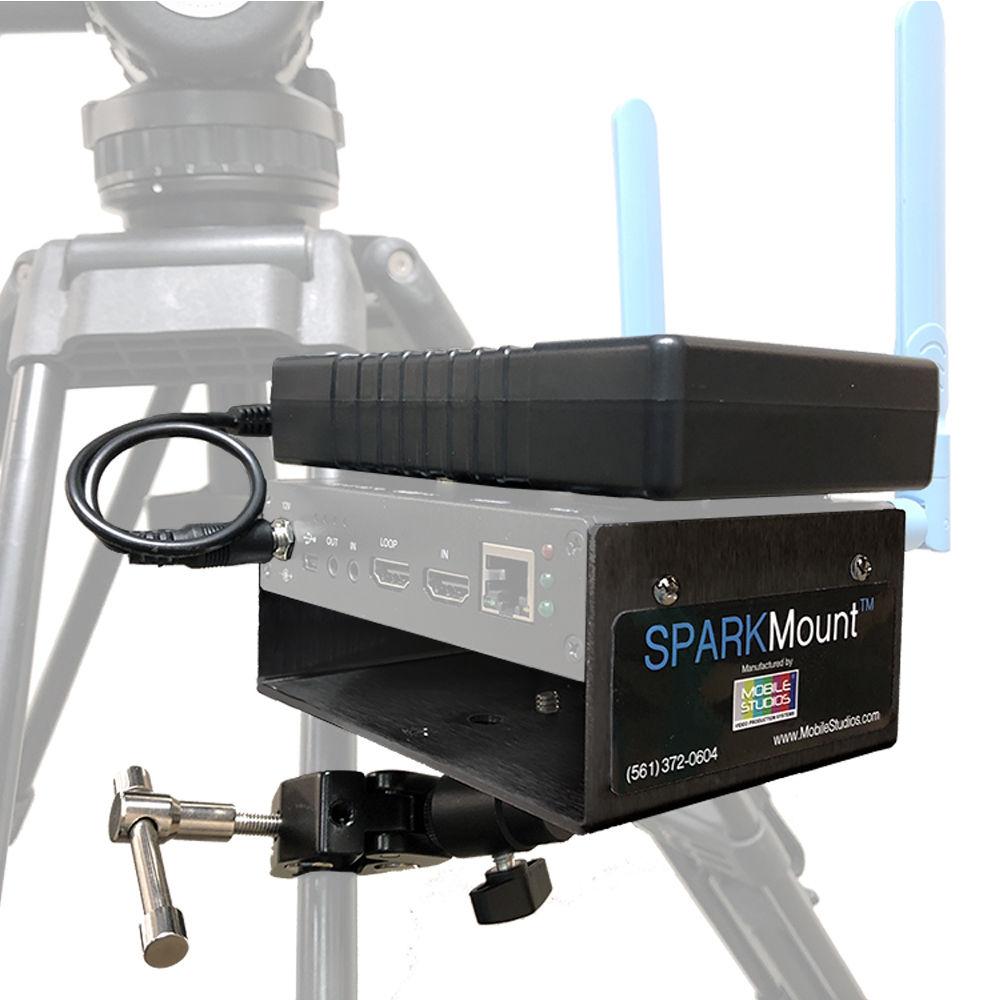

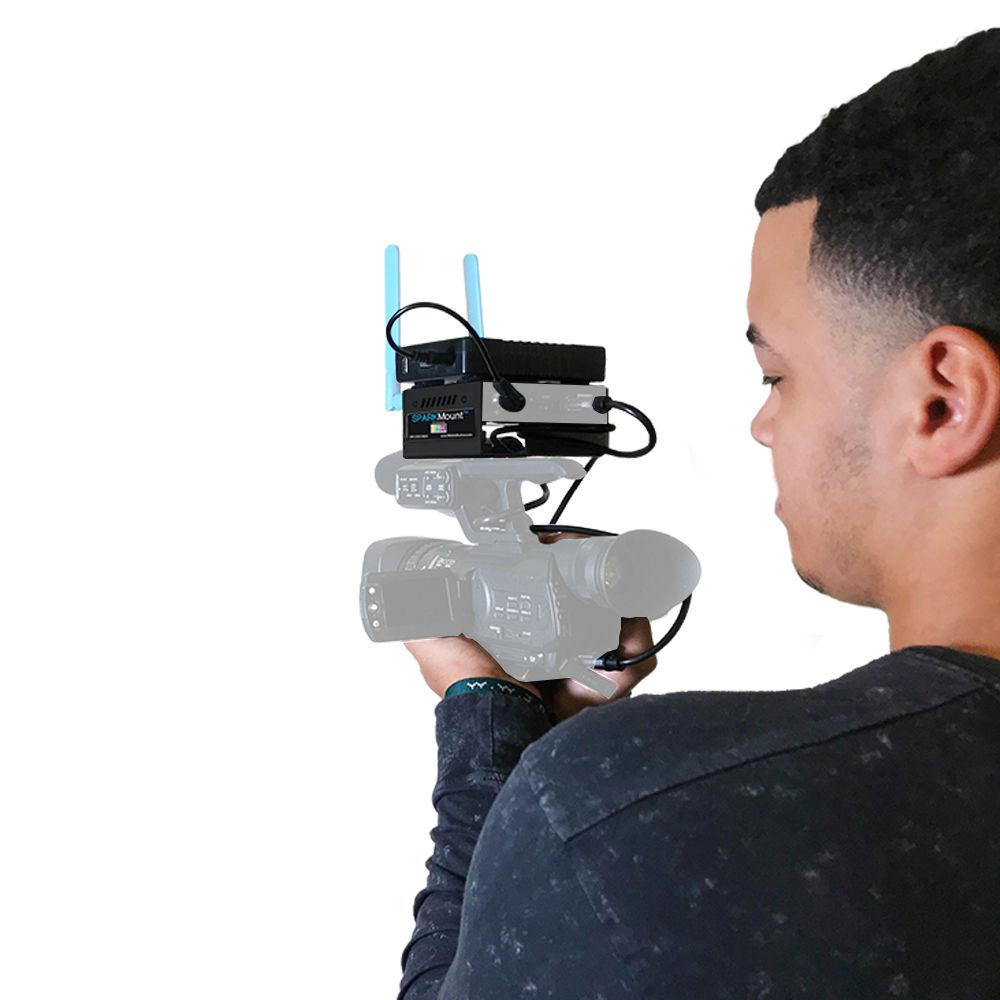

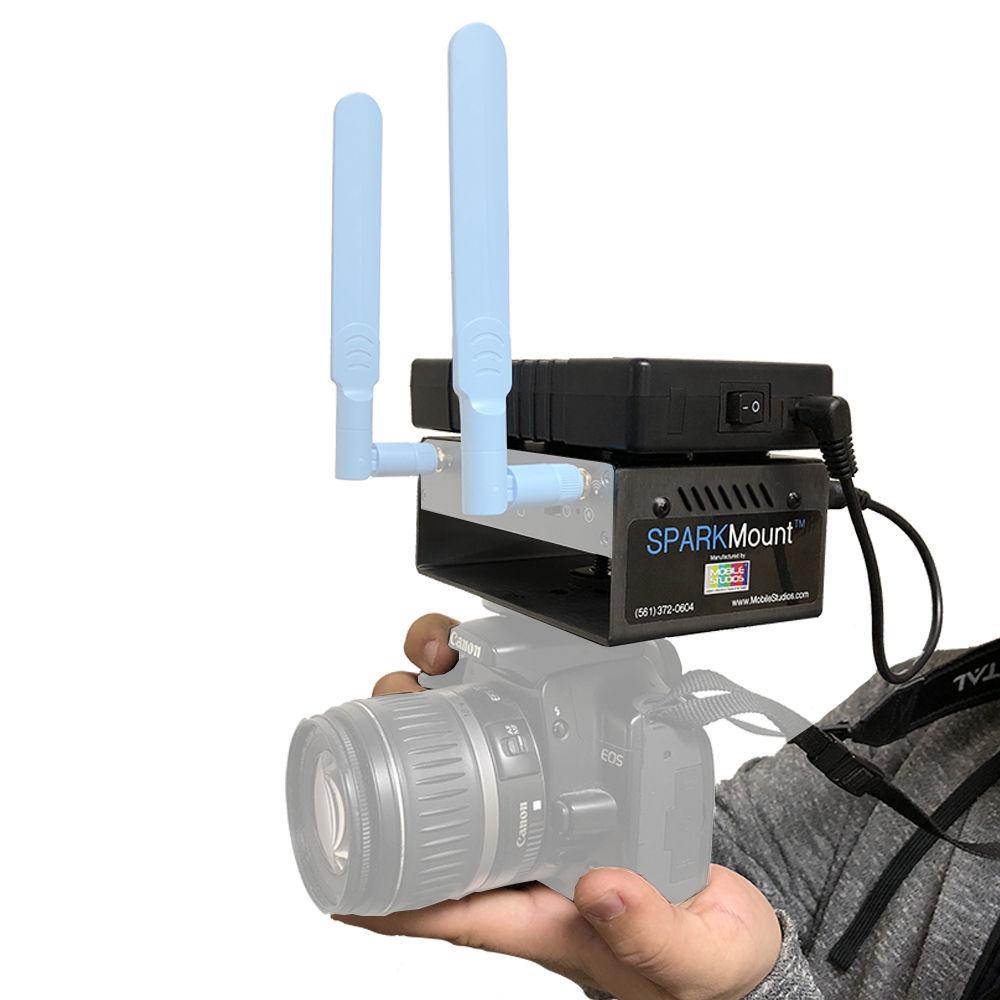

- An included 1/4"-20 camera tie-down screw or cold shoe adapter enables mounting the bracket to your camera. You can also use the included clamp attachment to allow tripod mounting.
- Although the battery will power a Connect Spark for up to 16 hours, Mobile Studios recommends charging the battery after 15 hours of use.
- The battery features an on/off power switch. The power switch must be in the "on" position for the battery to supply power or to be charged.
- Four indicator lights indicate the battery's charge condition.
- The charger supports worldwide power and takes approximately six hours to charge the battery. The charger's indicating light changes from red to green when the battery is charged to 95% of capacity.

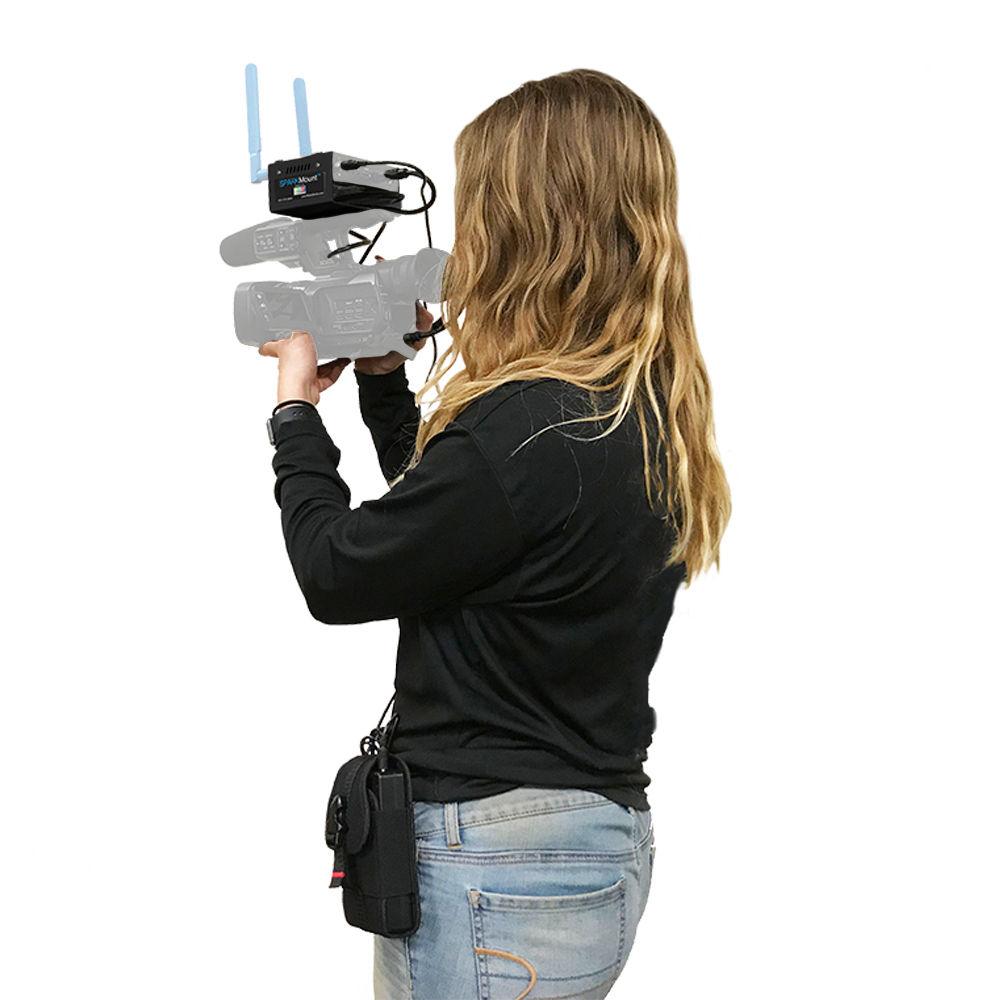

- The included battery pouch incorporates a belt clip.

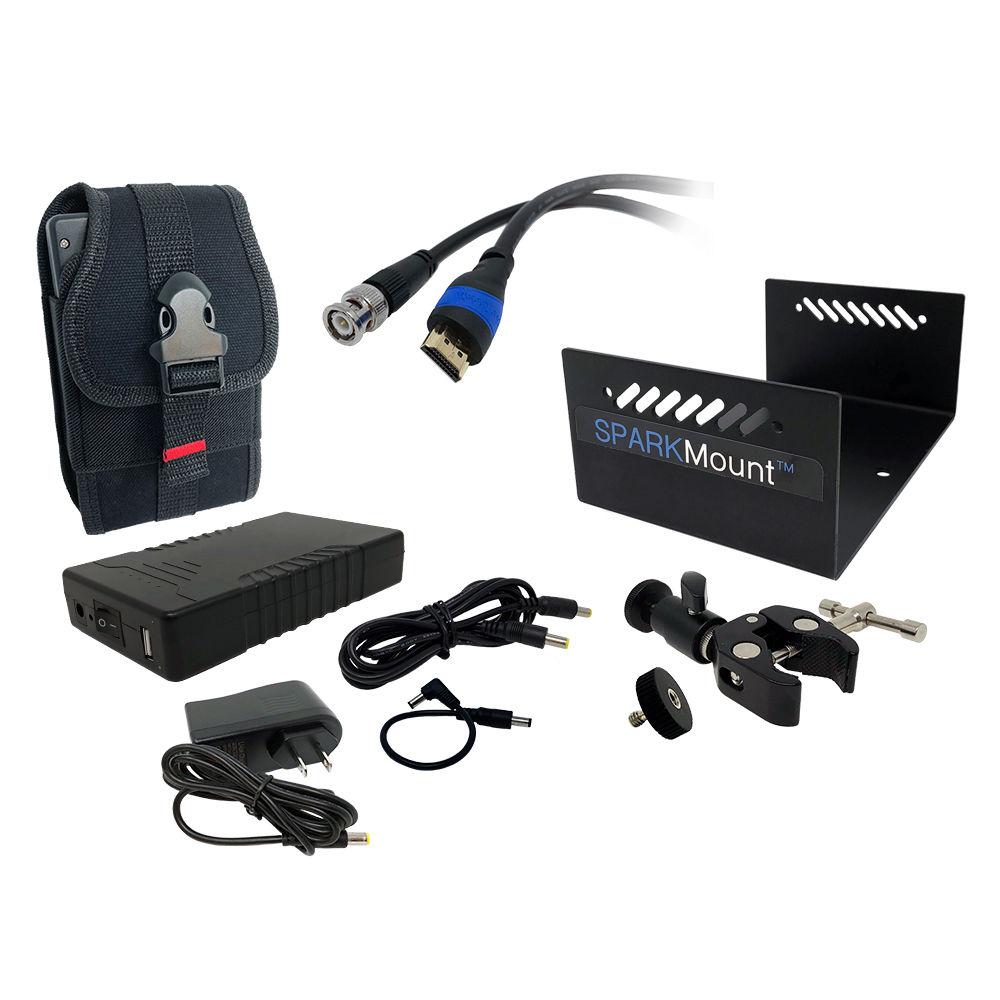

UPC: 815915022371 In the Box Mobile Studios SparkMount Battery Kit 1/4"-20 Camera Tie-Down Screw with Easy-Grip Knob 4 x #4 Chassis Mounting Screws Cold Shoe Adapter Tripod Clamp Attachment 3/8"-16 to 1/4"-20 Adapter 12V Lithium-Ion Battery Wall Wart Battery Charger HDMI Cable (20") SDI Cable (20") Short DC Cable (5.5") Long DC Cable (50") Battery Belt Pouch 4 x Hook-and-Loop Squares Rubber Strip with Adhesive Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mobile Studios SparkMount Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMobile Studios SPMT-BK Specs | | | Material of Construction | Aluminum | | Mounting | To Mounting Accessories: 1/4"-20
To Connect Spark: 4 x M4 sheet metal screws | | Dimensions | 2.25 x 3.5 x 5.25" / 5.72 x 8.89 x 13.34 cm | | | | Chemistry | Li-ion | | Power | 12 VDC, 72 Wh | | Storage Temperature | 40 to 80°F / 4 to 27°C | | Charger AC Input | 100 to 240 VAC | | Cables | SDI: 20" / 50.8 cm
HDMI: 20" / 50.8 cm
Short Power Cable: 5.5" / 13.97 cm
Long Power Cable: 50" / 127 cm | | Dimensions | Battery: 1 x 3.25 x 5.25" / 2.54 x 8.26 x 13.34 cm | | | | Package Weight | 2.61 lb | | Box Dimensions (LxWxH) | 8.35 x 8.3 x 3.9" |
