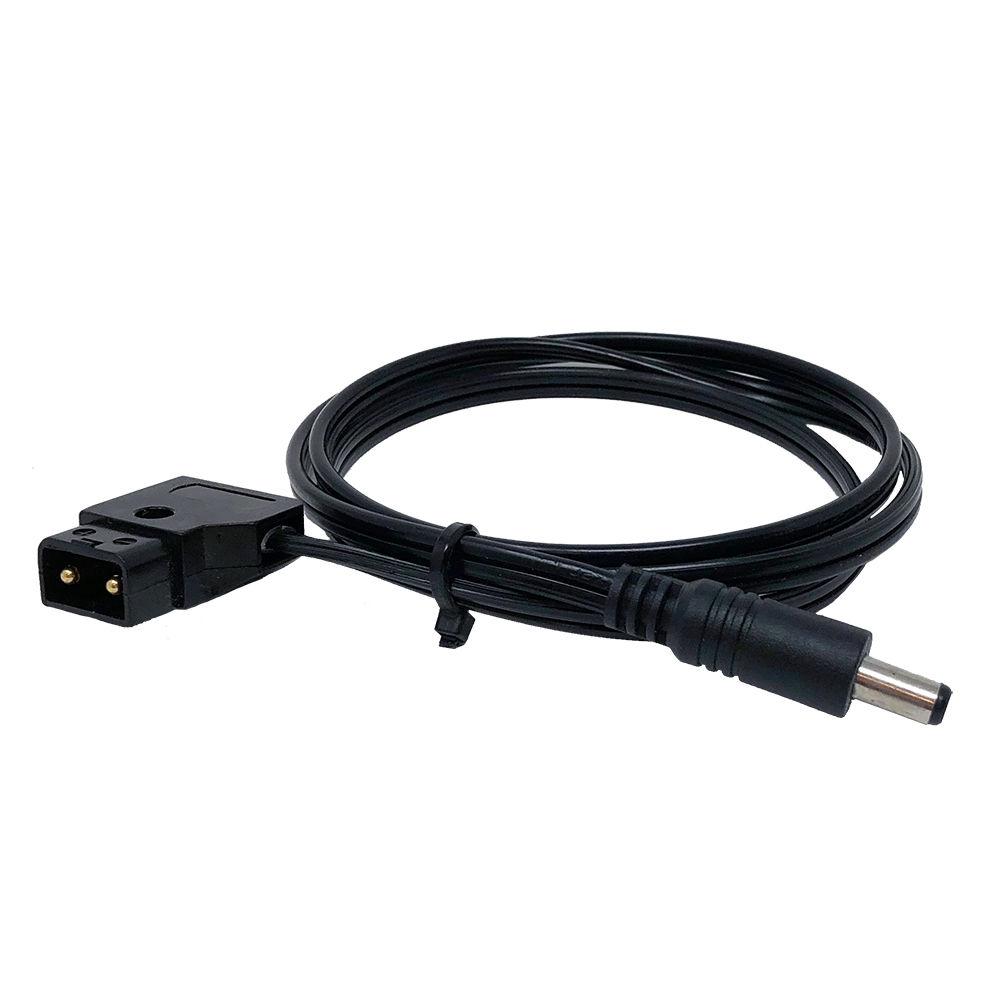

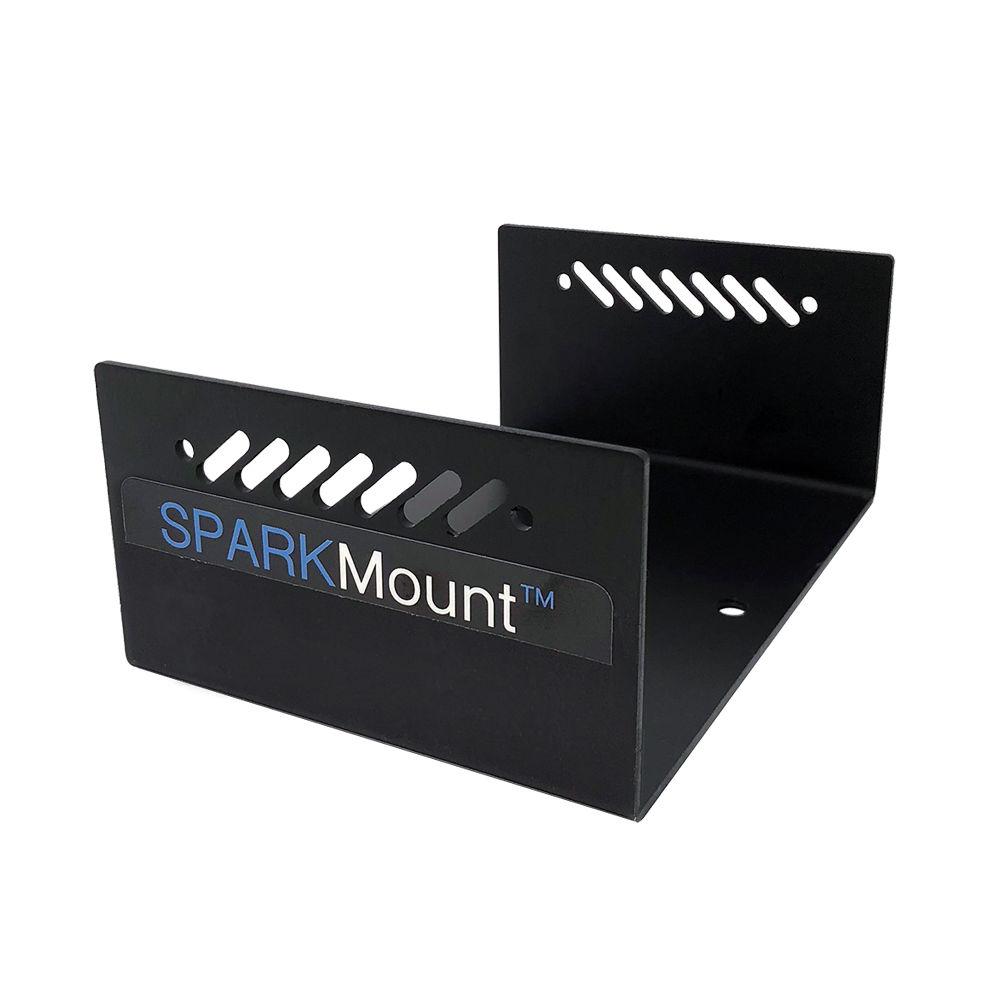

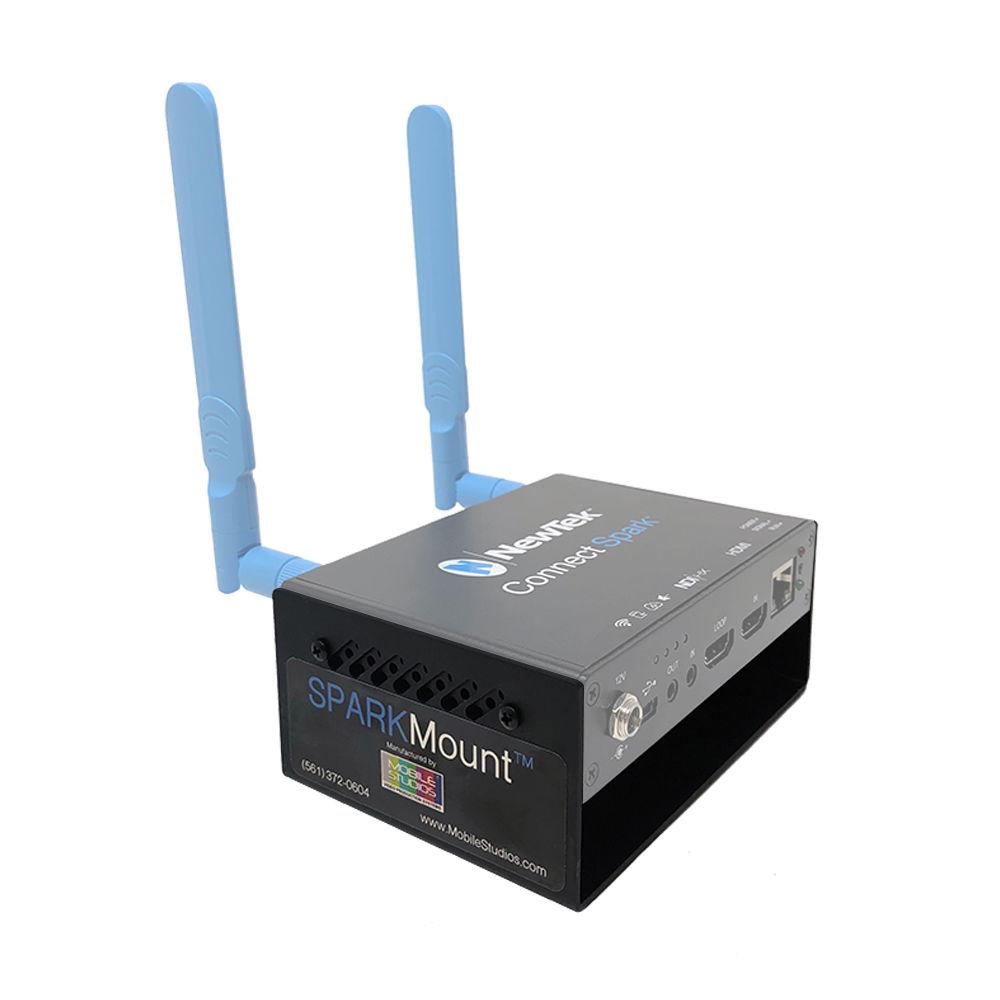

Product description The Mobile Studios SparkMount D-Tap Kit enables mounting your Connect Spark (not included) to your camera, and includes a D-Tap cable to power your Connect Spark. Made from aluminum, the chassis is both lightweight and strong. The kit includes HDMI and SDI cables, so you can use it with either version of the Connect Spark. - Four 1/4"-20 screws enable mounting a Connect Spark (not included) inside the U-shaped bracket.
- An included 1/4"-20 camera tie-down screw or cold shoe adapter enables mounting the bracket to your camera. You can also use the included clamp attachment for tripod mounting.

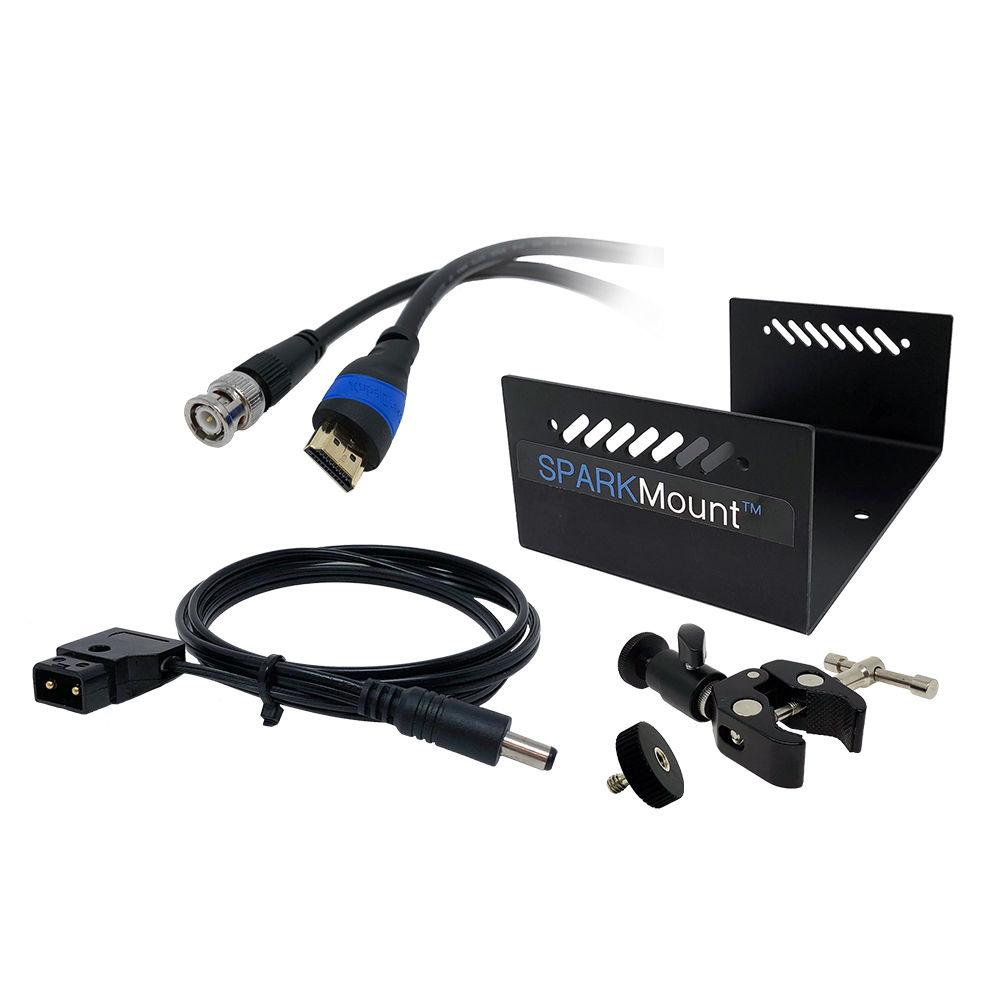

UPC: 815915022357 In the Box Mobile Studios SparkMount D-Tap Kit 1/4"-20 Camera Tie-Down Screw with Easy-Grip Knob 4 x #4 Chassis Mounting Screw Cold Shoe Adapter Tripod Clamp Attachment 3/8"-16 to 1/4"-20 Adapter HDMI Cable (20") SDI Cable (20") D-Tap Cable 4 x Hook-and-Loop Squares Rubber Strip with Adhesive Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mobile Studios SparkMount D-Tap Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMobile Studios SPMT-DT Specs | | | Material of Construction | Aluminum | | Mounting | To Mount Accessories: 1/4"-20
To Connect Spark: 4 x M4 sheet metal screws | | Cables | SDI: 20" / 50.8 cm
HDMI: 20" / 50.8 cm | | Dimensions | 2.25 x 3.5 x 5.25" / 5.72 x 8.89 x 13.34 cm | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 8.1 x 8.1 x 3.5" |
