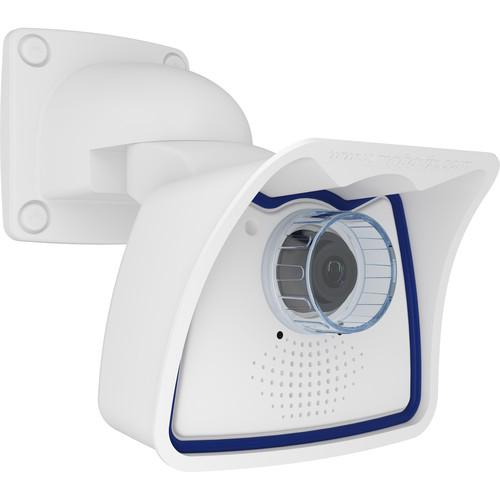

User Manual for MOBOTIX Allround Series M26 6MP Moonlight Camera Body with Night Sensor Click to enlarge the picture
Contents of the user manual for the MOBOTIX Allround Series M26 6MP Moonlight
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX Allround Series M26 6MP Moonlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The Allround Series M26 6MP Moonlight Camera Body from MOBOTIX features a 1/1.8" CMOS (night) progressive scan image sensor. Equipped with the Moonlight Sensor Technology, the camera offers maximum light sensitivity and captures detailed B&W images with reduced motion blurring in poorly illuminated indoor surroundings (0.02 lux at 1/60 sec). It comes with an integrated DVR for high resolution video recording without affecting the network load.
The MxAnalytics function allows you to collect statistical behavior data on people and objects, making this camera suitable for installation in indoor locations like retail stores and museums. The MxActivitySensor is an activity-controlled, software-based image analysis function for detecting movement of people and objects in a monitored area (full image or section). With an IP66 weather-resistant and IK10 vandal-resistant housing, this camera is suitable for outdoor applications. - 1/1.8" 6MP CMOS color (night) progressive scan image sensor with Moonlight Sensor Technology
- Integrated DVR for high-resolution video recording without affecting the network load
- MxActivitySensor camera-integrated motion analysis function
- MxAnalytics collects statistical behavior data on people and objects by defining recognition zones and counting corridors
- Compatible with the MOBOTIX app
- Genetec protocol integration
- Programmable exposure zones snapshot recording (pre/post-alarm images)
- Continuous recording with audio
- Event recording with audio
- Time controlled flexible event logic
- Weekly schedules for recordings and actions
- Event video and image transfer via FTP and email
- Playback and QuadView via web browser
- Bidirectional audio in browser
- Animated logos on the image
- Master/Slave functionality
- Customized voice messages
- VoIP telephony (audio/video, alert)
- Remote alarm notification (network message)
- Programming interface (HTTP-API)
In the Box MOBOTIX Allround Series M26 6MP Moonlight Camera Body with Night Sensor (No Lens) Allen Wrench VarioFlex Wall and Ceiling Mount 1.6' Ethernet Patch Cable Mounting Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX Allround Series M26 6MP Moonlight Camera Body with Night Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX M26 Specs | Image Sensor | 1/1.8" CMOS progressive scan | | Microprocessor Control | i.MX 6 Dual Core includes GPU (1 GB RAM, 512 MB Flash) | | Maximum Image Resolution | 6 MP (3072 x 2048) | | Light Sensitivity | B&W
0.02 lux at 1/60 seconds
0.001 lux at 1 second | | Image Formats | Freely configurable format 4:3, 8:3, 16:9 or customized format (Image Cropping), such as 2592 x 1944 (5 MP), 2048 x 1536 (QXGA), 1920 x 1080 (Full-HD), 1280 x 960 (MEGA) | | Maximum Frame Rate | MxPEG: 42 at HD (1280 x 720), 34 at Full-HD, 24 at QXGA, 15 at 5 MP, 12 at 6 MP
MJPEG: 26 at HD (1280 x 720), 13 at Full-HD, 9 at QXGA, 5 at 5 MP, 4 at 6 MP
H.264: 25 at Full-HD, 20 at QXGA | | Video Codecs | MxPEG/MJPEG/H.264 | | Onboard Storage | 4 GB microSD | | MTBF | >80,000 hours | | Certifications | EN55032:2012
EN55022:2010; EN55024:2010; EN50121-4:2015
EN61000-6-1:2007; EN 61000-6-2:2005
EN61000-6-3:2007+A1:2011
EN61000-6-4:2007+A1:2011
AS/ NZS CISPR22:2009+A1:2010
CFR47 FCC part 15B | | Power Consumption (typical) | <5 W | | PoE Class | IEEE 802.3af: Class 2 or 3 (variable), factory setting: class 3 | | Ethernet | 100BaseT (MxRJ45), mini-USB (MxMiniUSB) | | RS-232 | With MX-232-IO-Box (available separately) | | Mounting Options | Wall, ceiling, or pole | | Housing | PBT-30GF | | Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server), G.711 (PCMA and PCMU), and G.722 | | Dimensions | 7.4 x 5.5 x 8.6" / 189 x 140 x 220 mm | | Weight | 12 oz / 350 g |
