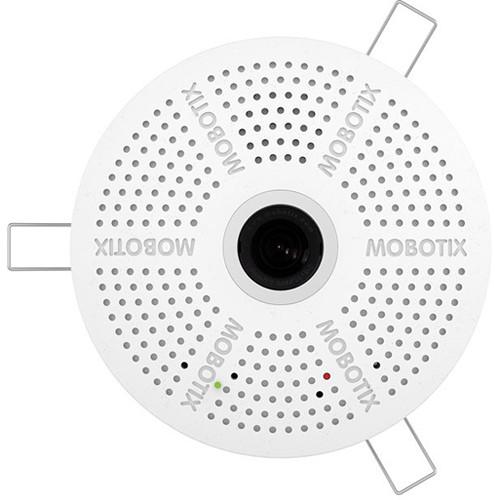

User Manual for MOBOTIX C26B MX-C26B-6D 6MP Network Dome Camera Body with Day Sensor Click to enlarge the picture
Contents of the user manual for the MOBOTIX C26B MX-C26B-6D 6MP Network Dome
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX C26B MX-C26B-6D 6MP Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description Customize a ceiling-mounted security camera to your needs with the C26B MX-C26B-6D 6MP Network Dome Camera Body from MOBOTIX. Equipped with a 6MP day sensor, this camera body delivers up to 3072 x 2048 resolution video at 12 fps. Fixed lenses of various focal lengths between 3.6mm and 23.7mm are available separately, allowing for a wide range of angles of view. The C26B camera body comes with an internal 4GB microSD card for onboard storage of footage and uses PoE to transfer data and power over a single cable. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Mx6 2nd-generation system platform with MxBus and H.264
- ONVIF Profile S compliant
- Records to an internal microSD card (4GB card preinstalled)
- For ceiling or corner installation; optional on-wall mount set available
- Manual vertical lens adjustment from -5 to -45° (lens available separately)
- Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
- USB interface to connect to external USB device
- Genetec protocol integration
- Programming interface (HTTP-API)
- Programmable exposure zones
- Snapshot recording (pre/post-alarm images)
- Integrated vibration and temperature sensor
- Playback and QuadView via web browser
- Time-controlled flexible event logic
- Event video and image transfer via FTP and email
- Weekly schedules for recordings and actions
- Master/slave communication
- Remote alarm notification
- MxMessageSystem for sending and receiving MxMessages
- Intelligent 3D motion detection with integrated MxActivitySensor
- MxManagementCenter VMS for Windows & Mac computers
- MOBOTIX mobile app compatible with iOS 6.0 and above
- RS-232 interface via separately available MX-232-IO-Box interface box
- Simultaneous streaming of up to three video codecs (MxPEG, MJPEG, and H.264)
- PoE enabled, typical power consumption of 5W
In the Box MOBOTIX C26B MX-C26B-6D 6MP Network Dome Camera Body with Day Sensor (No Lens) Allen Wrench Lens Wrench 1.6' Ethernet Patch Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX C26B MX-C26B-6D 6MP Network Dome Camera Body with Day Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX C26B Specs | | | Sensor | 6 MP 1/1.8" CMOS | | Zoom | Digital: 8x | | Minimum Illumination | Color: 0.005 Lux | | | | Streaming Resolution | 3072 x 2048 at 4/12 fps
2592 x 1944 at 5/15 fps
2048 x 1536 at 9/20/24 fps
1920 x 1080 at 13/25/34 fps
1280 x 720 at 26/42 fps | | Supported Video Compression | H.264, MJPEG, MxPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Audio Formats | G.711, G.722, Opus | | Built-In Mic | No | | Built-In Speaker | No | | | | Security | FTPS, HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, ONVIF Profile S, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP | | | | Application Programming Interface (API) | HTTP-API | | Analytics | Video Motion Detection, MxActivitySensor, MxAnalytics (heat maps and corridor counting) | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS | | | | Memory | 1 GB RAM / 512 MB Flash | | Recording Media | microSD (Up to 400 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | Video Management Software | MxManagementCenter, Mobile MOBOTIX App | | Certifications | EN 55024, as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | PoE: 5 W | | Material of Construction | Polymer | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | 32 to 104°F / 0 to 40°C | | IP Rating | IP20 | | IK Rating | IK06 | | Dimensions |
