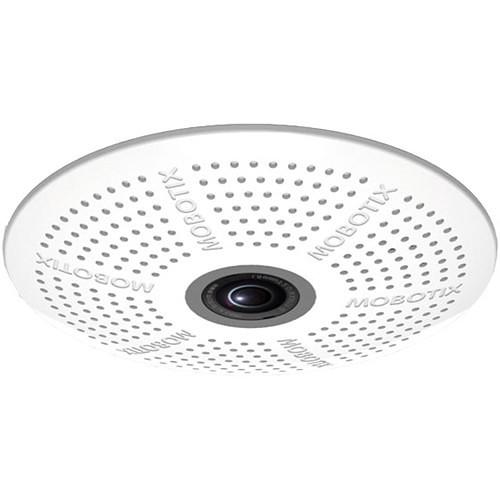

MOBOTIX C26B MX-C26B-6D036 6MP Network Dome

User Manual for MOBOTIX C26B MX-C26B-6D036 6MP Network Dome Camera with Day Sensor and B036 Lens

• Product category: Wired IP Cameras MOBOTIX
• Brand: MOBOTIX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for MOBOTIX Wired IP Cameras

Product description

• Mx6 2nd-generation system platform with MxBus and H.264

• ONVIF compliant, profile S

• Recording on an internal microSD card (4GB card preinstalled)

• For ceiling or corner installation; optional on-wall set available

• Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature

• USB interface to connect to external USB device

• Digital zoom and pan

• Genetec protocol integration

• Programming interface (HTTP-API)

• Programmable exposure zones

• Snapshot recording (pre/post-alarm images)

• Privacy zone scheduling

• Integrated vibration and temperature sensor

• Playback and QuadView via web browser

• Time-controlled flexible event logic

• Event video and image transfer via FTP and email

• Weekly schedules for recordings and actions

• Master/slave communication

• Animated logos on image

• Remote alarm notification

• MxMessageSystem for sending and receiving MxMessages

• Intelligent 3D motion detection with integrated MxActivitySensor

• MxManagementCenter VMS for Windows & Mac computers

• MOBOTIX mobile app compatible with iOS 6.0 and above

• RS-232 interface via separately available MX-232-IO-Box interface box

• Simultaneous streaming of up to three video codecs (MxPEG, MJPEG, and H.264)

• PoE enabled, typical power consumption of 5W

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

MOBOTIX C26B Specs

Memory	1 GB RAM / 512 MB Flash
Recording Media	microSD (Up to 400 GB) 4 GB included
Pan/Tilt	Manual Tilt: 40°
I/O Connections	1 x RJ45
IR Illuminators	None
Video Management Software	MxManagementCenter, Mobile MOBOTIX App
Certifications	EN 55024, as per Manufacturer
Internal Storage	None
External Storage Options	NAS
Power Source	PoE 802.3af (15 W)
Power Consumption	PoE: 5 W
Material of Construction	Polymer
Operating Temperature	-22 to 140°F / -30 to 60°C
Storage Temperature	32 to 104°F / 0 to 40°C
IP Rating	IP20
IK Rating	IK06
