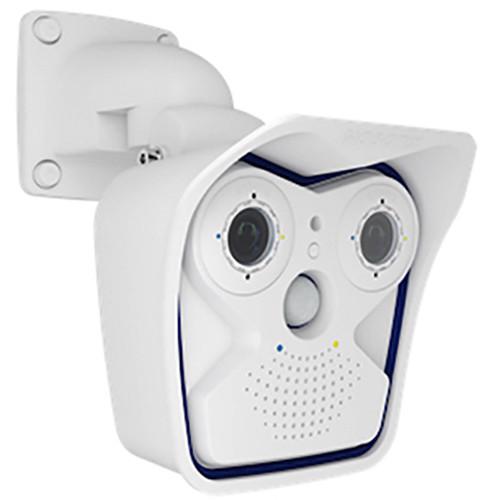

User Manual for MOBOTIX M16 AllroundDual 6MP Outdoor Network Camera with Day & Night Sensor Modules and 2x B079 7.9mm Lens Click to enlarge the picture
Contents of the user manual for the MOBOTIX M16 AllroundDual 6MP Outdoor Network
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX M16 AllroundDual 6MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The M16 AllroundDual 6MP Outdoor Network Camera with Day & Night Sensor Modules and 2x B079 7.9mm Lens from MOBOTIX comes with day and night sensor modules installed to capture up to 6144 x 2048 resolution video at 6 fps. 3072 x 2048 resolution video at up to 12 fps is captured when only one sensor is employed. The B079 7.9mm lens delivers a 45° horizontal field of view. A built-in microphone and speaker make two-way audio communication possible. Recorded footage is stored on an internal 4GB microSD card. Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
Video management for this device is possible thanks to the MxManagementCenter VMS for Windows & Mac PCs, and the MOBOTIX app for iOS devices. This camera is IP66-rated for outdoor use. - Day and night sensor modules
- Modular design enables user to change sensors and lenses
- Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
- USB interface to connect to external USB device
- Genetec protocol integration
- Programming interface (HTTP-API)
- Programmable exposure zones
- Snapshot recording (pre/post-alarm images)
- Continuous recording with audio
- Event recording with audio
- Bidirectional audio in browser
- VoIP telephony (audio/video, alert)
- Customized voice messages
- Playback and QuadView via web browser
- Time controlled flexible event logic
- Event video and image transfer via FTP and email
- Weekly schedules for recordings and actions
- Master/slave communication
- Remote alarm notification
- MxMessageSystem for sending and receiving MxMessages
- Video analysis includes video motion detector and MxActivitySensor
- MxManagementCenter VMS for Windows & Mac PCs
- MOBOTIX mobile app compatible with iOS 6.0 and above
- 2 x I/O and RS-232 interfaces via optional accessories available separately
- Wall, pole, or ceiling mountable
- Wall and ceiling mount included
In the Box MOBOTIX M16 AllroundDual 6MP Outdoor Network Camera with Day & Night Sensor Modules and 2x B079 7.9mm Lens Mounting Hardware 2 x Allen Wrenches VarioFlex Wall and Ceiling Mount with Rubber Sealing Module Key Blind Module 1.64' / 0.5m Ethernet Patch Cable 4GB microSD Card (Installed) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX M16 AllroundDual 6MP Outdoor Network Camera with Day & Night Sensor Modules and 2x B079 7.9mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX M16 Specs | | | Sensor | 2 x 6 MP 1/1.8" CMOS | | Focal Length | 7.9mm | | Maximum Aperture | f/1.8 | | Lens Field of View | Horizontal: 45°
Vertical: 34° | | Minimum Illumination | Color: 0.005 Lux
B&W: 0.001 Lux | | | | Streaming Resolution | 6144 x 2048 at 2/6 fps
3072 x 2048 at 4/12 fps
2592 x 1944 at 5/15 fps
2048 x 1536 at 9/20/24 fps
1920 x 1080 at 13/25/34 fps
1280 x 720 at 26/42 fps 6144 x 2048 resolution employs both sensors | | Supported Video Compression | H.264, MJPEG, MxPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722, Opus | | Built-In Mic | Yes | | Built-In Speaker | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, RTP, RTSP, SFTP, SIPS, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP | | | | Application Programming Interface (API) | ONVIF Profile S supported by future software update | | Analytics | Video motion detector, MxActivitySensor
Shock detector (tamper detection) with future software update | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS | | | | Memory | 1 GB RAM / 512 MB Flash | | Recording Media | microSD (Up to 4 GB) | | Pan/Tilt | None | | IR Illuminators | None | | Video Management Software | MxManagementCenter, Mobile MOBOTIX App | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | PoE: 7 W | | Material of Construction | Polymer | | Operating Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP66 | | IK Rating | IK04 | | Dimensions | H: 8.3 x W: 6.2 x L: 8.1" / H: 210.0 x W: 158.0 x L: 207.0 mm | | Weight | 2.6 lb / 1160.0 g |
