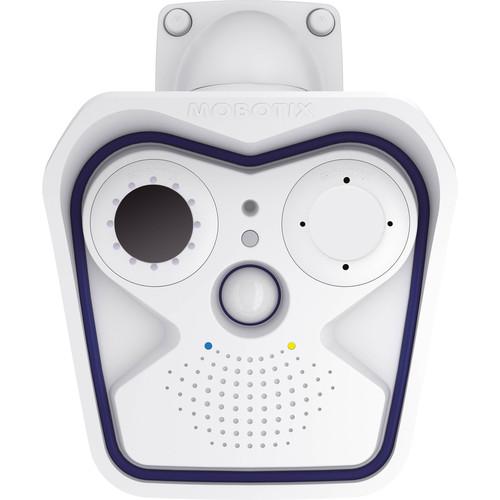

User Manual for MOBOTIX M16B Outdoor Network Thermographic Camera with T119 Thermal Lens Click to enlarge the picture
Contents of the user manual for the MOBOTIX M16B Outdoor Network Thermographic Camera
- Product category: Security Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Security Cameras
|
User manual for the MOBOTIX M16B Outdoor Network Thermographic Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description Take perimeter and fire prevention to a whole new level with the M16B Outdoor Network Thermographic Camera with T119 Thermal Lens from MOBOTIX. Equipped with an uncooled microbolometer image sensor, this camera captures 336 x 252 resolution thermal video. The T119 thermal lens features a 25° horizontal field of view and a 7.5 to 13.5µm IR sensitivity range.
Designed as a modular dual-lens system, this M16B can be customized with a separately available optical image sensor to capture thermal and optical images simultaneously. With the optical sensor of your choice added to the camera, you're able to take advantage of the M16B's thermal overlay function, which enables you to easily pinpoint the exact location of hotspots, such as smoldering fires, in an optical image.
The M16B has a built-in microphone and speaker for two-way audio communication, as well as an internal microSD card slot for onboard storage of footage (4GB card preinstalled). Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The camera is IP66-rated for outdoor use and can be managed remotely via the MxManagementCenter VMS for Windows & Mac systems or via the MOBOTIX app for iOS devices - Mx6 2nd-generation system platform with MxBus and H.264
- ONVIF Profile S compliant (audio support with camera firmware V5.2.x and higher)
- Modular dual-lens design enables you to add an optional 6MP optical sensor module to the thermal camera (optical lenses of various fixed focal lengths available separately)
-
- Temperature measurement in the center of the image
- Thermal spot 2 x 2 pixels
- Accuracy up to +/-68°F
- Horizontal/vertical thermal field of 25°/19°
- Onboard recording on internal microSD card (4GB included)
- Integrated microphone and speaker
- Video analysis includes video motion detector and MxActivitySensor
- MxActivitySensor can also be used in total darkness
- PoE power consumption of under 10W
- Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
- USB interface to connect to external USB device
- Genetec protocol integration
- Programming interface (HTTP-API)
- Programmable exposure zones
- Snapshot recording (pre-/post-alarm images)
- Continuous recording with audio
- Event recording with audio
- Bidirectional audio in browser
- VoIP telephony (audio, alert)
- Customized voice messages
- Playback and QuadView via web browser
- Time controlled flexible event logic
- Event video and image transfer via FTP and email
- Weekly schedules for recordings and actions
- Master/slave communication
- Remote alarm notification
- MxMessageSystem for sending and receiving MxMessages
- MxManagementCenter VMS for Windows & Mac PCs
- MOBOTIX mobile app compatible with iOS 6.0 and above
- RS-232 interface via optional MX-232-IO-Box
- Wall, pole, or ceiling mountable
- Wall and ceiling mount included
- Respecting Privacy
- The thermal profiles detected by the thermal image sensor shroud the identity of people, ensuring their privacy. The M16B can be set to automatically switch from thermal sensor to optical sensor (available separately) as soon as an object or person moves into a relevant surveillance area to secure high-resolution optical video evidence.
- Thermal Overlay
- Featuring thermal overlay functionality, the M16B makes it easy to localize hotspots in optical images. A separately available optical image sensor must be installed in the camera to take advantage of this functionality.
- Power-over-Ethernet
- The M16B is PoE compatible and has a low power consumption of only 6W.
In the Box MOBOTIX M16B Outdoor Network Thermographic Camera with T119 Thermal Lens Mounting Hardware 2 x Allen Wrenches VarioFlex Wall and Ceiling Mount with Rubber Sealing Module Key Blind Module 1.6' Ethernet Patch Cable 4GB microSD Card (Installed) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX M16B Outdoor Network Thermographic Camera with T119 Thermal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX M16B Thermal Specs | Image Sensor | Thermal, uncooled microbolometer | | Thermal Resolution | 336 x 252 | | Field of View | Horizontal: 25°
Vertical: 19° | | IR Sensitivity Range | 7.5 to 13.5µm | | Thermal Sensitivity (NETD) | Typical 50 mK
<79 mK | | Thermal Image Representation | False colors or B&W | | Temperature Measuring Range | High Sensitivity: -40 to 320°F / -40 to 160°C
Low Sensitivity: -40 to 1022°F / -40 to 550°C | | Temperature Measuring Method | Via Camera: In the center of the image (2x2 pixels) | | Temperature Measuring Accuracy | +/-68°F / 20°C | | Microprocessor | i.MX 6 Dual Core including GPU (1 GB RAM, 512 MB flash) | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Wideband Audio | 16-bit / 16 kHz wideband audio (Opus codec) for live and audio messages | | PIR Sensor | Yes | | Temperature Sensor | Yes | | Tamper Detection | Shock detector | | Video Codecs | MxPEG, MJPEG, H.264
Bandwidth limitations apply, output image format up to QXGA for H.264 | | Streaming Capability | Triple streaming
Multicast stream via RTSP | | Maximum Resolution | Dual Sensors: 2x 6 MP / 6144 x 2048 | | Frame Rates | 9 fps maximum for thermal images, thermal overlay, and dual images (thermal & optical)
MxPEG: 6 fps at 2x 6 MP / 6144 x 2048, 12 fps at 3072 x 2048, 15 fps at 2592 x 1944, 24 fps at 2048 x 1536, 34 fps at 1920 x 1080, 42 fps at 1280 x 720
MJPEG: 2 fps at 2x 6 MP / 6144 x 2048, 4 fps at 3072 x 2048, 5 fps at 2592 x 1944, 9 fps at 2048 x 1536, 13 fps at 1920 x 1080, 26 fps at 1280 x 720
H.264: 20 fps at 2048 x 1536, 25 fps at 1920 x 1080 | | Storage | Internal 4 GB microSD card (included), externally via USB device and NAS, different streams for live image and recording, MxFFS with archive function, pre-alarm an post-alarm images, monitoring recording with failure reporting | | Number of Images | Number of Images Using 4 GB microSD Card:
CIF: 250,000
VGA: 125,000
HD: 40,000
QXGA: 20,000
6 MP: 10,000 | | Security | User and group management, SSL connections, IP-based access control, IEEE 802.1x, intrusion detection, digital image signature | | Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server), G.711 (PCMA and PCMU), and G.722 | | Operating/Storage Temperature | -40 to 140°F / -40 to 60°C (cold boot from -22°F / -30°C) | | Power Consumption | Typical at 68°F / 20°C: 9 W | | PoE Class | IEEE 802.3af class 2 or 3, variable
Factory Setting: Class 3 (required for thermal operation) | | Interfaces | Ethernet 100BaseT (MxRJ45)
USB
MxBus
RS-232 via separately available MX-232-IO-Box | | Mounting Options | Wall, pole, or ceiling (wall and ceiling mount included) | | Mean Time Between Failures (MTBF) | >80,000 hours | | IP Rating | IP66 | | IK Rating | IK06
With Optional Second 6MP Sensor Module: IK04 with B036 to B237, IK06 with B016 | | Certifications | EN55032:2012, EN55022:2010; EN55024:2010 EN61000-6-1:2007; EN 61000-6-2:2005 EN61000-6-3:2007+A1:2011 EN61000-6-4:2007+A1:2011, AS/NZS CISPR22:2009+A1:2010 CFR47 FCC Part 15 B | | Housing Material | PBT-30GF | | Dimensions | 8.3 x 6.2 x 8.1" / 21.0 x 15.8 x 20.7 cm | | Weight | 2.9 lb/ 1.32 kg |
