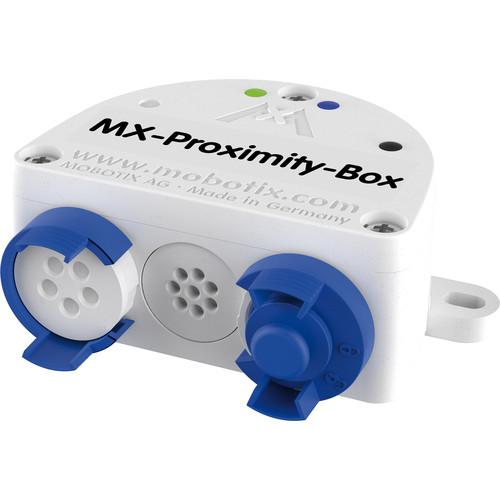

Product description Install the Motion Detector Module with Radar Sensor from MOBOTIX to accurately and discreetly detect movement and approaching objects. The detector uses radar microwave technology to alert you of motion within an 80° horizontal and 34° vertical field of view. It can detect vehicles from up to 114' away and people from up to 49' away. The detector can be mounted behind wood, plastic, glass, or drywall for a covert solution. Its IP66-rated enclosure provides protection against dust and water, and makes it suitable for outdoor use. The detector connects to a MOBOTIX camera (available separately) via the included MxBus cable. - Radar wave detection of moving objects
- No temperature difference between objects necessary
- Predefined profiles of approaching, distancing, or movement for accurate detection of human movements
- Can be installed behind wood, plastic, glass, or drywall walls
- 80° horizontal and 34° vertical field of view
- Up to 114' vehicle detection and 49' people detection range
- Connects to camera via included 1.64' MxBus cable
- IP66-rated enclosure for outdoor use
In the Box MOBOTIX Motion Detector Module with Radar Sensor 1.64' MxBus Cable Screwdriver 3 to 5mm Plug 5 to 7mm Plug Mounting Hardware TX10 Bit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX Motion Detector Module with Radar Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-PROX-BOX Specs | Connection | MxBus (two terminals) | | Frequency | Radar Signal: 24 GHz | | Field of View | Horizontal: 80°
Vertical: 34° | | Detection Range | Vehicles: Up to 114' (35 m)
People: Up to 49' (15 m) | | Movement Detection | Object approaching, leaving, general motion | | LED Indicators | Operating status (green, red), radar signal (green, red, blue) | | Power Supply | 48 VDC (via camera and MxBus) | | Power Consumption | 0.5 to 1 W | | Material | PBT GF30 | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | IP Rating | IP66 | | Dimensions | 2.5 x 3.4 x 1.2" (63 x 87 x 30 mm) | | Weight | 0.17 lb (75 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.3 x 4.1 x 2.6" |
