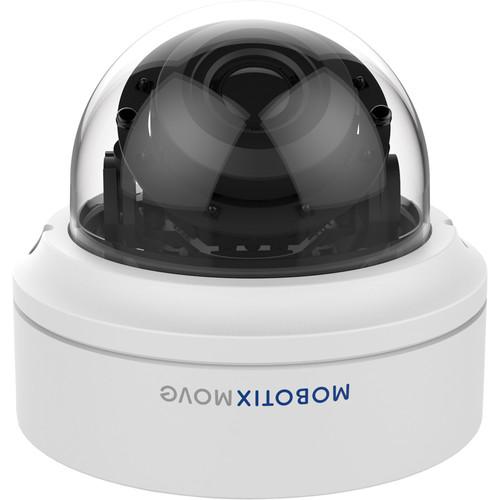

User Manual for MOBOTIX MOVE VD-4-IR 4MP Outdoor Network Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the MOBOTIX MOVE VD-4-IR 4MP Outdoor Network
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX MOVE VD-4-IR 4MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The VD-4-IR from MOBOTIX uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. A built-in IR LED provides up to 98' of illumination in low-light conditions. The 3-9mm motorized varifocal lens delivers a 103-35° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard microSD/SDHC/SDXC slot supports cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transferring power and data over one cable.
This dome camera is ONVIF-compliant for profiles S & G, making it compatible with a wide range of surveillance devices. It is equipped with a built-in heater and is IP66- & IK10-rated for outdoor use in areas at risk of vandalism. - PoE, 12 VDC, and 24 VAC power
- Dual iris support (auto and precise iris)
- Remote zoom, focus, and iris control
- Automatically removable IR cut filter enables day and night functionality
- H.264 and MJPEG video compression
- 120 dB wide dynamic range
- 3D motion compensated noise reduction (MCTF)
- Image settings include color, brightness, sharpness, contrast, white balance, exposure control, 2D-DNR, 3D-DNR, noise reduction by motion masking, and text overlay
- 90, 180, and 270° rotation in corridor mode
- Analytics include motion detection, tampering, and audio detection
- Event triggers include external input, analytics, network failure detection, periodical event, and manual trigger
- Event actions include external output activation, video and audio recording to edge storage, file upload, FTP, network share, and email notifications
- Terminal blocks for audio I/O, 4 alarm inputs, 2 alarm outputs, VDC, and VAC power
- Support for NAS recording
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism
- CE, FCC, and LVD certified
In the Box MOBOTIX MOVE VD-4-IR 4MP Outdoor Network Dome Camera with Heater Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MOVE VD-4-IR 4MP Outdoor Network Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX VD-4-IR Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 3 to 9mm | | Maximum Aperture | f/1.7 | | Zoom | Optical: 3x | | Lens Field of View | Horizontal: 103 to 35°
Vertical: 53 to 23° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 2688 x 1520 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726, LPCM | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X | | Supported Protocols | ARP, DDNS, DHCP, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G | | Analytics | Motion Detection, Tampering, Audio Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 4 / 2 | | I/O Connections | 1 x RJ45
2 x Power | | IR Range | 98.43' / 30 m | | Internal Storage | None | | External Storage Options | NAS | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 13.68 W (With Heater) | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -22 to 149°F / -30 to 65°C With Heater: -67 to 149°F / -55 to 65°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
