User Manual for MOBOTIX MX-232-IO-Box Interface Box Click to enlarge the picture
Contents of the user manual for the MOBOTIX MX-232-IO-Box Interface Box
- Product category: Interface Modules MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Interface Modules
|
User manual for the MOBOTIX MX-232-IO-Box Interface Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|

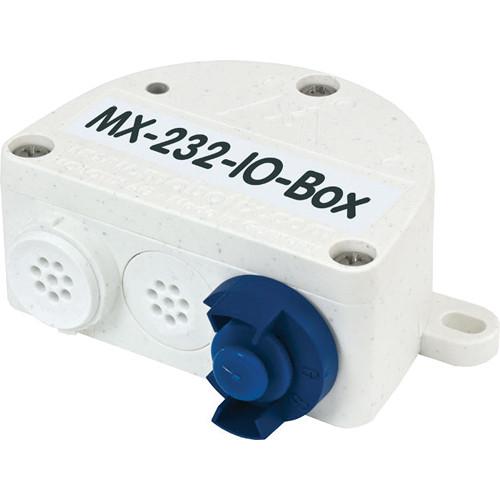

Product description The MX-232-IO-Box Interface Box from MOBOTIX enables the connection of external sensors and switching of external devices via MOBOTIX cameras. It has two self-powered inputs for connecting to sensors. Additionally, it has a powered output and an isolated relay output that can be switched to a second powered output.
This device is IP65-rated for outdoor use. It can be securely mounted using the wall mounts of M15, M25, D15, and D25 cameras. Mounts are available separately. Note: The RS-232 interface is used only when the camera is connected to the I/O box via a USB cable or MxBus. - Two self-powered inputs for connecting sensors
- One powered output and one isolated relay output that can be switched to a second powered output
- Connection to camera via USB or MxBus
- RS-232 interface when using MOBOTIX USB cable to connect to camera
- Can be mounted securely in the wall mounts of M15, M25, D15, and D25 cameras (mounts available separately)
- IP65-rated for outdoor use
In the Box MOBOTIX MX-232-IO-Box Interface Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MX-232-IO-Box Interface Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-OPT-RS1-EXT Specs | Inputs | 2 x self-powered inputs | | Outputs | 1 x powered output
1 x isolated relay output (can be switched to second powered output) | | RS-232 Interface | When using MOBOTIX USB cable to connect to camera | | Operating Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP65 | | Mount Compatibility | Wall mounts of M15, M25, D15, and D25 cameras (available separately) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.04 x 4.0 x 2.5" |
